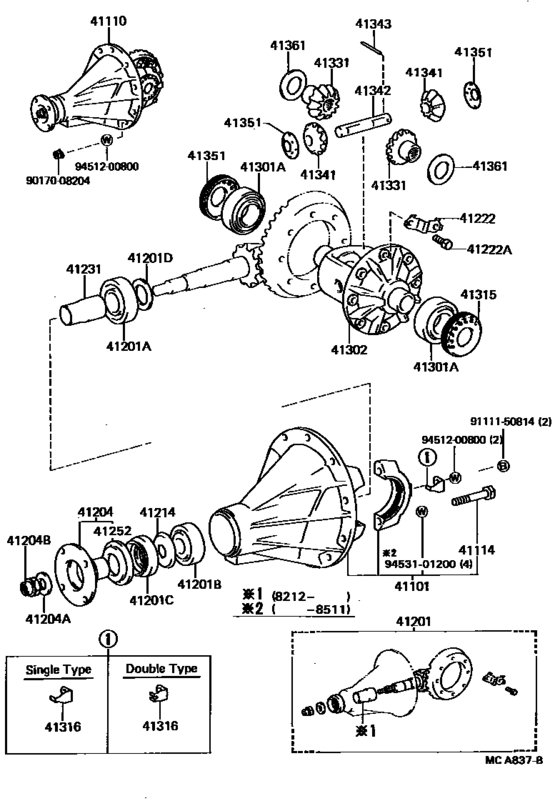

Rear Axle Housing & Differential ([01.1982 - 11.1991] (8201-9111)AT140,CT140,141,ST140) Diagram Toyota CORONA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- ST140
- grade
- GX
- body
- HT
- ENGINE
- 1SU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1982
- To
- 10.1983
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41101
|
41101
41101-20020
Carrier Sub-Assy, Differential, Rear
[01.1982 - 11.1991] AT140,CT140,141,ST140 |
41101-20020 |
— | ||
| replacements | |||||
|
41101
|
41101
41101-20021
Carrier Sub-Assy, Differential, Rear
[01.1982 - 11.1991] AT140,CT140,141,ST140 |
41101-20021 |
— | ||
|
41101
|
41101
41204-48020 Flange Sub-Assy, Rear Drive Pinion Companion, Rear[01.1982 - 11.1991] AT140,CT140,141,ST140 |
41204-48020 |
US $50.01 |
||
|
41110
|
41110
41110-20191
Carrier Assy, Differential, Rear
[01.1982 - 08.1985] ST140..HT..MTM;ST140..SED..5F..EXS *AXC=T302,*FGR=41:11 |
41110-20191 |
— | ||
|
41114
|
41114
90101-12371 Bolt, Rear Differential Bearing Cap[01.1982 - 11.1985] AT14#,CT140,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,STD,SX |
90101-12371 |
US $3.79 |
||
| replacement | |||||
|
41114
|
41114
90105-12114 Bolt (For Rear Differential Carrier)[01.1982 - 11.1985] AT14#,CT140,ST140,TT142..DLX,EXA,EXS,GT,GX,GXA,STD,SX |
90105-12114 |
US $5.12 |
||
|
41201
|
41201
41201-29226 Final Gear Kit, Differential, Rear[01.1982 - 12.1982] ST140..HT..MTM;ST140..SED..5F..EXS *AXC=T302,*FGR=41:11 |
41201-29226 |
US $848.85 |
||
| replacement | |||||
|
41201
|
41201
41201-29227
Final Gear Kit, Differential, Rear
[01.1982 - 12.1982] ST140..HT..MTM;ST140..SED..5F..EXS *AXC=T302,*FGR=41:11 |
41201-29227 |
— | ||
|
41201
|
41201
41201-29227
Final Gear Kit, Differential, Rear
[12.1982 - 08.1985] ST140..HT..MTM;ST140..SED..5F..EXS ＊ＦＧＲ＝４１：１１,*AXC=T302,*FGR=41:11 |
41201-29227 |
— | ||
|
41201A
|
41201A
90368-34049
Bearing (For Rear Drive Pinion Rear)
[01.1982 - 11.1991] AT14#,CT140,141,ST140 |
90368-34049 |
— | ||
| replacement | |||||
|
41201A
|
41201A
90366-34019 Bearing (For Rear Drive Pinion Rear)[01.1982 - 11.1991] AT14#,CT140,141,ST140 |
90366-34019 |
from US $37.39 |
||
|
41201B
|
41201B
90368-30002 Bearing (For Rear Drive Pinion Front)[01.1982 - 11.1991] AT14#,CT140,141,ST140 |
90368-30002 |
from US $33.14 |
||
|
41201C
|
41201C
90311-38015 Seal, Oil (For Rear Differential Carrier)[01.1982 - 11.1991] AT140,CT140,141,ST140 |
90311-38015 |
from US $5.12 |
||
|
41201D
|
41201D
90201-35396 Washer, Plate (For Rear Differential Drive Pinion)[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ＝２．３６，マーク ０５,T=2.35-2.37 |
90201-35396 |
US $4.80 |
||
|
41201D
|
41201D
90201-35397 Washer, Plate (For Rear Differential Drive Pinion)[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ＝２．３９，マーク ０６,T=2.38-2.40 |
90201-35397 |
US $4.80 |
||
|
41201D
|
41201D
90201-35398 Washer, Plate (For Rear Differential Drive Pinion)[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ＝２．４２，マーク ０７,T=2.41-2.43 |
90201-35398 |
US $4.80 |
||
|
41201D
|
41201D
90201-35399 Washer, Plate (For Rear Differential Drive Pinion)[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ＝２．４３，マーク ０８,T=2.44-2.46 |
90201-35399 |
US $4.80 |
||
|
41201D
|
41201D
90201-35400 Washer, Plate (For Rear Differential Drive Pinion)[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ＝２．４８，マーク ０９,T=2.47-2.49 |
90201-35400 |
US $4.80 |
||
|
41201D
|
41201D
90201-35401 Washer, Plate (For Rear Differential Drive Pinion)[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ＝２．５１，マーク １０,T=2.50-2.52 |
90201-35401 |
US $4.80 |
||
|
41201D
|
41201D
90201-35402 Washer, Plate (For Rear Differential Drive Pinion)[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ＝２．５４，マーク １１,T=2.53-2.55 |
90201-35402 |
US $3.84 |
||
|
41201D
|
41201D
90201-35403 Washer, Plate (For Rear Differential Drive Pinion)[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ＝２．５７，マーク １２,T=2.56-2.58 |
90201-35403 |
US $4.80 |
||
|
41201D
|
41201D
90201-35404 Washer, Plate (For Rear Differential Drive Pinion)[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ＝２．６０，マーク １３,T=2.59-2.61 |
90201-35404 |
US $4.80 |
||
|
41201D
|
41201D
90201-35435
Washer, Plate (For Rear Differential Drive Pinion)
[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ＝２．２７，マーク ０２,T=2.26-2.28 |
90201-35435 |
— | ||
| replacements | |||||
|
41201D
|
41201D
90201-35516 Washer, Plate (For Rear Differential Drive Pinion)[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ＝２．２７，マーク ０２,T=2.26-2.28 |
90201-35516 |
from US $1.92 |
||
|
41201D
|
41201D
90201-35517 Washer, Plate (For Rear Differential Drive Pinion)[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ＝２．２７，マーク ０２,T=2.26-2.28 |
90201-35517 |
from US $1.92 |
||
|
41201D
|
41201D
90201-35436
Washer, Plate (For Rear Differential Drive Pinion)
[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ＝２．３０，マーク ０３,T=2.29-2.31 |
90201-35436 |
— | ||
| replacement | |||||
|
41201D
|
41201D
90201-35517 Washer, Plate (For Rear Differential Drive Pinion)[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ＝２．３０，マーク ０３,T=2.29-2.31 |
90201-35517 |
from US $1.92 |
||
|
41201D
|
41201D
90201-35437
Washer, Plate (For Rear Differential Drive Pinion)
[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ＝２．３３，マーク ０４,T=2.32-2.34 |
90201-35437 |
— | ||
| replacement | |||||
|
41201D
|
41201D
90201-35518 Washer, Plate (For Rear Differential Drive Pinion)[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ＝２．３３，マーク ０４,T=2.32-2.34 |
90201-35518 |
from US $1.92 |
||
|
41201D
|
41201D
90201-35438 Washer, Plate (For Rear Differential Drive Pinion)[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ＝２．６３，マーク １４,T=2.62-2.64 |
90201-35438 |
US $4.80 |
||
|
41201D
|
41201D
90201-35439 Washer, Plate (For Rear Differential Drive Pinion)[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ＝２．６６，マーク １５,T=2.65-2.67 |
90201-35439 |
US $4.80 |
||
|
41201D
|
41201D
90201-35440 Washer, Plate (For Rear Differential Drive Pinion)[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 厚さ＝２．６９，マーク １６,T=2.68-2.70 |
90201-35440 |
US $4.80 |
||
|
41204
|
41204
41204-20020 Flange Sub-Assy, Rear Drive Pinion Companion, Rear[01.1982 - 11.1991] AT14#,CT140,141,ST140 |
41204-20020 |
US $223.20 |
||
|
41204A
|
41204A
90201-18485 Washer, Plate (For Transfer Gear)[01.1982 - 08.1993] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
90201-18485 |
US $5.28 |
||
|
41204B
|
41204B
90179-18001 Nut (For Transfer Gear)[01.1982 - 08.1993] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 ＃ |
90179-18001 |
from US $4 |
||
|
41214
|
41214
41214-20020 Slinger, Rear Differential Drive Pinion Oil[01.1982 - 11.1991] AT14#,CT140,141,ST140 |
41214-20020 |
US $9.92 |
||
|
41222
|
41222
41222-30030 Plate, Rear Differential Ring Gear Set Bolt Lock[01.1982 - 11.1985] AT14#,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX |
41222-30030 |
US $3.20 |
||
| replacement | |||||
|
41222
|
41222
41222-28010 Plate, Rear Differential Ring Gear Set Bolt Lock[01.1982 - 11.1985] AT14#,CT14#,KT147,ST140,TT14#,YT140..DLX,EXA,EXS,GT,GX,GXA,STD,SX |
41222-28010 |
US $2.08 |
||
|
41222A
|
41222A
90101-11353 Bolt (For Rear Differential Ring Gear Set)[01.1982 - 04.1998] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
90101-11353 |
from US $0.90 |
||
|
41231
|
41231
41231-22010 Spacer, Rear Differential Drive Pinion Bearing[01.1982 - 11.1991] AT14#,CT140,141,RT141,ST140,TT142 |
41231-22010 |
from US $9.28 |
||
|
41252
|
41252
41252-22010
Deflector, Dust (For Rear Differential)
[01.1982 - 11.1991] AT14#,CT140,141,ST140 |
41252-22010 |
— | ||
|
41301A
|
41301A
90368-41050 Bearing(For Rear Differential Case)[01.1982 - 11.1991] AT140,CT140,141,ST140 KOYO |
90368-41050 |
US $35.87 |
||
|
41301A
|
41301A
90368-41053 Bearing(For Rear Differential Case)[01.1982 - 09.1988] AT140,CT140,141,ST140 NSK |
90368-41053 |
US $34.36 |
||
| replacement | |||||
|
41301A
|
41301A
90368-41050 Bearing(For Rear Differential Case)[01.1982 - 09.1988] AT140,CT140,141,ST140 NSK |
90368-41050 |
US $35.87 |
||
|
41301A
|
41301A
90368-41056 Bearing(For Rear Differential Case)[01.1982 - 09.1988] AT140,CT140,141,ST140 NACHI |
90368-41056 |
US $34.36 |
||
| replacement | |||||
|
41301A
|
41301A
90368-41050 Bearing(For Rear Differential Case)[01.1982 - 09.1988] AT140,CT140,141,ST140 NACHI |
90368-41050 |
US $35.87 |
||
|
41302
|
41302
41311-22030 Case Sub-Assy, Rear Differential[01.1982 - 04.1987] AT140,CT140,141,ST140 |
41311-22030 |
US $283.92 |
||
| replacements | |||||
|
41302
|
41302
41311-22031 Case Sub-Assy, Rear Differential[01.1982 - 04.1987] AT140,CT140,141,ST140 |
41311-22031 |
US $251.89 |
||
|
41302
|
41302
41351-12030 Washer, Rear Differential Pinion Thrust[01.1982 - 04.1987] AT140,CT140,141,ST140 |
41351-12030 |
from US $1.76 |
||
|
41302
|
41302
41311-22031 Case Sub-Assy, Rear Differential[04.1987 - 11.1991] AT140,CT141,ST140 |
41311-22031 |
US $251.89 |
||
|
41315
|
41315
41315-22011 Nut, Rear Differential Bearing Adjusting[01.1982 - 11.1991] AT140,CT140,141,ST140 |
41315-22011 |
US $9.76 |
||
|
41316
|
41316
41316-22011 Lock, Rear Differential Bearing Adjusting Nut[01.1982 - 11.1991] AT140,CT140,141,ST140 SINGLE TYPE |
41316-22011 |
US $2.88 |
||
|
41316
|
41316
41317-22011 Lock, Rear Differential Bearing Adjusting Nut[01.1982 - 11.1991] AT140,CT140,141,ST140 DOUBLE TYPE |
41317-22011 |
US $2.88 |
||
|
41331
|
41331
41331-22020 Gear, Rear Differential Side[01.1982 - 10.1985] AT140,CT140,ST140 |
41331-22020 |
US $62.90 |
||
|
41341
|
41341
41341-22020
Pinion, Rear Differential
[01.1982 - 11.1991] AT14#,CT140,141,ST140 |
41341-22020 |
— | ||
| replacement | |||||
|
41341
|
41341
41341-12030 Pinion, Rear Differential[01.1982 - 11.1991] AT14#,CT140,141,ST140 |
41341-12030 |
US $24.98 |
||
|
41342
|
41342
41342-22010 Shaft, Rear Differential Pinion[01.1982 - 11.1991] AT14#,CT140,141,ST140 |
41342-22010 |
US $10.92 |
||
|
41343
|
41343
90250-04193 Pin, Straight (For Front Differential Pinion Shaft)[01.1982 - 11.1991] AT14#,CT140,141,ST140 |
90250-04193 |
US $1.46 |
||
|
41351
|
41351
41351-12030 Washer, Rear Differential Pinion Thrust[04.1987 - 11.1991] AT140,CT141,ST140 |
41351-12030 |
from US $1.76 |
||
|
41361
|
41361
41361-22020 Washer, Rear Differential Side Gear Thrust, No.1[01.1982 - 04.1998] AT14#,CT14#,KT147,ST140,TT147,YT140 厚さ＝１．００，マーク ０２,T=0.98-1.02 |
41361-22020 |
US $2.80 |
||
|
41361
|
41361
41361-22030 Washer, Rear Differential Side Gear Thrust, No.1[01.1982 - 04.1998] AT14#,CT14#,KT147,ST140,TT147,YT140 厚さ＝１．１０，マーク ０３,T=1.08-1.12 |
41361-22030 |
US $3.14 |
||
|
41361
|
41361
41361-22040 Washer, Rear Differential Side Gear Thrust, No.1[01.1982 - 04.1998] AT14#,CT14#,KT147,ST140,TT147,YT140 厚さ＝１．２０，マーク ０４,T=1.18-1.22 |
41361-22040 |
from US $3.52 |
||
|
41361
|
41361
41361-22140 Washer, Rear Differential Side Gear Thrust, No.1[01.1982 - 04.1998] AT14#,CT14#,KT147,ST140,TT147,YT140 厚さ＝０．９５，マーク １４,T=0.93-0.97 |
41361-22140 |
US $2.53 |
||
|
41361
|
41361
41361-22150 Washer, Rear Differential Side Gear Thrust, No.1[01.1982 - 04.1998] AT14#,CT14#,KT147,ST140,TT147,YT140 厚さ＝１．０５，マーク １５,T=1.03-1.07 |
41361-22150 |
US $2.62 |
||
|
41361
|
41361
41361-22160 Washer, Rear Differential Side Gear Thrust, No.1[01.1982 - 04.1998] AT14#,CT14#,KT147,ST140,TT147,YT140 厚さ＝１．１５，マーク １６,T=1.13-1.17 |
41361-22160 |
US $2.62 |
||
|
9017008204
|
9017008204
90170-08204 Nut (For Propeller Shaft) |
90170-08204 |
from US $0.86 |
||
|
9111150814
|
9111150814
91111-50814
Bolt (for Transmission Control Cable Bracket)
|
91111-50814 |
— | ||
| replacement | |||||
|
9111150814
|
9111150814
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
|
9453101200
|
9453101200
94531-01200 WASHER |
94531-01200 |
from US $0.80 |
||
