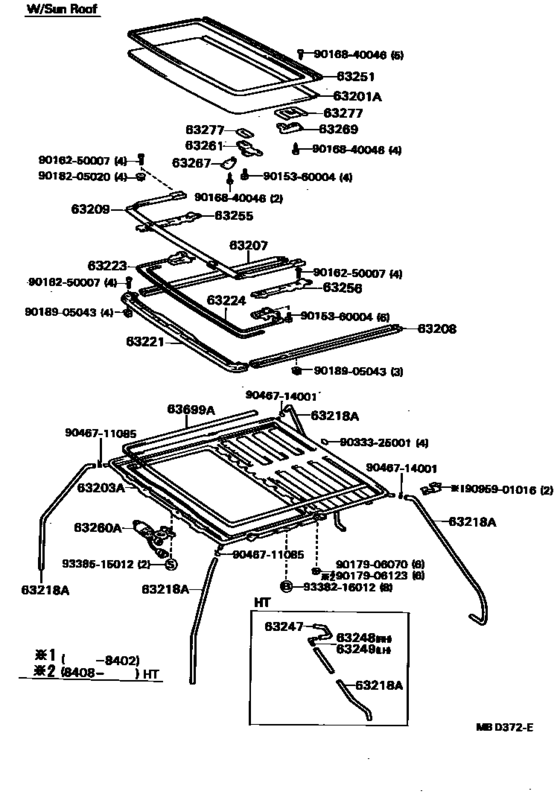

Roof Panel & Back Window Glass ([01.1982 - 08.1985] (8201-8508)AT14#,CT140,RT141,ST140,TT142,YT140) Diagram Toyota CORONA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- ST140
- grade
- GX
- body
- HT
- ENGINE
- 1SU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1982
- To
- 10.1983
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63201A
|
63201A
63201-14030
Panel Sub-Assy, Sliding Roof Or Removable Roof
[01.1982 - 10.1983] RT141,ST140,TT142..HT |
63201-14030 |
— | ||
|
63203A
|
63203A
63203-14040
Housing Sub-Assy, Sliding Roof Or Removable Roof
[01.1982 - 07.1983] RT141,ST140,TT142..HT |
63203-14040 |
— | ||
| replacement | |||||
|
63203A
|
63203A
63203-14071
Housing Sub-Assy, Sliding Roof Or Removable Roof
[01.1982 - 07.1983] RT141,ST140,TT142..HT |
63203-14071 |
— | ||
|
63203A
|
63203A
63203-14070 Housing Sub-Assy, Sliding Roof Or Removable Roof[07.1983 - 10.1983] ST140,TT142..HT |
63203-14070 |
US $445.54 |
||
| replacement | |||||
|
63203A
|
63203A
63203-14071
Housing Sub-Assy, Sliding Roof Or Removable Roof
[07.1983 - 10.1983] ST140,TT142..HT |
63203-14071 |
— | ||
|
63207
|
63207
63207-12030 Rail Sub-Assy, Sliding Roof Guide, Rh[07.1983 - 10.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,TT142..EXS,GTT,SX |
63207-12030 |
US $100.46 |
||
|
63207
|
63207
63207-20010 Rail Sub-Assy, Sliding Roof Guide, Rh[01.1982 - 07.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX |
63207-20010 |
US $77.17 |
||
|
63208
|
63208
63208-12030 Rail Sub-Assy, Sliding Roof Guide, Lh[07.1983 - 10.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,TT142..EXS,GTT,SX |
63208-12030 |
US $100.46 |
||
|
63208
|
63208
63208-20010 Rail Sub-Assy, Sliding Roof Guide, Lh[01.1982 - 07.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX |
63208-20010 |
US $77.17 |
||
|
63209
|
63209
63209-14020
Panel Sub-Assy, Roof Wind Deflector
[01.1982 - 10.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX |
63209-14020 |
— | ||
|
63218A
|
63218A
90446-12023 Hose(For Sliding Roof Or Removable Roof Drain)[01.1982 - 10.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX FR |
90446-12023 |
US $11.94 |
||
|
63218A
|
63218A
90446-13001 Hose(For Sliding Roof Or Removable Roof Drain)[01.1982 - 10.1983] RT141,ST140,TT142..HT RR |
90446-13001 |
US $10.63 |
||
|
63221
|
63221
63221-12030 Casing, Sliding Roof Cable Guide[07.1983 - 10.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,TT142..EXS,GTT,SX |
63221-12030 |
US $215.49 |
||
|
63221
|
63221
63221-20010 Casing, Sliding Roof Cable Guide[01.1982 - 07.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX |
63221-20010 |
US $212.58 |
||
|
63223
|
63223
63223-20010
Cable, Sliding Roof Drive, Rh
[01.1982 - 10.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX |
63223-20010 |
— | ||
|
63224
|
63224
63224-20010
Cable, Sliding Roof Drive, Lh
[01.1982 - 10.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX |
63224-20010 |
— | ||
|
63247
|
63247
63247-91D01
Hose, Sliding Roof Housing Drain
[01.1982 - 10.1983] RT141,ST140,TT142..HT |
63247-91D01 |
— | ||
|
63248
|
63248
90407-13006 Joint, Slide Roof Drain Hose, Rh[01.1982 - 10.1983] RT141,ST140,TT142..HT |
90407-13006 |
US $21.84 |
||
|
63249
|
63249
90407-13006 Joint, Slide Roof Drain Hose, Rh[01.1982 - 10.1983] RT141,ST140,TT142..HT |
90407-13006 |
US $21.84 |
||
|
63251
|
63251
63251-14020
Weatherstrip, Sliding Roof Panel Or Removable Roof
[01.1982 - 10.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX |
63251-14020 |
— | ||
|
63255
|
63255
63255-20010 Cover, Sliding Roof Guide Rail, Rh[01.1982 - 10.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX |
63255-20010 |
US $15.58 |
||
|
63256
|
63256
63255-20010 Cover, Sliding Roof Guide Rail, Rh[01.1982 - 10.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX |
63255-20010 |
US $15.58 |
||
|
63260A
|
63260A
63260-12040
Gear Sub-Assy, Sliding Roof Drive
[07.1983 - 10.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,TT142..EXS,GTT,SX |
63260-12040 |
— | ||
| replacement | |||||
|
63260A
|
63260A
63260-12041
Gear Sub-Assy, Sliding Roof Drive
[07.1983 - 10.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,TT142..EXS,GTT,SX |
63260-12041 |
— | ||
|
63260A
|
63260A
63260-20010 Gear Sub-Assy, Sliding Roof Drive[01.1982 - 07.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX |
63260-20010 |
US $521.25 |
||
|
63261
|
63261
63261-12020 Shoe, Sliding Roof, Front[07.1983 - 10.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,TT142..EXS,GTT,SX RH |
63261-12020 |
US $15.87 |
||
|
63261
|
63261
63261-20010 Shoe, Sliding Roof, Front[01.1982 - 07.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX |
63261-20010 |
US $15.58 |
||
|
63261
|
63261
63262-12020 Shoe, Sliding Roof, Front[07.1983 - 10.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,TT142..EXS,GTT,SX LH |
63262-12020 |
US $15.87 |
||
|
63267
|
63267
63267-20010 Protector, Sliding Roof Weatherstrip[01.1982 - 10.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX RH |
63267-20010 |
US $7.13 |
||
| replacement | |||||
|
63267
|
63267
63267-14010 Protector, Sliding Roof Weatherstrip[01.1982 - 10.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX RH |
63267-14010 |
US $7.72 |
||
|
63267
|
63267
63268-20010 Protector, Sliding Roof Weatherstrip[01.1982 - 10.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX LH |
63268-20010 |
US $7.13 |
||
| replacement | |||||
|
63267
|
63267
63268-14020 Protector, Sliding Roof Weatherstrip[01.1982 - 10.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX LH |
63268-14020 |
US $7.72 |
||
|
63269
|
63269
63269-20010 Retainer, Sliding Roof Weatherstrip[01.1982 - 10.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX RH |
63269-20010 |
US $9.17 |
||
|
63269
|
63269
63279-20010 Retainer, Sliding Roof Weatherstrip[01.1982 - 10.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX LH |
63279-20010 |
US $9.17 |
||
|
63277
|
63277
63277-14020
Shim, Sliding Roof Rail
[01.1982 - 10.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX L=48X28,T=1.0 |
63277-14020 |
— | ||
|
63277
|
63277
63277-20010 Shim, Sliding Roof Rail[01.1982 - 10.1983] ST140..HT;ST140..SED..(EXA,EXS);CT140,RT141,TT142..EXS,GT,GTT,SX L=91.5X55,T=1.0 |
63277-20010 |
US $10.05 |
||
|
9015360004
|
9015360004
90153-60004
New Genuine Part
|
90153-60004 |
— | ||
|
9016250007
|
9016250007
90162-50007
New Genuine Part
|
90162-50007 |
— | ||
|
9016840046
|
9016840046
90168-40046 New Genuine Part |
90168-40046 |
US $1.75 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017906123
|
9017906123
90179-06123 Nut, Rear Wiper Link Pivot, No.1 |
90179-06123 |
US $1.75 |
||
| replacement | |||||
|
9017906123
|
9017906123
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9018205020
|
9018205020
90182-05020
New Genuine Part
|
90182-05020 |
— | ||
|
9018905043
|
9018905043
90189-05043 Clip, Rear Door Service Hole |
90189-05043 |
US $1.60 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.41 |
||
|
9046711085
|
9046711085
90467-11085 Clamp Or Clip(For Radiator Breather Hose) |
90467-11085 |
from US $0.78 |
||
|
9046714001
|
9046714001
90467-14001 Clip Or Clamp(For Ventilation Hose) |
90467-14001 |
from US $0.76 |
||
| replacement | |||||
|
9046714001
|
9046714001
90466-T0026
Clip Or Clamp(For Ventilation Hose)
|
90466-T0026 |
— | ||
|
9095901016
|
9095901016
90959-01016 New Genuine Part |
90959-01016 |
US $3.79 |
||
|
9338216012
|
9338216012
93382-16012 New Genuine Part |
93382-16012 |
US $0.52 |
||
|
9338515012
|
9338515012
93385-15012 SCREW |
93385-15012 |
US $2.56 |
||
