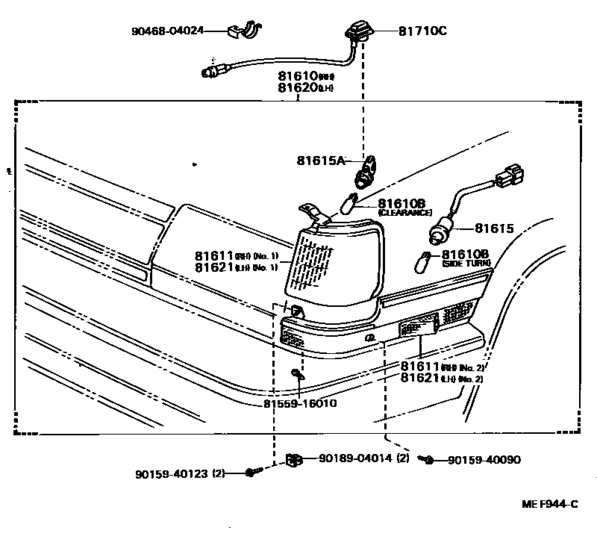

Front Clearance Lamp ([08.1985 - ] (8508- )) Diagram Toyota CORONA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- ST162
- grade
- GT
- body
- 4D
- ENGINE
- 3SGELU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 08.1985
- To
- 11.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81610
|
81610
81610-20300
Lamp Assy, Parking & Clearance, Rh
[08.1985 - 11.1987] AT150,CT150,ST150,16#..4D..(EXA,EXS,GT,GX,SX,SXR) |
81610-20300 |
— | ||
|
81610B
|
81610B
99132-12050 Bulb (12V 5W)[08.1985 - 11.1987] AT150,CT150,ST150,16# １２Ｖ ５Ｗ,12V 5W |
99132-12050 |
from US $1.76 |
||
| replacement | |||||
|
81610B
|
81610B
90080-81053 Bulb(For Clearance Lamp)[08.1985 - 11.1987] AT150,CT150,ST150,16# １２Ｖ ５Ｗ,12V 5W |
90080-81053 |
US $1.15 |
||
|
81611
|
81611
81611-20300
Lens, Parking & Clearance Lamp, Rh
[08.1985 - 11.1987] AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR NO.1 |
81611-20300 |
— | ||
|
81611
|
81611
81613-20300 Lens, Parking & Clearance Lamp, Rh[08.1985 - 11.1987] AT150,CT150,ST150,16#..4D..(EXA,EXS,GT,GX,SX,SXR) NO.2 |
81613-20300 |
US $110.66 |
||
|
81615
|
81615
81516-20290 Wire Sub-Assy, Front Turn Signal Lamp Body[08.1985 - 11.1987] AT150,CT150,ST150,16# |
81516-20290 |
US $9.03 |
||
|
81615A
|
81615A
81735-12180 Plug Assy, Front Turn Signal Lamp[08.1985 - 11.1987] AT150,CT150,ST150,16# |
81735-12180 |
US $15.50 |
||
|
81620
|
81620
81620-20300 Lamp Assy, Parking & Clearance, Lh[08.1985 - 11.1987] AT150,CT150,ST150,16#..4D..(EXA,EXS,GT,GX,SX,SXR) |
81620-20300 |
US $228.59 |
||
|
81621
|
81621
81621-20300 Lens, Parking & Clearance Lamp, Lh[08.1985 - 11.1987] AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR NO.1 |
81621-20300 |
US $78.62 |
||
|
81621
|
81621
81623-20300 Lens, Parking & Clearance Lamp, Lh[08.1985 - 11.1987] AT150,CT150,ST150,16#..4D..(EXA,EXS,GT,GX,SX,SXR) NO.2 |
81623-20300 |
US $110.66 |
||
|
81710C
|
81710C
81710-20010 Marker Assy, Fender[08.1985 - 11.1987] AT150,CT150,ST150,16#..EXA,EXS,GT,GX,SX,SXR |
81710-20010 |
US $41.20 |
||
|
8155916010
|
8155916010
81559-16010 Moulding, Rear Combination Lamp, Rh |
81559-16010 |
US $3.20 |
||
|
9015940090
|
9015940090
90159-40090 New Genuine Part |
90159-40090 |
US $1.75 |
||
|
9015940123
|
9015940123
90159-40123
New Genuine Part
|
90159-40123 |
— | ||
|
9018904014
|
9018904014
90189-04014 CLIP |
90189-04014 |
from US $1.03 |
||
|
9046804024
|
9046804024
90468-04024 New Genuine Part |
90468-04024 |
US $2.52 |
||
