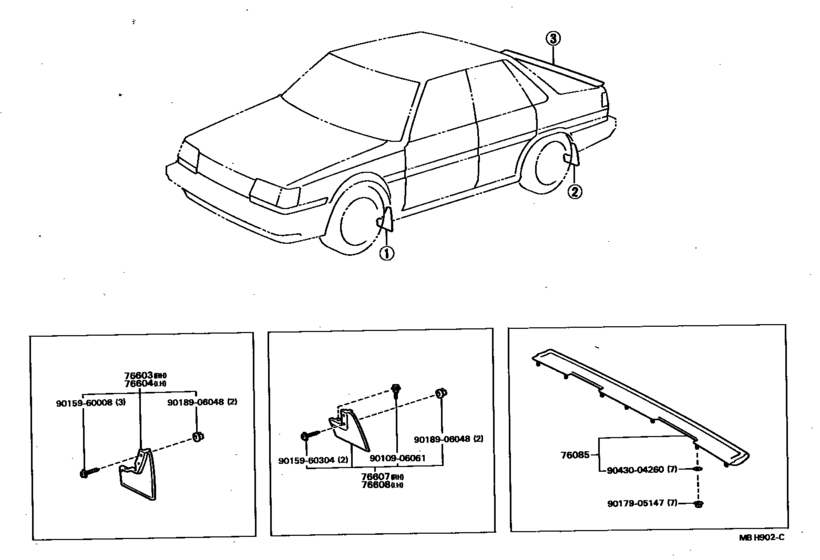

Mudguard & Spoiler ([01.1983 - ] (8301- )) Diagram Toyota CORONA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- ST162
- grade
- GT
- body
- 4D
- ENGINE
- 3SGELU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 08.1985
- To
- 11.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76085
|
76085
76085-20030
Spoiler Sub-Assy, Rear
[10.1984 - 11.1987] AT150,CT150,ST150,16#..4D |
76085-20030 |
— | ||
|
76603
|
76603
76621-29045
Mudguard Sub-Assy, Front Fender, Rh
[08.1985 - 11.1987] ST16# |
76621-29045 |
— | ||
|
76604
|
76604
76622-29045
Mudguard Sub-Assy, Front Fender, Lh
[08.1985 - 11.1987] ST16# |
76622-29045 |
— | ||
|
76607
|
76607
76625-29065
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[08.1985 - 11.1987] AT150,ST150..5D; AT150,ST150,16#..4D..(EXA,EXS,GT,SX,SXR) |
76625-29065 |
— | ||
|
76608
|
76608
76626-29065
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[08.1985 - 11.1987] AT150,ST150..5D; AT150,ST150,16#..4D..(EXA,EXS,GT,SX,SXR) |
76626-29065 |
— | ||
|
9010906061
|
9010906061
90109-06061 New Genuine Part |
90109-06061 |
US $2.85 |
||
|
9015960008
|
9015960008
90159-60008 SCREW |
90159-60008 |
US $1.12 |
||
|
9015960304
|
9015960304
90159-60304 SCREW |
90159-60304 |
from US $0.86 |
||
|
9017905147
|
9017905147
90179-05147 NUT |
90179-05147 |
US $2.33 |
||
| replacement | |||||
|
9017905147
|
9017905147
90179-05042 NUT |
90179-05042 |
US $1.12 |
||
|
9018906048
|
9018906048
90189-06048 GROMET |
90189-06048 |
from US $1.93 |
||
|
9043004260
|
9043004260
90430-04260 GASKET |
90430-04260 |
from US $0.82 |
||
