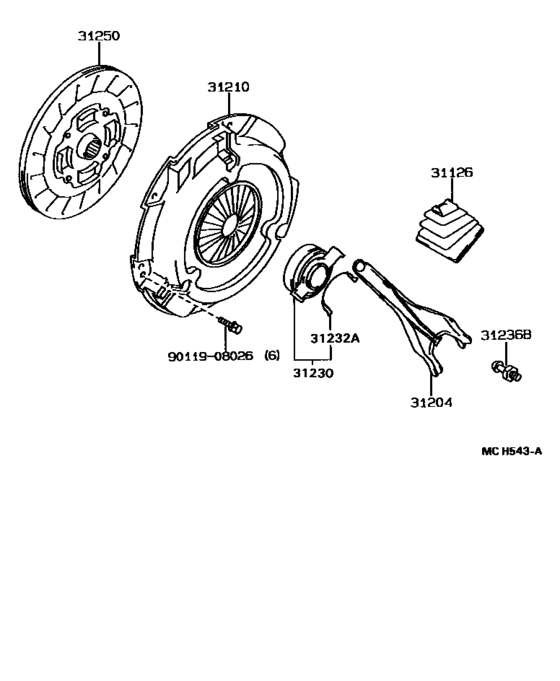

Clutch & Release Fork ([12.1987 - ] (8712- )MTM) Diagram Toyota CORONA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- ST170
- grade
- EXS
- body
- SED
- ENGINE
- 4SFI
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 12.1987
- To
- 11.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Fuel Induction
- CI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-32010 Boot, Clutch Release Fork[12.1987 - 11.1992] CT17#,ST17#..5F |
31126-32010 |
US $14.56 |
||
|
31204
|
31204
31204-32010
Fork Sub-Assy, Clutch Release
[12.1987 - 05.1990] CT17#,ST17#..5F |
31204-32010 |
— | ||
|
31210
|
31210
31210-32120 Cover Assy, Clutch[12.1987 - 12.1988] ST170..5F |
31210-32120 |
US $200.93 |
||
| replacement | |||||
|
31210
|
31210
31210-12320 Cover Assy, Clutch[12.1987 - 12.1988] ST170..5F |
31210-12320 |
US $199.47 |
||
|
31210
|
31210
31210-32121 Cover Assy, Clutch[06.1989 - 11.1989] CT17#,ST170..5F |
31210-32121 |
US $174.72 |
||
| replacement | |||||
|
31210
|
31210
31210-12320 Cover Assy, Clutch[06.1989 - 11.1989] CT17#,ST170..5F |
31210-12320 |
US $199.47 |
||
|
31230
|
31230
31230-32020
Bearing Assy, Clutch Release
[12.1987 - 05.1990] CT17#,ST17#..5F |
31230-32020 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-32100
Bearing Assy, Clutch Release
[12.1987 - 05.1990] CT17#,ST17#..5F |
31230-32100 |
— | ||
|
31232A
|
31232A
31232-32010
Clip, Release Bearing Hub
[12.1987 - 05.1990] CT17#,ST17#..5F ＴＹＰＥ ３ |
31232-32010 |
— | ||
|
31232A
|
31232A
31232-32020 Clip, Release Bearing Hub[12.1987 - 05.1990] CT17#,ST17#..5F ＴＹＰＥ ４ |
31232-32020 |
US $2.33 |
||
|
31232A
|
31232A
31232-32030
Clip, Release Bearing Hub
[12.1987 - 11.1988] AT175,CT17#,ST17#..5F ＴＹＰＥ ５ |
31232-32030 |
— | ||
|
31236B
|
31236B
31236-30030
Ball, Release Fork
[12.1987 - 05.1990] CT17#,ST17#..5F |
31236-30030 |
— | ||
|
31250
|
31250
31250-32026 Disc Assy, Clutch[12.1987 - 11.1989] ST170..5F |
31250-32026 |
US $144.14 |
||
| replacement | |||||
|
31250
|
31250
31250-32121 Disc Assy, Clutch[12.1987 - 11.1989] ST170..5F |
31250-32121 |
from US $46.66 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
