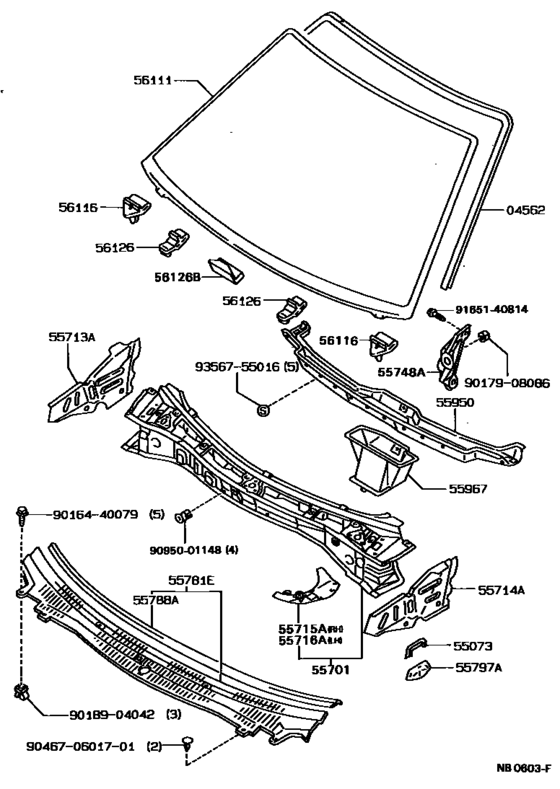

Cowl Panel & Windshield Glass ([12.1987 - ] (8712- )) Diagram Toyota CORONA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- ST170
- grade
- EXS
- body
- SED
- ENGINE
- 4SFI
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 12.1987
- To
- 11.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Fuel Induction
- CI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04562
|
04562
04562-20020
Dam Kit, Windshield Glass
[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
04562-20020 |
— | ||
| replacement | |||||
|
04562
|
04562
04562-30040 Dam Kit, Windshield Glass[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
04562-30040 |
from US $36.33 |
||
|
55073
|
55073
55073-20020 Nozzle Sub-Assy, Cowl Panel Water Extract[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
55073-20020 |
US $9.90 |
||
|
55701
|
55701
55700-20710 Panel Sub-Assy, Cowl[12.1987 - 02.1992] ST17# |
55700-20710 |
US $639.18 |
||
| replacements | |||||
|
55701
|
55701
55700-20800 Panel Sub-Assy, Cowl[12.1987 - 02.1992] ST17# |
55700-20800 |
US $639.18 |
||
|
55701
|
55701
90333-20001 PLUG[12.1987 - 02.1992] ST17# |
90333-20001 |
from US $1.12 |
||
|
55713A
|
55713A
55713-20100 Panel, Cowl Top Side, Rh[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
55713-20100 |
US $28.83 |
||
|
55714A
|
55714A
55714-20100 Panel, Cowl Top Side, Lh[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
55714-20100 |
US $28.83 |
||
|
55715A
|
55715A
55715-20090 Brace, Cowl Top To Apron, Rh[12.1987 - 11.1992] AT170,CT17#,ET176,ST17# |
55715-20090 |
US $22.42 |
||
|
55716A
|
55716A
55716-20060 Brace, Cowl Top To Apron, Lh[12.1987 - 11.1992] AT170,CT17#,ET176,ST17# |
55716-20060 |
US $22.42 |
||
|
55748A
|
55748A
55748-20100 Brace, Cowl Top Inner To Pillar[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
55748-20100 |
US $38.29 |
||
|
55781E
|
55781E
55708-20040 Louver Sub-Assy, Cowl Top Ventilator[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
55708-20040 |
US $141.23 |
||
|
55781E
|
55781E
55708-20080 Louver Sub-Assy, Cowl Top Ventilator[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# ｶﾝﾚｲﾁ ｼﾖｳ |
55708-20080 |
US $177.63 |
||
|
55788A
|
55788A
55788-20080 Protector, Cowl Top Ventilator Louver[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
55788-20080 |
US $5.39 |
||
|
55797A
|
55797A
55797-20030 Seal, Cowl Water Extract[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
55797-20030 |
US $3.49 |
||
|
55950
|
55950
55951-20120 Nozzle Assy, Defroster[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
55951-20120 |
US $81.54 |
||
|
55967
|
55967
55967-20020 Nozzle, Defroster, Lower[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
55967-20020 |
US $31.01 |
||
|
56111
|
56111
56111-20580 Glass, Windshield[12.1987 - 11.1989] AT17#,CT170,ST17#..EXG,EXS,G,MX,X,Z ＊ＴＬ，Ｔ＝５．３，ブルー |
56111-20580 |
US $1,349.71 |
||
|
56111
|
56111
56111-20630 Glass, Windshield[12.1987 - 06.1989] AT17#,CT170,ST17#..EXG,EXS,G,MX,X,Z ＊ＴＬ，Ｔ＝５．３，ブロンズ |
56111-20630 |
US $1,485.12 |
||
|
56111
|
56111
56111-20640 Glass, Windshield[12.1987 - 06.1989] ST170..5F..X;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,Z ＊ＴＬ，Ｔ＝５．３，グレー |
56111-20640 |
US $1,645.28 |
||
| replacement | |||||
|
56111
|
56111
56111-20631 Glass, Windshield[12.1987 - 06.1989] ST170..5F..X;AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,Z ＊ＴＬ，Ｔ＝５．３，グレー |
56111-20631 |
US $1,485.12 |
||
|
56111
|
56111
56111-20670 Glass, Windshield[12.1987 - 11.1989] AT17#,CT170,ST17#..EXG,EXS,G,MX,X,Z ＊ＥＨＴＬ，Ｔ＝５．３，ブルー |
56111-20670 |
US $1,499.68 |
||
| replacement | |||||
|
56111
|
56111
56111-20671 Glass, Windshield[12.1987 - 11.1989] AT17#,CT170,ST17#..EXG,EXS,G,MX,X,Z ＊ＥＨＴＬ，Ｔ＝５．３，ブルー |
56111-20671 |
US $1,403.58 |
||
|
56111
|
56111
56111-20680 Glass, Windshield[12.1987 - 06.1989] AT17#,CT170,ST17#..EXG,EXS,G,MX,X,Z ＊ＥＨＴＬ，Ｔ＝５．３，ブロンズ |
56111-20680 |
US $1,645.28 |
||
| replacement | |||||
|
56111
|
56111
56111-20681 Glass, Windshield[12.1987 - 06.1989] AT17#,CT170,ST17#..EXG,EXS,G,MX,X,Z ＊ＥＨＴＬ，Ｔ＝５．３，ブロンズ |
56111-20681 |
US $1,645.28 |
||
|
56111
|
56111
56111-20690 Glass, Windshield[12.1987 - 06.1989] AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z ＊ＥＨＴＬ，Ｔ＝５．３，グレー |
56111-20690 |
US $1,936.48 |
||
| replacement | |||||
|
56111
|
56111
56111-20681 Glass, Windshield[12.1987 - 06.1989] AT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z ＊ＥＨＴＬ，Ｔ＝５．３，グレー |
56111-20681 |
US $1,645.28 |
||
|
56116
|
56116
56116-20050 Spacer, Windshield Glass[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# WHITE |
56116-20050 |
US $5.12 |
||
|
56116
|
56116
56116-20080 Spacer, Windshield Glass[12.1987 - 11.1989] AT17#,CT17#,ET176,ST17# ブラック |
56116-20080 |
US $10.82 |
||
|
56116
|
56116
56116-20090 Spacer, Windshield Glass[12.1987 - 09.1990] AT17#,CT17#,ET176,ST17# レッド |
56116-20090 |
US $4.08 |
||
|
56126
|
56126
56126-20010
Spacer, Windshield Glass, No.2
[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
56126-20010 |
— | ||
|
56126B
|
56126B
56126-20020
Spacer, Windshield Glass, No.2
[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
56126-20020 |
— | ||
|
9016440079
|
9016440079
90164-40079 New Genuine Part |
90164-40079 |
US $1.60 |
||
| replacement | |||||
|
9016440079
|
9016440079
90159-40143 Foot Rest Screw |
90159-40143 |
US $0.96 |
||
|
9017908086
|
9017908086
90179-08086 New Genuine Part |
90179-08086 |
US $3.20 |
||
|
9018904042
|
9018904042
90189-04042 CLIP |
90189-04042 |
US $1.76 |
||
|
9095001148
|
9095001148
90950-01148 New Genuine Part |
90950-01148 |
US $1.60 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.57 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
|
904670601701
|
904670601701
90467-06017-01 Clip(For Front Bumper Retainer) |
90467-06017-01 |
US $0.96 |
||
