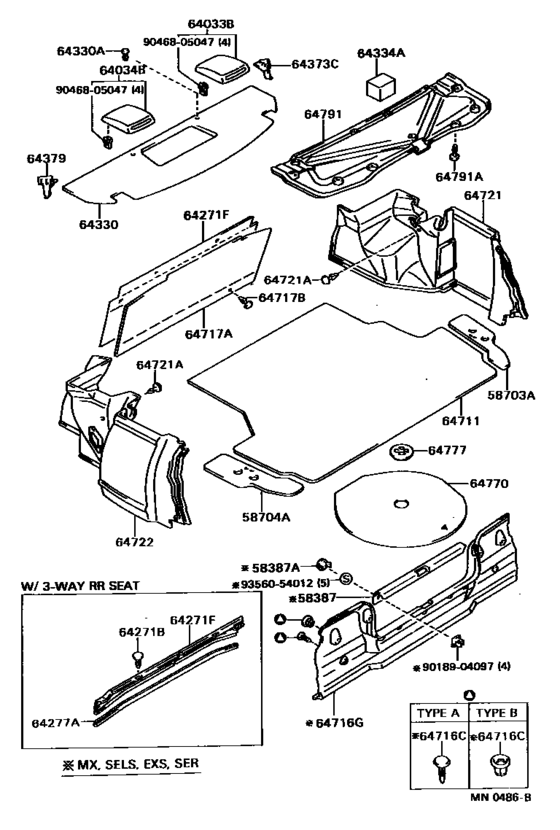

Package Tray Panel & Luggage Compartment Mat ([12.1987 - ] (8712- )AT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX, SELS,SXR) Diagram Toyota CORONA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- ST170
- grade
- EXS
- body
- SED
- ENGINE
- 4SFI
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 12.1987
- To
- 11.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Fuel Induction
- CI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58703A
|
58703A
58703-20100
Cover Sub-Assy, Luggage Compartment Side, Rh
[12.1987 - 02.1992] AT170,CT170,ST17#..SED |
58703-20100 |
— | ||
|
58704A
|
58704A
58704-20100
Cover Sub-Assy, Luggage Compartment Side, Lh
[12.1987 - 02.1992] AT170,CT170,ST17#..SED |
58704-20100 |
— | ||
|
64033B
|
64033B
64033-20120-03 Grille Sub-Assy, Rear Speaker, Rh[12.1987 - 02.1992] AT17#,CT170,ST17#..EXG,EXS,GTR,MX,SELS,SXR GRAY,TRIM1# |
64033-20120-03 |
US $71.34 |
||
|
64033B
|
64033B
64033-20120-04 Grille Sub-Assy, Rear Speaker, Rh[12.1987 - 11.1989] AT17#,CT170,ST17#..EXG,EXS,MX BLUE,TRIM8# |
64033-20120-04 |
US $71.34 |
||
|
64033B
|
64033B
64033-20120-06 Grille Sub-Assy, Rear Speaker, Rh[12.1987 - 02.1992] AT17#,CT170,ST17#..EXG,EXS,MX,SELS SABLE,TRIM4# |
64033-20120-06 |
US $71.34 |
||
|
64034B
|
64034B
64033-20120-03 Grille Sub-Assy, Rear Speaker, Rh[12.1987 - 02.1992] AT17#,CT170,ST17#..EXG,EXS,GTR,MX,SELS,SXR GRAY,TRIM1# |
64033-20120-03 |
US $71.34 |
||
|
64034B
|
64034B
64033-20120-04 Grille Sub-Assy, Rear Speaker, Rh[12.1987 - 11.1989] AT17#,CT170,ST17#..EXG,EXS,MX BLUE,TRIM8# |
64033-20120-04 |
US $71.34 |
||
|
64034B
|
64034B
64033-20120-06 Grille Sub-Assy, Rear Speaker, Rh[12.1987 - 02.1992] AT17#,CT170,ST17#..EXG,EXS,MX,SELS SABLE,TRIM4# |
64033-20120-06 |
US $71.34 |
||
|
64271F
|
64271F
64271-20160-B0 Trim, Room Partition[12.1987 - 11.1989] AT17#,CT170,ST170..SED GRAY,TRIM1# |
64271-20160-B0 |
US $28.83 |
||
|
64271F
|
64271F
64271-20160-E0 Trim, Room Partition[12.1987 - 11.1989] AT17#,CT170,ST170..DX,EXS,GX,MX SABLE,TRIM4# |
64271-20160-E0 |
US $28.83 |
||
|
64271F
|
64271F
64271-20160-J0 Trim, Room Partition[12.1987 - 11.1989] AT17#,CT170,ST170..DX,EXS,GX,MX BLUE,TRIM8# |
64271-20160-J0 |
US $28.83 |
||
|
64330
|
64330
64330-20850-03 Panel Assy, Package Tray Trim[12.1987 - 11.1989] CT170,ST17#..EXG,EXS,GTR,SXR GRAY,TRIM1#; AT170..MX ｱﾘ(ｽﾋﾟ-ｶ),GRAY,TRIM1#; AT170..EXS;AT175,ST170..MX ｱﾘ(ｽﾋﾟ-ｶ),GRAY,TRIM1# |
64330-20850-03 |
US $147.06 |
||
|
64330
|
64330
64330-20850-04 Panel Assy, Package Tray Trim[12.1987 - 11.1989] CT170,ST17#..EXG,EXS BLUE,TRIM8#; AT170..MX ｱﾘ(ｽﾋﾟ-ｶ),BLUE,TRIM8#; AT170..EXS;AT175,ST170..MX ｱﾘ(ｽﾋﾟ-ｶ),BLUE,TRIM8# |
64330-20850-04 |
US $147.06 |
||
| replacement | |||||
|
64330
|
64330
64330-20850-J0 Panel Assy, Package Tray Trim[12.1987 - 11.1989] CT170,ST17#..EXG,EXS BLUE,TRIM8#; AT170..MX ｱﾘ(ｽﾋﾟ-ｶ),BLUE,TRIM8#; AT170..EXS;AT175,ST170..MX ｱﾘ(ｽﾋﾟ-ｶ),BLUE,TRIM8# |
64330-20850-J0 |
US $145.60 |
||
|
64330
|
64330
64330-20850-06 Panel Assy, Package Tray Trim[12.1987 - 11.1989] CT170,ST17#..EXG,EXS SABLE,TRIM4#; AT170..MX ｱﾘ(ｽﾋﾟ-ｶ),SABLE,TRIM4#; AT170..EXS;AT175,ST170..MX ｱﾘ(ｽﾋﾟ-ｶ),SABLE,TRIM4# |
64330-20850-06 |
US $147.06 |
||
| replacement | |||||
|
64330
|
64330
64330-20850-03 Panel Assy, Package Tray Trim[12.1987 - 11.1989] CT170,ST17#..EXG,EXS SABLE,TRIM4#; AT170..MX ｱﾘ(ｽﾋﾟ-ｶ),SABLE,TRIM4#; AT170..EXS;AT175,ST170..MX ｱﾘ(ｽﾋﾟ-ｶ),SABLE,TRIM4# |
64330-20850-03 |
US $147.06 |
||
|
64330A
|
64330A
90467-08046-03
Clip(For Package Tray Trim Panel)
[12.1987 - 11.1989] AT17#,CT170,ST17#..SED GRAY,TRIM1# |
90467-08046-03 |
— | ||
| replacement | |||||
|
64330A
|
64330A
90467-08046-B1
Clip(For Package Tray Trim Panel)
[12.1987 - 11.1989] AT17#,CT170,ST17#..SED GRAY,TRIM1# |
90467-08046-B1 |
— | ||
|
64330A
|
64330A
90467-08046-24 Clip(For Package Tray Trim Panel)[12.1987 - 07.1988] AT170,CT170,ST17#..DX,EXG,EXS,GX,MX DARK BLUE,TRIM8# |
90467-08046-24 |
US $1.60 |
||
| replacement | |||||
|
64330A
|
64330A
90467-08046-J0
Clip(For Package Tray Trim Panel)
[12.1987 - 07.1988] AT170,CT170,ST17#..DX,EXG,EXS,GX,MX DARK BLUE,TRIM8# |
90467-08046-J0 |
— | ||
|
64330A
|
64330A
90467-08046-26 Clip(For Package Tray Trim Panel)[12.1987 - 02.1992] AT17#,CT170,ST17#..DX,EXG,EXS,GX,MX,SELS SABLE,TRIM4# |
90467-08046-26 |
US $1.46 |
||
|
64330A
|
64330A
90467-08046-J0
Clip(For Package Tray Trim Panel)
[03.1989 - 11.1989] AT17#,CT170,ST17#..DX,EXG,EXS,GX,MX LIGHT BLUE,TRIM8# |
90467-08046-J0 |
— | ||
|
64334A
|
64334A
64334-20230 Pad, Package Tray Trim[02.1988 - 11.1989] AT170,CT170,ST170..EXS,MX |
64334-20230 |
US $3.20 |
||
|
64373C
|
64373C
64373-20040 Stopper, Package Tray Trim[12.1987 - 02.1988] AT170,CT170,ST17#..SED |
64373-20040 |
US $12.81 |
||
| replacement | |||||
|
64373C
|
64373C
64373-20070 Stopper, Package Tray Trim, Rh[12.1987 - 02.1988] AT170,CT170,ST17#..SED |
64373-20070 |
US $12.67 |
||
|
64379
|
64379
64379-20020 Stopper, Package Tray Trim, Lh[12.1987 - 11.1989] AT17#,CT170,ST17#..SED |
64379-20020 |
US $12.81 |
||
| replacement | |||||
|
64379
|
64379
64379-20040 Stopper, Package Tray Trim, Lh[12.1987 - 11.1989] AT17#,CT170,ST17#..SED |
64379-20040 |
US $12.67 |
||
|
64711
|
64711
64711-20450-03 Mat, Luggage Compartment Floor[12.1987 - 11.1989] AT170,CT170,ST170..EXS GRAY,TRIM1#,4#,8# |
64711-20450-03 |
US $208.21 |
||
|
64716C
|
64716C
90467-05004-33 Clip(For Luggage Compartment Trim Rear Cover)[12.1987 - 05.1989] ST171..GTR GRAY,TRIM1#,タイプ Ａ; AT175..MX;AT170,CT170,ST17#..EXG,EXS GRAY,TRIM1#,4#,8#,タイプ Ａ |
90467-05004-33 |
US $0.87 |
||
|
64716C
|
64716C
90467-06083-03 Clip(For Luggage Compartment Trim Rear Cover)[12.1987 - 11.1989] ST171..GTR GRAY,TRIM1#,タイプ Ｂ; AT175..MX;AT170,CT170,ST17#..EXG,EXS GRAY,TRIM1#,4#,8#,タイプ Ｂ |
90467-06083-03 |
US $0.87 |
||
|
64716C
|
64716C
90467-07097-03 Clip(For Luggage Compartment Trim Rear Cover)[05.1989 - 11.1989] ST171..GTR GRAY,TRIM1#,タイプ Ａ; AT175..MX;AT170,CT170,ST17#..EXG,EXS GRAY,TRIM1#,4#,8#,タイプ Ａ |
90467-07097-03 |
US $1.89 |
||
|
64716G
|
64716G
64716-20230-03 Cover, Luggage Compartment Trim, Rear[12.1987 - 11.1989] ST171..GTR GRAY,TRIM1#; AT170,CT170,ST17#..EXG,EXS GRAY,TRIM1#,4#,8# |
64716-20230-03 |
US $230.05 |
||
|
64717A
|
64717A
64717-20230-03 Cover, Luggage Compartment Trim, Front[12.1987 - 11.1989] AT170,CT170,ST170..EXS GRAY,TRIM1#,4#,8# |
64717-20230-03 |
US $49.65 |
||
|
64717B
|
64717B
90467-09066-B0 Clip (For Rocker Panel Inner Protector)[12.1987 - 02.1989] AT170,CT170,ST170..EXS,GX,MX GRAY,GRAY,TRIM1#,4#,8# |
90467-09066-B0 |
US $2.33 |
||
|
64721
|
64721
64721-20170-03 Cover, Luggage Compartment Trim, Inner Rh[12.1987 - 11.1989] AT170,CT170,ST170..EXS GRAY,TRIM1#,4#,8# |
64721-20170-03 |
US $50.67 |
||
|
64721A
|
64721A
90467-07042-03 Clip(For Luggage Compartment Trim Inner Cover)[12.1987 - 07.1988] ST171..GTR,SXR GRAY,TRIM1#; AT170,CT170,ST17#..EXG,EXS,GX,MX GRAY,TRIM1#,4#,8# |
90467-07042-03 |
US $1.60 |
||
| replacement | |||||
|
64721A
|
64721A
90467-07042-B0 Clip(For Luggage Compartment Trim Inner Cover)[12.1987 - 07.1988] ST171..GTR,SXR GRAY,TRIM1#; AT170,CT170,ST17#..EXG,EXS,GX,MX GRAY,TRIM1#,4#,8# |
90467-07042-B0 |
US $1.46 |
||
|
64721A
|
64721A
90467-07042-B0 Clip(For Luggage Compartment Trim Inner Cover)[07.1988 - 02.1992] ST171..GTR,SXR LIGHT GRAY,TRIM1#; AT17#,CT170,ST17#..EXG,EXS,GX,MX,SELS LIGHT GRAY,TRIM1#,4#,8# |
90467-07042-B0 |
US $1.46 |
||
|
64722
|
64722
64722-20140-03 Cover, Luggage Compartment Trim, Inner Lh[12.1987 - 11.1989] AT170,CT170,ST170..EXS GRAY,TRIM1#,4#,8# |
64722-20140-03 |
US $60.57 |
||
|
64770
|
64770
64771-32040 Cover Assy, Spare Wheel[12.1987 - 02.1992] AT170,CT170,ST17#..SED |
64771-32040 |
US $50.23 |
||
|
64777
|
64777
64777-32030 Cover Sub-Assy, Spare Wheel[12.1987 - 02.1992] AT17#,CT170,ST17#..SED |
64777-32030 |
from US $9.98 |
||
|
9018904097
|
9018904097
90189-04097 New Genuine Part |
90189-04097 |
US $1.05 |
||
|
9046805047
|
9046805047
90468-05047 CLIP |
90468-05047 |
US $1.44 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.70 |
||
