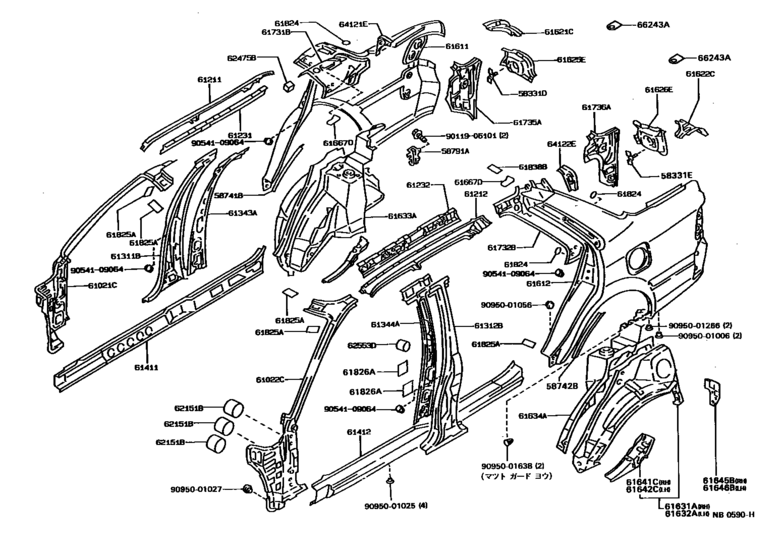

Side Member ([12.1987 - ] (8712- )AT170,CT170,ST17#..SED) Diagram Toyota CORONA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- ST170
- grade
- EXS
- body
- SED
- ENGINE
- 4SFI
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 12.1987
- To
- 11.1989
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Fuel Induction
- CI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58331D
|
58331D
58331-20030 Bracket, Luggage Compartment Trim, No.1[12.1987 - 11.1989] AT175..MX;AT170,CT170,ST17#..EXG,EXS,GTR |
58331-20030 |
US $5.10 |
||
|
58331E
|
58331E
58331-20030 Bracket, Luggage Compartment Trim, No.1[12.1987 - 11.1989] AT175..MX;AT170,CT170,ST17#..EXG,EXS,GTR |
58331-20030 |
US $5.10 |
||
|
58741B
|
58741B
58741-20020 Protector, Quarter Panel, Rh[12.1987 - 02.1988] AT170,CT17#,ET176,ST17# (ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ) & ｱﾘ(ﾁﾂﾋﾟﾝｸﾞﾃ-ﾌﾟ) |
58741-20020 |
US $4.95 |
||
| replacement | |||||
|
58741B
|
58741B
58741-20021 Protector, Quarter Panel, Rh[12.1987 - 02.1988] AT170,CT17#,ET176,ST17# (ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ) & ｱﾘ(ﾁﾂﾋﾟﾝｸﾞﾃ-ﾌﾟ) |
58741-20021 |
US $4.66 |
||
|
58741B
|
58741B
58741-20021 Protector, Quarter Panel, Rh[02.1988 - 11.1992] AT17#,CT17#,ET176,ST17# (ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ) & ｱﾘ(ﾁﾂﾋﾟﾝｸﾞﾃ-ﾌﾟ) |
58741-20021 |
US $4.66 |
||
|
58742B
|
58742B
58742-20020 Protector, Quarter Panel, Lh[12.1987 - 02.1988] AT170,CT17#,ET176,ST17# (ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ) & ｱﾘ(ﾁﾂﾋﾟﾝｸﾞﾃ-ﾌﾟ) |
58742-20020 |
US $4.95 |
||
| replacement | |||||
|
58742B
|
58742B
58742-20021 Protector, Quarter Panel, Lh[12.1987 - 02.1988] AT170,CT17#,ET176,ST17# (ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ) & ｱﾘ(ﾁﾂﾋﾟﾝｸﾞﾃ-ﾌﾟ) |
58742-20021 |
US $4.66 |
||
|
58742B
|
58742B
58742-20021 Protector, Quarter Panel, Lh[02.1988 - 11.1992] AT17#,CT17#,ET176,ST17# (ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ) & ｱﾘ(ﾁﾂﾋﾟﾝｸﾞﾃ-ﾌﾟ) |
58742-20021 |
US $4.66 |
||
|
58791A
|
58791A
58791-20030 Carrier, Jack[12.1987 - 02.1992] AT17#,CT170,ST17# |
58791-20030 |
US $10.19 |
||
|
61021C
|
61021C
61021-20500 Pillar Sub-Assy, Front Body, Rh[12.1987 - 05.1988] AT170,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,STD,SXR,X |
61021-20500 |
US $566.38 |
||
|
61022C
|
61022C
61022-20430 Pillar Sub-Assy, Front Body, Lh[12.1987 - 05.1988] AT170,CT17#,ET176,ST17# |
61022-20430 |
US $566.38 |
||
|
61211
|
61211
61211-20180 Rail, Roof Side, Outer Rh[12.1987 - 02.1992] AT17#,CT170,ST17#..SED |
61211-20180 |
US $99.01 |
||
|
61212
|
61212
61212-20180 Rail, Roof Side, Outer Lh[12.1987 - 02.1992] AT17#,CT170,ST17#..SED |
61212-20180 |
US $99.01 |
||
|
61231
|
61231
61231-20260 Rail, Roof Side, Inner Rh[12.1987 - 02.1992] AT17#,CT170,ST17# |
61231-20260 |
US $66.25 |
||
|
61232
|
61232
61232-20250 Rail, Roof Side, Inner Lh[12.1987 - 02.1992] AT17#,CT170,ST17# |
61232-20250 |
US $66.25 |
||
|
61311B
|
61311B
61311-20900 Pillar, Center Body, Outer Rh[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
61311-20900 |
US $438.26 |
||
|
61312B
|
61312B
61312-20900 Pillar, Center Body, Outer Lh[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
61312-20900 |
US $438.26 |
||
|
61343A
|
61343A
61343-20902 Pillar, Center Body, Inner Rh[12.1987 - 03.1988] AT170,CT17#,ET176,ST17# |
61343-20902 |
US $103.38 |
||
|
61344A
|
61344A
61344-20902 Pillar, Center Body, Inner Lh[12.1987 - 03.1988] AT170,CT17#,ET176,ST17# |
61344-20902 |
US $103.38 |
||
|
61411
|
61411
61401-20250
Panel, Rocker, Outer Rh
[12.1987 - 02.1992] AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
61401-20250 |
— | ||
|
61412
|
61412
61402-20250
Panel, Rocker, Outer Lh
[12.1987 - 02.1992] AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z |
61402-20250 |
— | ||
|
61611
|
61611
61611-2B900 Panel, Quarter, Rh[12.1987 - 02.1992] AT17#,CT170,ST17#..SED |
61611-2B900 |
US $646.46 |
||
|
61612
|
61612
61612-2B900 Panel, Quarter, Lh[12.1987 - 02.1992] AT17#,CT170,ST17#..SED |
61612-2B900 |
US $646.46 |
||
|
61621C
|
61621C
61621-20100 Trough, Luggage Compartment Opening, Rh[12.1987 - 02.1992] AT17#,CT170,ST17#..SED |
61621-20100 |
US $27.96 |
||
|
61622C
|
61622C
61622-20100 Trough, Luggage Compartment Opening, Lh[12.1987 - 02.1992] AT17#,CT170,ST17#..SED |
61622-20100 |
US $27.96 |
||
|
61625E
|
61625E
61625-20070 Extension, Quarter Panel, Inner Rear Rh[12.1987 - 02.1992] AT17#,CT170,ST17#..SED |
61625-20070 |
US $60.57 |
||
|
61626E
|
61626E
61626-20070 Extension, Quarter Panel, Inner Rear Lh[12.1987 - 02.1992] AT17#,CT170,ST17#..SED |
61626-20070 |
US $60.57 |
||
|
61631A
|
61631A
61605-20160 Panel, Quarter Wheel House, Outer Rh[12.1987 - 08.1988] AT170,CT170,ST17# |
61605-20160 |
US $235.87 |
||
| replacements | |||||
|
61631A
|
61631A
61605-20900 Panel, Quarter Wheel House, Outer Rh[12.1987 - 08.1988] AT170,CT170,ST17# |
61605-20900 |
US $237.33 |
||
|
61631A
|
61631A
61645-32030 Gusset, Quarter Wheel House, Rear Rh[12.1987 - 08.1988] AT170,CT170,ST17# |
61645-32030 |
US $10.05 |
||
|
61631A
|
61631A
61605-20900 Panel, Quarter Wheel House, Outer Rh[08.1988 - 02.1992] AT17#,CT170,ST17# |
61605-20900 |
US $237.33 |
||
|
61632A
|
61632A
61606-20130 Panel, Quarter Wheel House, Outer Lh[12.1987 - 08.1988] AT170,CT170,ST17# |
61606-20130 |
US $235.87 |
||
| replacements | |||||
|
61632A
|
61632A
61606-95500 Panel, Quarter Wheel House, Outer Lh[12.1987 - 08.1988] AT170,CT170,ST17# |
61606-95500 |
US $235.87 |
||
|
61632A
|
61632A
61646-32020 Gusset, Quarter Wheel House, Rear Lh[12.1987 - 08.1988] AT170,CT170,ST17# |
61646-32020 |
US $10.05 |
||
|
61632A
|
61632A
61606-20900 Panel, Quarter Wheel House, Outer Lh[08.1988 - 02.1992] AT17#,CT170,ST17# |
61606-20900 |
US $237.33 |
||
| replacement | |||||
|
61632A
|
61632A
61606-95500 Panel, Quarter Wheel House, Outer Lh[08.1988 - 02.1992] AT17#,CT170,ST17# |
61606-95500 |
US $235.87 |
||
|
61633A
|
61633A
61607-20905 Panel, Quarter Wheel House, Inner Rh[12.1987 - 11.1989] AT170,CT170,ST170..SED |
61607-20905 |
US $279.55 |
||
|
61634A
|
61634A
61608-20903 Panel, Quarter Wheel House, Inner Lh[12.1987 - 11.1989] AT170,CT170,ST170..SED |
61608-20903 |
US $279.55 |
||
|
61641C
|
61641C
61641-20040 Gusset, Quarter Wheel House, Front Rh[01.1988 - 11.1992] AT17#,CT17#,ET176,ST17# |
61641-20040 |
US $28.83 |
||
|
61642C
|
61642C
61642-20050 Gusset, Quarter Wheel House, Front Lh[01.1988 - 11.1992] AT17#,CT17#,ET176,ST17# |
61642-20050 |
US $28.83 |
||
|
61645B
|
61645B
61645-32030 Gusset, Quarter Wheel House, Rear Rh[08.1988 - 02.1992] AT170,CT170,ST17# |
61645-32030 |
US $10.05 |
||
|
61646B
|
61646B
61646-32020 Gusset, Quarter Wheel House, Rear Lh[08.1988 - 02.1992] AT170,CT170,ST17# |
61646-32020 |
US $10.05 |
||
|
61667D
|
61667D
61667-20020 Seal, Quarter Panel[12.1987 - 11.1989] AT17#,CT170,ST17#..SED |
61667-20020 |
US $7.72 |
||
|
61731B
|
61731B
61705-20250 Panel, Roof Side, Inner Rh[12.1987 - 02.1992] AT17#,CT170,ST17#..SED |
61705-20250 |
US $147.06 |
||
|
61732B
|
61732B
61706-20240 Panel, Roof Side, Inner Lh[12.1987 - 02.1992] AT17#,CT170,ST17#..SED |
61706-20240 |
US $147.06 |
||
|
61735A
|
61735A
61735-20090 Panel, Roof Side, Inner Rear Rh[12.1987 - 02.1992] AT17#,CT170,ST17#..SED |
61735-20090 |
US $80.08 |
||
|
61736A
|
61736A
61736-20080 Panel, Roof Side, Inner Rear Lh[12.1987 - 02.1992] AT17#,CT170,ST17#..SED |
61736-20080 |
US $80.08 |
||
|
61824
|
61824
61824-20100 Plate, Noise Control, No.1[12.1987 - 02.1992] ST17#..LB OD=45; AT17#,CT170,ST17#..SED |
61824-20100 |
US $2.04 |
||
|
61825A
|
61825A
61825-20090 Plate, Noise Control, No.2[12.1987 - 02.1992] AT17#,CT170,ST17# 60 X 120 |
61825-20090 |
US $6.26 |
||
|
61825A
|
61825A
61825-30020 Plate, Noise Control, No.1[12.1987 - 02.1992] AT17#,CT170,ST17#..SED 70 X 90 |
61825-30020 |
US $6.41 |
||
|
61826A
|
61826A
61826-20040 Plate, Noise Control, No.3[12.1987 - 04.1989] AT17#,CT170,ST17# |
61826-20040 |
US $6.70 |
||
|
61838B
|
61838B
61838-20010 Plate, Noise Control, No.5[12.1987 - 02.1992] AT17#,CT170,ST17#..SED |
61838-20010 |
US $6.26 |
||
|
62151B
|
62151B
62151-20180 Pad, Cowl Side Silencer[12.1987 - 02.1992] AT17#,CT170,ST17# OD=90,L=80 |
62151-20180 |
US $9.17 |
||
|
62151B
|
62151B
62939-23010 Plate, Noise Control, No.1[12.1987 - 02.1992] AT17#,CT170,ST17# 70 X 70 |
62939-23010 |
US $4.95 |
||
| replacement | |||||
|
62151B
|
62151B
61824-12110 Plate, Noise Control, No.1[12.1987 - 02.1992] AT17#,CT170,ST17# 70 X 70 |
61824-12110 |
US $15.58 |
||
|
62475B
|
62475B
62475-12040 Plate, Noise Control, No.1[12.1987 - 02.1992] AT17#,CT170,ST17#..SED |
62475-12040 |
US $5.68 |
||
|
62553D
|
62553D
62553-20030 Pad, Pillar, No.3[12.1987 - 02.1992] AT17#,CT170,ST17# |
62553-20030 |
US $1.89 |
||
|
64121E
|
64121E
64121-20050 Bracket, Luggage Compartment Door Hinge, Rh[12.1987 - 02.1992] AT17#,CT170,ST17#..SED |
64121-20050 |
US $5.24 |
||
|
64122E
|
64122E
64122-20050 Bracket, Luggage Compartment Door Hinge, Lh[12.1987 - 02.1992] AT17#,CT170,ST17#..SED |
64122-20050 |
US $5.24 |
||
|
66243A
|
66243A
66243-20010 Protector, Rear Body, No.1[12.1987 - 11.1989] AT17#,CT170,ST17# |
66243-20010 |
US $2.20 |
||
|
9011906101
|
9011906101
90119-06101
New Genuine Part
|
90119-06101 |
— | ||
| replacement | |||||
|
9011906101
|
9011906101
90119-06010 BOLT WWASHER |
90119-06010 |
US $1.76 |
||
|
9054109064
|
9054109064
90541-09064 Cushion, Front Door Panel |
90541-09064 |
US $3.20 |
||
|
9095001006
|
9095001006
90950-01006 Plug, Hole(For Front Fender) |
90950-01006 |
US $4.16 |
||
|
9095001025
|
9095001025
90950-01025 Plug, Hole(For Front Fender Apron) |
90950-01025 |
US $3.84 |
||
|
9095001027
|
9095001027
90950-01027 Plug, Hole, No.3(For Dash Panel) |
90950-01027 |
US $3.20 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001266
|
9095001266
90950-01266 New Genuine Part |
90950-01266 |
US $3.20 |
||
|
9095001638
|
9095001638
90950-01638 New Genuine Part |
90950-01638 |
US $2.48 |
||
