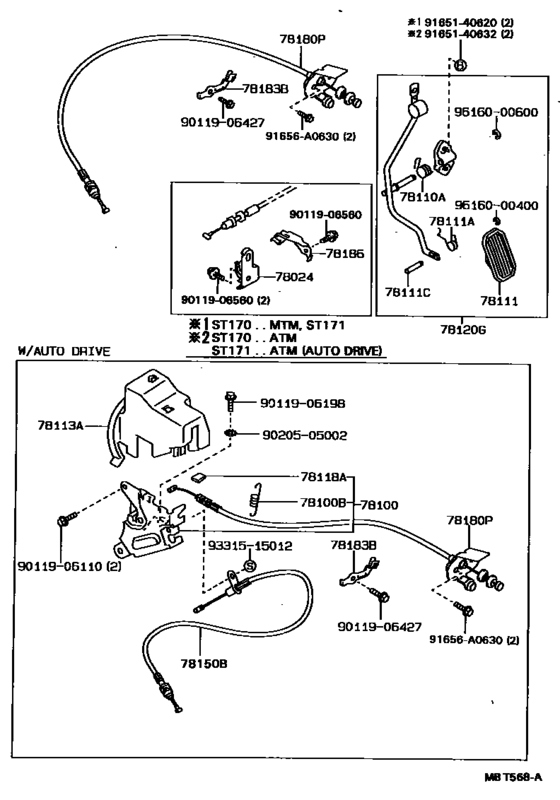

Accelerator Link ([11.1989 - ] (8911- )ST17#..EXG,EXS,G,GX,SELS,SXR,X,Z) Diagram Toyota CORONA
- Year
- 1987 - 1992
- Sales region
- Japan
- Frame
- ST171
- grade
- SXR
- body
- SED
- ENGINE
- 3SFE
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 12.1987
- To
- 02.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-20130 Bracket Sub-Assy, Accelerator Control Cable[11.1989 - 02.1992] ST17#..EXG,EXS,G,GX,SELS,SXR,X,Z |
78024-20130 |
US $36.11 |
||
|
78024
|
78024
78024-32070 Bracket Sub-Assy, Accelerator Control Cable[12.1987 - 11.1989] ST171..EXG,G,SXR |
78024-32070 |
US $40.48 |
||
|
78100
|
78100
78100-20030 Link Assy, Accelerator[12.1987 - 02.1992] ST17#..EXG,EXS,G,SXR,X |
78100-20030 |
US $109.20 |
||
|
78100B
|
78100B
90506-08019 Spring (For Accelerator Link)[12.1987 - 02.1992] ST17#..EXG,EXS,G,SXR,X |
90506-08019 |
US $4.37 |
||
|
78110A
|
78110A
90508-26054 Spring, Torsion (For Accelerator Link)[12.1987 - 11.1988] ST171..EXG,G,SXR;AT17#,CT17#,ET176,ST17#..MTM..(DX,EXS,GT,GTR,GX,MX,STD,X,Z) |
90508-26054 |
US $6.99 |
||
|
78111
|
78111
78111-32010 Pedal, Accelerator[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
78111-32010 |
US $10.13 |
||
|
78111A
|
78111A
90508-18050
Spring (For Accelerator Pedal Rod)
[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
90508-18050 |
— | ||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[12.1987 - 11.1992] AT17#,CT17#,ET176,ST17# |
90249-05001 |
US $3.32 |
||
|
78113A
|
78113A
78113-20141 Cover, Auto Drive Accelerator Link[12.1987 - 01.1988] ST171..EXG,G,SXR |
78113-20141 |
US $40.77 |
||
|
78118A
|
78118A
78118-12010 Stopper, Accelerator Link[12.1987 - 02.1992] ST17#..EXG,EXS,G,GT,GTR,SXR,X |
78118-12010 |
US $3.20 |
||
|
78120G
|
78120G
78120-20180 Rod Assy, Accelerator Pedal[12.1987 - 11.1988] ST171..EXG,G,SXR;AT17#,CT17#,ET176,ST170..MTM |
78120-20180 |
US $49.50 |
||
|
78150B
|
78150B
78150-20110
Cable Assy, Accelerator Auto Drive
[12.1987 - 02.1992] ST17#..(EXG,EXS,G,SXR,X)..EFI |
78150-20110 |
— | ||
|
78180P
|
78180P
78180-20671 Cable Assy, Accelerator Control[12.1987 - 08.1988] ST171..EXG,G,SXR |
78180-20671 |
US $45.43 |
||
|
78180P
|
78180P
78180-2B030 Cable Assy, Accelerator Control[08.1988 - 02.1992] ST17#..(EXG,EXS,G,GX,SELS,SXR,X,Z)..EFI |
78180-2B030 |
US $55.04 |
||
|
78180P
|
78180P
78180-2B370 Cable Assy, Accelerator Control[12.1987 - 02.1992] ST17#..EXG,EXS,G,GT,GTR,SXR,X ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
78180-2B370 |
US $40.91 |
||
|
78183B
|
78183B
78183-20100 Clamp, Accelerator Control Cable[12.1987 - 07.1988] CT17#,ST17# |
78183-20100 |
US $11.65 |
||
| replacement | |||||
|
78183B
|
78183B
78183-20101 Clamp, Accelerator Control Cable[12.1987 - 07.1988] CT17#,ST17# |
78183-20101 |
US $11.50 |
||
|
78183B
|
78183B
78183-20120 Clamp, Accelerator Control Cable[07.1988 - 09.1988] ST17# |
78183-20120 |
US $14.27 |
||
|
78186
|
78186
78186-32040 Support, Accelerator Control Cable, No.1[12.1987 - 02.1992] ST17#..(EXG,EXS,G,GX,SELS,SXR,X,Z)..EFI |
78186-32040 |
US $8.59 |
||
|
91656A0630
|
91656A0630
91656-A0630 New Genuine Part |
91656-A0630 |
US $1.46 |
||
|
9011906110
|
9011906110
90119-06110
New Genuine Part
|
90119-06110 |
— | ||
| replacement | |||||
|
9011906110
|
9011906110
90119-06442 BOLT WWASHER |
90119-06442 |
US $1.92 |
||
|
9011906198
|
9011906198
90119-06198 New Genuine Part |
90119-06198 |
US $1.75 |
||
|
9011906427
|
9011906427
90119-06427 New Genuine Part |
90119-06427 |
US $1.60 |
||
| replacement | |||||
|
9011906427
|
9011906427
91651-A0610 BOLT WWASHER |
91651-A0610 |
US $1.60 |
||
|
9011906560
|
9011906560
90119-06560 Bolt |
90119-06560 |
US $1.92 |
||
|
9020505002
|
9020505002
90205-05002 New Genuine Part |
90205-05002 |
US $0.79 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165140632
|
9165140632
91651-40632 New Genuine Part |
91651-40632 |
US $1.16 |
||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.80 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
