Starter ([11.1989 - ] 12V 1.4KW (8911- )3SGE) Diagram Toyota CORONA
- Year
- 1987 - 1992
- Sales region
- Japan
- Frame
- ST171
- grade
- GTR
- body
- SED
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 12.1987
- To
- 02.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corona
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?

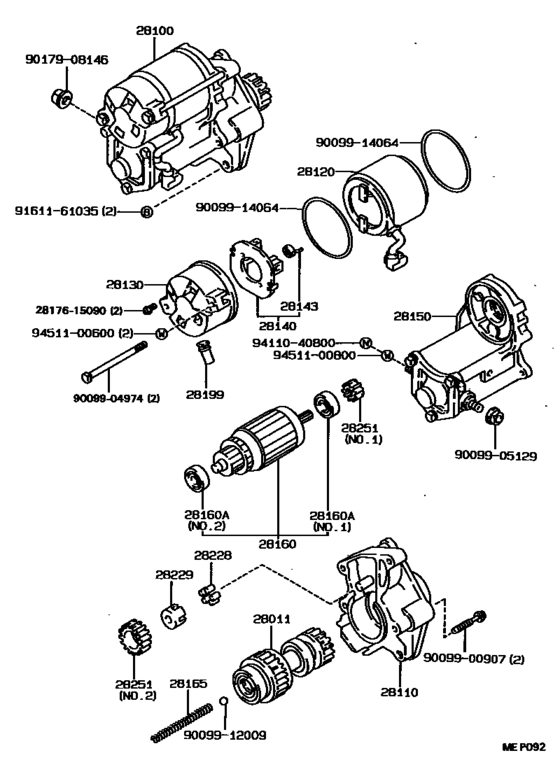

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-26042
Clutch Sub-Assy, Starter
[12.1987 - 11.1989] 3SGE..ST171 |
28011-26042 |
— | ||
|
28011
|
28011
28011-74011 Clutch Sub-Assy, Starter[11.1989 - 02.1992] 3S#,4SFE..ST17# |
28011-74011 |
US $248.98 |
||
| replacement | |||||
|
28011
|
28011
28011-74060
Clutch Sub-Assy, Starter
[11.1989 - 02.1992] 3S#,4SFE..ST17# |
28011-74060 |
— | ||
|
28100
|
28100
28100-63050 Starter Assy[12.1987 - 11.1989] 3SGE..ST171 １２Ｖ １．０ＫＷ |
28100-63050 |
US $1,340.98 |
||
| replacement | |||||
|
28100
|
28100
28100-74040 Starter Assy[12.1987 - 11.1989] 3SGE..ST171 １２Ｖ １．０ＫＷ |
28100-74040 |
US $1,275.46 |
||
|
28100
|
28100
28100-74021 Starter Assy[11.1989 - 02.1992] 3SGE..ST171 １２Ｖ １．４ＫＷ |
28100-74021 |
US $1,412.32 |
||
| replacement | |||||
|
28100
|
28100
28100-74090 Starter Assy[11.1989 - 02.1992] 3SGE..ST171 １２Ｖ １．４ＫＷ |
28100-74090 |
US $1,412.32 |
||
|
28110
|
28110
28110-63050 Housing Assy, Starter Drive[12.1987 - 11.1989] 3SGE..ST171 |
28110-63050 |
US $58.39 |
||
|
28110
|
28110
28110-74020 Housing Assy, Starter Drive[11.1989 - 02.1992] 3SGE..ST171 |
28110-74020 |
US $110.66 |
||
|
28120
|
28120
28120-15090
Yoke Assy, Starter
[11.1989 - 11.1992] 2C,3SGE..CT17#,ST171 |
28120-15090 |
— | ||
|
28120
|
28120
28120-26071
Yoke Assy, Starter
[12.1987 - 11.1989] 3S#,4SFI..ST17# |
28120-26071 |
— | ||
|
28130
|
28130
28130-13010 Frame Assy, Starter Commutator End[12.1987 - 11.1989] 3SGE..ST171 |
28130-13010 |
US $21.11 |
||
|
28130
|
28130
28130-74020 Frame Assy, Starter Commutator End[11.1989 - 02.1992] 3SGE..ST171 |
28130-74020 |
US $44.84 |
||
|
28140
|
28140
28140-26070 Holder Assy, Starter Brush[12.1987 - 11.1989] 3SGE..ST171 |
28140-26070 |
from US $16.77 |
||
|
28140
|
28140
28140-74020
Holder Assy, Starter Brush
[11.1989 - 02.1992] 3SGE..ST171 |
28140-74020 |
— | ||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[12.1987 - 11.1992] 2C,3S#,4SF#..CT17#,ST17#; 4AFE,5AF,3E..AT17#,ET176 ｶﾝﾚｲﾁ ｼﾖｳ |
90099-17112 |
— | ||
|
28150
|
28150
28150-63050 Switch Assy, Magnet Starter[12.1987 - 11.1989] 3SGE..ST171 |
28150-63050 |
US $349.44 |
||
|
28150
|
28150
28150-74020 Switch Assy, Magnet Starter[11.1989 - 02.1992] 3SGE..ST171 |
28150-74020 |
US $218.40 |
||
|
28160
|
28160
28160-15091
Armature Assy, Starter
[11.1989 - 11.1992] 2C,3SGE..CT17#,ST171 |
28160-15091 |
— | ||
|
28160
|
28160
28160-26070 Armature Assy, Starter[12.1987 - 08.1989] 3S#,4SFI..ST17#; 4AFE,5AF,3E..AT17#,ET176 ｶﾝﾚｲﾁ ｼﾖｳ |
28160-26070 |
US $324.69 |
||
| replacement | |||||
|
28160
|
28160
28160-26071
Armature Assy, Starter
[12.1987 - 08.1989] 3S#,4SFI..ST17#; 4AFE,5AF,3E..AT17#,ET176 ｶﾝﾚｲﾁ ｼﾖｳ |
28160-26071 |
— | ||
|
28160
|
28160
28160-26071
Armature Assy, Starter
[08.1989 - 11.1989] 3S#,4SFI..ST17# |
28160-26071 |
— | ||
|
28160A
|
28160A
28253-45020
Bearing, Starter Armature
[12.1987 - 11.1989] 3S#,4SFI..ST17# ＮＯ．１ |
28253-45020 |
— | ||
|
28160A
|
28160A
90099-10113
Bearing, Starter Armature
[12.1987 - 11.1989] 3S#,4SFI..ST17# ＮＯ．２ |
90099-10113 |
— | ||
|
28160A
|
28160A
90099-10143
Bearing, Starter Armature
[11.1989 - 11.1992] 2C,3SGE..CT17#,ST171 ＮＯ．２ |
90099-10143 |
— | ||
|
28160A
|
28160A
90099-10144
Bearing, Starter Armature
[11.1989 - 11.1992] 2C,3SGE..CT17#,ST171 ＮＯ．１ |
90099-10144 |
— | ||
|
28165
|
28165
28165-26040
Spring, Starter Magnet Switch Return
[12.1987 - 11.1989] 2C,3SGE..CT17#,ST171 |
28165-26040 |
— | ||
|
28165
|
28165
28165-74010
Spring, Starter Magnet Switch Return
[11.1989 - 02.1992] 3S#,4SFE..ST17# |
28165-74010 |
— | ||
|
28199
|
28199
28199-15090
Cover, Starter End Frame
[11.1989 - 01.1991] 2C,3SGE..CT17#,ST171 |
28199-15090 |
— | ||
|
28199
|
28199
28199-63050
Cover, Starter
[12.1987 - 11.1989] 3SGE..ST171 |
28199-63050 |
— | ||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[12.1987 - 11.1992] 2C,3S#,4SF#..CT17#,ST17#; 4AFE,5AF,3E..AT17#,ET176 ｶﾝﾚｲﾁ ｼﾖｳ |
28228-26040 |
— | ||
|
28229
|
28229
28229-26040
Retainer, Starter Idle Gear
[12.1987 - 11.1992] 2C,3S#,4SF#..CT17#,ST17#; 4AFE,5AF,3E..AT17#,ET176 ｶﾝﾚｲﾁ ｼﾖｳ |
28229-26040 |
— | ||
|
28251
|
28251
28251-15090
Pinion, Starter Drive
[11.1989 - 11.1992] 2C,3SGE..CT17#,ST171 ＮＯ．２ |
28251-15090 |
— | ||
|
28251
|
28251
28254-45020
Pinion, Starter Drive
[12.1987 - 11.1989] 3S#,4SFI..ST17# |
28254-45020 |
— | ||
|
28251
|
28251
28254-54070
Pinion, Starter Drive
[11.1989 - 11.1992] 3SFE,4SFE..ST17#; 2C,3SGE..CT17#,ST171 ＮＯ．１ |
28254-54070 |
— | ||
|
2817615090
|
2817615090
28176-15090
Screw, Starter
|
28176-15090 |
— | ||
| replacement | |||||
|
2817615090
|
2817615090
28176-87701
Screw, Starter
|
28176-87701 |
— | ||
|
9009900907
|
9009900907
90099-00907
New Genuine Part
|
90099-00907 |
— | ||
|
9009904974
|
9009904974
90099-04974
New Genuine Part
|
90099-04974 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9009914064
|
9009914064
90099-14064 Rubber(For Starter Yoke) |
90099-14064 |
from US $3.67 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.60 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.03 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
