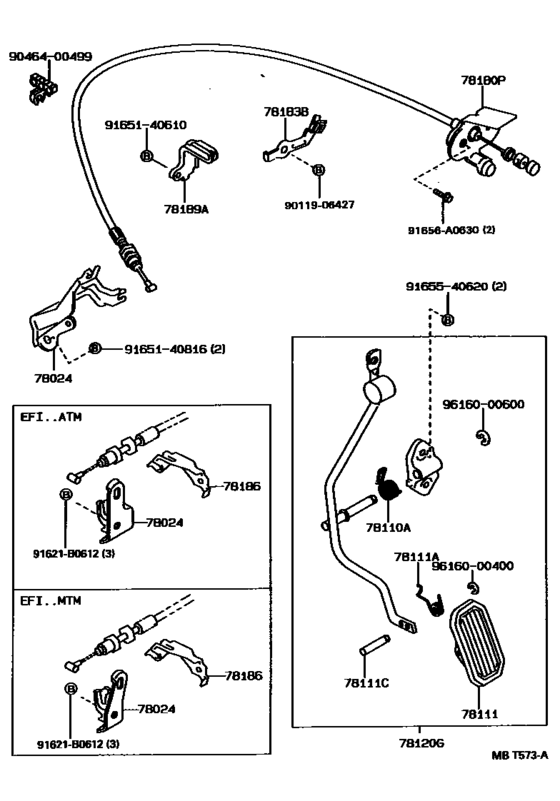

Accelerator Link ([12.1987 - ] (8712- )ST171..RHD) Diagram Toyota CORONA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- ST171
- grade
- GL
- body
- SED
- ENGINE
- 3SF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CORONA/ CARINA 2
- From
- 12.1987
- To
- 08.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corona/ Carina 2
- Driver's Position
- RHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-20100 Bracket Sub-Assy, Accelerator Control CableACCELERATOR CONTROL CABLE [12.1987 - 11.1992] ST171..CBR |
78024-20100 |
US $34.65 |
||
|
78110A
|
78110A
90508-26054 Spring, Torsion (For Accelerator Link)[12.1987 - 01.1990] ST171..4FC..EFI;AT17#,ST171..RHD..MTM |
90508-26054 |
US $6.99 |
||
|
78111
|
78111
78111-32010 Pedal, Accelerator[12.1987 - 11.1992] AT17#,CT17#,ST171 |
78111-32010 |
US $10.13 |
||
|
78111A
|
78111A
90508-18050
Spring (For Accelerator Pedal Rod)
[12.1987 - 12.1988] AT17#,CT17#,ST171 |
90508-18050 |
— | ||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[12.1987 - 11.1992] AT17#,CT17#,ST171 |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-20180 Rod Assy, Accelerator Pedal[12.1987 - 01.1990] ST171..4FC..EFI;AT17#,ST171..RHD..MTM |
78120-20180 |
US $49.50 |
||
|
78180P
|
78180P
78180-2B070 Cable Assy, Accelerator ControlACCELERATOR CONTROL [12.1987 - 11.1992] ST171..RHD..CBR |
78180-2B070 |
US $48.19 |
||
|
78183B
|
78183B
78183-20100 Clamp, Accelerator Control Cable[12.1987 - 07.1988] ST171..RHD |
78183-20100 |
US $11.65 |
||
| replacement | |||||
|
78183B
|
78183B
78183-20101 Clamp, Accelerator Control Cable[12.1987 - 07.1988] ST171..RHD |
78183-20101 |
US $11.50 |
||
|
78183B
|
78183B
78183-20120 Clamp, Accelerator Control Cable[07.1988 - 11.1992] ST171..RHD |
78183-20120 |
US $14.27 |
||
|
78189A
|
78189A
78189-32040 Support, Accelerator Control Cable, No.2[12.1987 - 11.1989] ST171..RHD..CBR |
78189-32040 |
US $6.70 |
||
| replacement | |||||
|
78189A
|
78189A
78189-32041 Clamp, Throttle Cable, No.3[12.1987 - 11.1989] ST171..RHD..CBR |
78189-32041 |
US $6.26 |
||
|
78189A
|
78189A
78189-32041 Clamp, Throttle Cable, No.3[11.1989 - 11.1992] ST171..RHD..CBR |
78189-32041 |
US $6.26 |
||
|
91621B0612
|
91621B0612
91621-B0612
New Genuine Part
|
91621-B0612 |
— | ||
| replacement | |||||
|
91621B0612
|
91621B0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
91656A0630
|
91656A0630
91656-A0630 New Genuine Part |
91656-A0630 |
US $1.46 |
||
|
9011906427
|
9011906427
90119-06427 New Genuine Part |
90119-06427 |
US $1.60 |
||
| replacement | |||||
|
9011906427
|
9011906427
91651-A0610 BOLT WWASHER |
91651-A0610 |
US $1.60 |
||
|
9046400499
|
9046400499
90464-00499
New Genuine Part
|
90464-00499 |
— | ||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9165540620
|
9165540620
91655-40620
Bolt(For Oil Receiver Pipe)
|
91655-40620 |
— | ||
| replacement | |||||
|
9165540620
|
9165540620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.19 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
