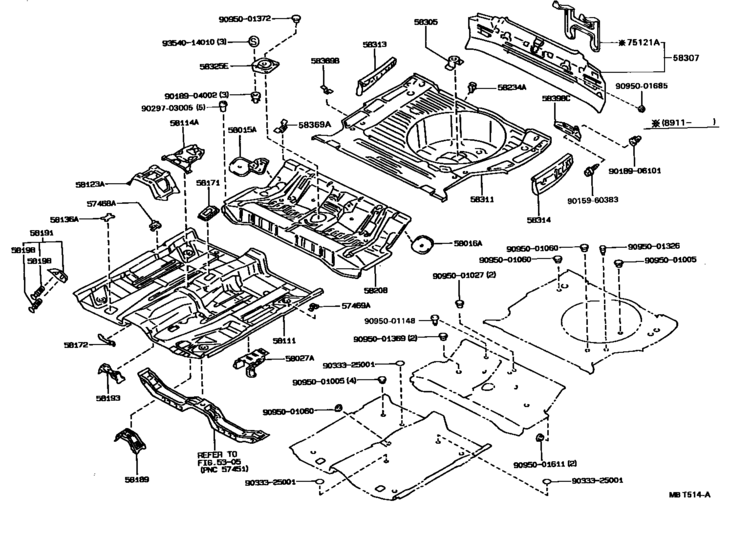

Floor Pan & Lower Back Panel ([12.1987 - ] (8712- )SED) Diagram Toyota CORONA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- ST171
- grade
- GL
- body
- SED
- ENGINE
- 3SF
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CORONA/ CARINA 2
- From
- 12.1987
- To
- 08.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corona/ Carina 2
- Driver's Position
- RHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57468A
|
57468A
57468-20030 Bracket, Front Seat, Outside, Rear Rh[12.1987 - 11.1992] AT17#,CT17#,ST171 |
57468-20030 |
US $4.66 |
||
|
57469A
|
57469A
57469-20030 Bracket, Front Seat, Outside[12.1987 - 11.1992] AT17#,CT17#,ST171 |
57469-20030 |
US $4.66 |
||
|
58015A
|
58015A
58015-32030 Reinforce Sub-Assy, Belt Anchor, No.3 Rh[12.1987 - 11.1992] AT171,CT170,ST171 |
58015-32030 |
US $55.47 |
||
|
58016A
|
58016A
58016-32020 Reinforce Sub-Assy, Belt Anchor, No.3 Lh[12.1987 - 11.1992] AT171,CT170,ST171 |
58016-32020 |
US $36.11 |
||
|
58027A
|
58027A
58027-20070 Reinforce Sub-Assy, Seat Belt Anchor[12.1987 - 11.1992] AT17#,CT17#,ST171 |
58027-20070 |
US $44.12 |
||
|
58111
|
58111
58111-20120 Pan, Front Floor[12.1987 - 11.1992] AT17#,CT17#,ST171 |
58111-20120 |
US $711.98 |
||
|
58114A
|
58114A
58114-20040 Reinforcement, Front Floor Panel[12.1987 - 11.1992] AT17#,CT17#,ST171 |
58114-20040 |
US $24.90 |
||
|
58123A
|
58123A
58123-20040 Support, Shift & Select Lever[12.1987 - 11.1992] AT17#,CT17#,ST171 |
58123-20040 |
US $48.19 |
||
|
58136A
|
58136A
58136-20010 Cover, Front Floor Service Hole[12.1987 - 11.1992] AT17#,CT17#,ST171 |
58136-20010 |
US $5.24 |
||
|
58171
|
58171
58107-20040 Reinforcement, Parking Brake Base[03.1988 - 11.1989] AT17#,CT17#,ST171 |
58107-20040 |
US $23.59 |
||
|
58171
|
58171
58107-20080
Reinforcement, Parking Brake Base
[12.1987 - 03.1988] AT17#,CT17#,ST171 |
58107-20080 |
— | ||
|
58171
|
58171
58171-20100 Reinforcement, Parking Brake Base[12.1989 - 11.1992] AT17#,CT17#,ST171 |
58171-20100 |
US $19.80 |
||
|
58172
|
58172
58172-20040 Bracket, Computer Mounting, No.3[12.1987 - 11.1992] AT17#,CT17#,ST171 |
58172-20040 |
US $7.43 |
||
|
58189
|
58189
58189-20020 Reinforcement, Exhaust Pipe Clamp Bracket[12.1987 - 11.1992] AT17#,CT17#,ST171 |
58189-20020 |
US $31.74 |
||
|
58191
|
58191
58191-20040 Footrest, Front Floor[12.1987 - 11.1992] AT17#,ST171..RHD |
58191-20040 |
US $26.50 |
||
|
58193
|
58193
58109-20090 Bracket, Instrument Panel Brace Mounting[12.1987 - 11.1992] AT17#,CT17#,ST171 |
58109-20090 |
US $29.27 |
||
|
58198
|
58198
58198-20020 Clip, Footrest[12.1987 - 11.1992] AT17#,ST171..RHD L=97.1 |
58198-20020 |
US $5.97 |
||
|
58198
|
58198
58198-20030 Clip, Footrest[12.1987 - 11.1992] AT17#,ST171..RHD L=89.1 |
58198-20030 |
US $4.37 |
||
|
58208
|
58208
58211-32050 Pan, Center Floor[12.1987 - 04.1988] AT171,CT170,ST171 |
58211-32050 |
US $384.38 |
||
|
58208
|
58208
58211-32051 Pan, Center Floor[04.1988 - 03.1992] AT171,CT170,ST171 |
58211-32051 |
US $381.47 |
||
|
58234A
|
58234A
58234-32020 Bracket, Exhaust Pipe Mounting, Inner[12.1987 - 08.1992] AT171,CT170,ST171..LB,SED |
58234-32020 |
US $21.99 |
||
|
58305
|
58305
58305-10011 Bracket Sub-Assy, Spare Wheel Clamp[12.1987 - 08.1992] AT171,CT170,ST171..LB,SED |
58305-10011 |
US $4.54 |
||
|
58307
|
58307
58307-20630 Panel Sub-Assy, Body Lower Back[12.1987 - 07.1988] AT171,CT170,ST171..SED |
58307-20630 |
US $238.78 |
||
| replacements | |||||
|
58307
|
58307
58307-20633 Panel Sub-Assy, Body Lower Back[12.1987 - 07.1988] AT171,CT170,ST171..SED |
58307-20633 |
from US $225.23 |
||
|
58307
|
58307
90467-07097-03 Clip(For Luggage Compartment Trim Rear Cover)[12.1987 - 07.1988] AT171,CT170,ST171..SED |
90467-07097-03 |
US $1.89 |
||
|
58307
|
58307
90950-01685 New Genuine Part[12.1987 - 07.1988] AT171,CT170,ST171..SED |
90950-01685 |
US $1.89 |
||
|
58307
|
58307
58307-20631 Panel Sub-Assy, Body Lower Back[07.1988 - 07.1989] AT171,CT170,ST171..SED |
58307-20631 |
US $238.78 |
||
| replacements | |||||
|
58307
|
58307
58307-20633 Panel Sub-Assy, Body Lower Back[07.1988 - 07.1989] AT171,CT170,ST171..SED |
58307-20633 |
from US $225.23 |
||
|
58307
|
58307
90467-07097-03 Clip(For Luggage Compartment Trim Rear Cover)[07.1988 - 07.1989] AT171,CT170,ST171..SED |
90467-07097-03 |
US $1.89 |
||
|
58307
|
58307
90950-01685 New Genuine Part[07.1988 - 07.1989] AT171,CT170,ST171..SED |
90950-01685 |
US $1.89 |
||
|
58307
|
58307
58307-20632 Panel Sub-Assy, Body Lower Back[07.1989 - 10.1989] AT171,CT170,ST171..SED |
58307-20632 |
US $238.78 |
||
| replacements | |||||
|
58307
|
58307
58307-20633 Panel Sub-Assy, Body Lower Back[07.1989 - 10.1989] AT171,CT170,ST171..SED |
58307-20633 |
from US $225.23 |
||
|
58307
|
58307
90950-01685 New Genuine Part[07.1989 - 10.1989] AT171,CT170,ST171..SED |
90950-01685 |
US $1.89 |
||
|
58307
|
58307
58307-20633 Panel Sub-Assy, Body Lower Back[10.1989 - 11.1989] AT171,CT170,ST171..SED |
58307-20633 |
from US $225.23 |
||
|
58307
|
58307
58307-20850 Panel Sub-Assy, Body Lower Back[11.1989 - 08.1992] ST171..SED..EFI;AT171,ST171..SED..GCC; AT171,CT170,ST171..SED..GEN..(CBR,DSL) EXTERIOR PACKAGE |
58307-20850 |
US $235.87 |
||
|
58311
|
58311
58311-32090 Pan, Rear Floor[12.1987 - 08.1992] AT171,CT170,ST171..LB,SED |
58311-32090 |
US $505.23 |
||
|
58313
|
58313
58313-20210 Panel, Rear Floor Side, Rh[12.1987 - 08.1992] AT171,CT170,ST171..SED |
58313-20210 |
US $40.77 |
||
|
58314
|
58314
58314-20190 Panel, Rear Floor Side, Lh[12.1987 - 08.1992] AT171,CT170,ST171..SED |
58314-20190 |
US $40.77 |
||
|
58325E
|
58325E
58325-32020 Cover, Rear Floor Service Hole[12.1987 - 11.1992] AT171,CT170,ST171 |
58325-32020 |
US $27.52 |
||
|
58369A
|
58369A
58369-32010 Bracket, Insulator Heat[12.1987 - 11.1992] AT171,CT170,ST171 |
58369-32010 |
US $3.32 |
||
|
58369B
|
58369B
58369-32010 Bracket, Insulator Heat[12.1987 - 08.1992] AT171,CT170,ST171..LB,SED |
58369-32010 |
US $3.32 |
||
|
58398C
|
58398C
58398-20050 Cover, Body Lower Back, Lh[12.1987 - 08.1992] AT171,CT170,ST171..LB,SED |
58398-20050 |
US $52.27 |
||
|
75121A
|
75121A
75121-20150 Bracket, Rear License Plate[11.1989 - 08.1992] ST171..EFI;AT171,ST171..GCC; AT171,CT170,ST171..(LB,SED)..GEN..(CBR,DSL) EXTERIOR PACKAGE |
75121-20150 |
US $28.54 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.38 |
||
|
9018904002
|
9018904002
90189-04002 GROMMET |
90189-04002 |
from US $1.92 |
||
|
9018906101
|
9018906101
90189-06101 New Genuine Part |
90189-06101 |
US $1.89 |
||
|
9029703005
|
9029703005
90297-03005 New Genuine Part |
90297-03005 |
US $1.02 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.31 |
||
|
9095001005
|
9095001005
90950-01005
PLUGHOLE
|
90950-01005 |
— | ||
| replacement | |||||
|
9095001005
|
9095001005
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.71 |
||
|
9095001027
|
9095001027
90950-01027 Plug, Hole, No.3(For Dash Panel) |
90950-01027 |
US $3.20 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001148
|
9095001148
90950-01148 New Genuine Part |
90950-01148 |
US $1.60 |
||
|
9095001326
|
9095001326
90950-01326 New Genuine Part |
90950-01326 |
US $3.84 |
||
|
9095001369
|
9095001369
90950-01369 New Genuine Part |
90950-01369 |
US $7.13 |
||
| replacement | |||||
|
9095001369
|
9095001369
90950-01979 New Genuine Part |
90950-01979 |
US $6.64 |
||
|
9095001372
|
9095001372
90950-01372 Cover, Console Box Hole |
90950-01372 |
US $6.99 |
||
| replacement | |||||
|
9095001372
|
9095001372
90950-01959 Cover, Console Box Hole |
90950-01959 |
from US $1.92 |
||
|
9095001611
|
9095001611
90950-01611 New Genuine Part |
90950-01611 |
US $2.24 |
||
|
9095001685
|
9095001685
90950-01685 New Genuine Part |
90950-01685 |
US $1.89 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.92 |
||
