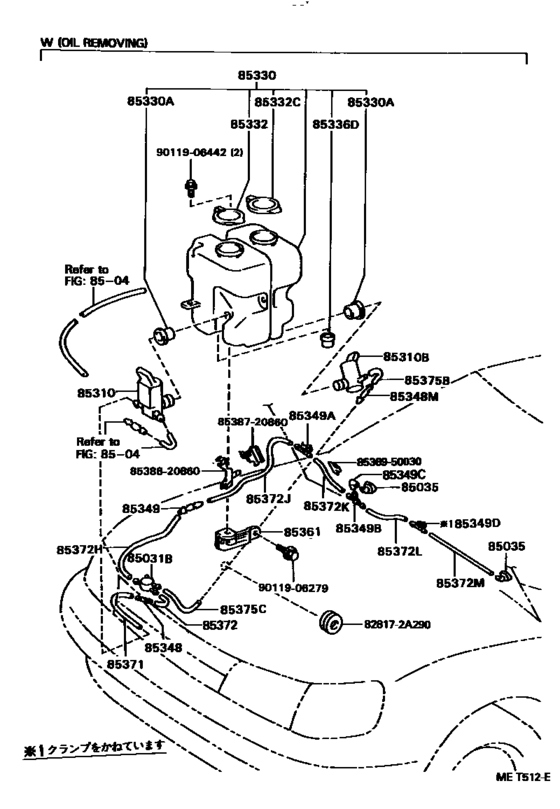

Windshield Washer ([02.1992 - 01.1996] ｱﾘ(ﾕﾏｸﾄﾘ ｳｵﾂｼﾔ) (9202-9601)EXG,TYPE2) Diagram Toyota CORONA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- ST190
- grade
- EXG
- body
- SED
- ENGINE
- 4SFE
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 02.1992
- To
- 01.1996
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85031B
|
85031B
85375-30240
Valve Sub-Assy, Washer
[02.1992 - 02.1994] ST190,191..EXG,TYPE2 |
85375-30240 |
— | ||
|
85035
|
85035
85381-12050 Nozzle Sub-Assy, Washer[11.1994 - 01.1996] AT190,CT19#,ST19# 右側 |
85381-12050 |
from US $17.28 |
||
|
85035
|
85035
85381-20020
Nozzle Sub-Assy, Washer
[02.1992 - 02.1994] AT190,CT19#,ST19# 右側 |
85381-20020 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-12050 Nozzle Sub-Assy, Washer[02.1992 - 02.1994] AT190,CT19#,ST19# 右側 |
85381-12050 |
from US $17.28 |
||
|
85035
|
85035
85382-20020
Nozzle Sub-Assy, Washer
[02.1992 - 02.1994] AT190,CT19#,ST19# 左側 |
85382-20020 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-12050 Nozzle Sub-Assy, Washer[02.1992 - 02.1994] AT190,CT19#,ST19# 左側 |
85381-12050 |
from US $17.28 |
||
|
85310
|
85310
85310-20170
Motor And Pump Assy, Windshield Washer
[02.1992 - 07.1992] ST190,191..EXG,TYPE1,TYPE2; AT190,CT190,ST19#..EXS ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
85310-20170 |
— | ||
|
85310
|
85310
85330-12280 Motor And Pump Assy, Windshield Washer[07.1992 - 01.1996] ST190,191..EXG,TYPE1,TYPE2 |
85330-12280 |
US $76.88 |
||
|
85310B
|
85310B
85330-50020 Motor And Pump Assy, Windshield Washer[02.1992 - 02.1994] ST190,191..EXG,TYPE2 |
85330-50020 |
US $69.54 |
||
|
85330
|
85330
85315-20330
Jar Assy, Windshield Washer
[02.1994 - 01.1996] AT190,CT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 ｶﾝﾚｲﾁ ｼﾖｳ |
85315-20330 |
— | ||
|
85330
|
85330
85315-20350
Jar Assy, Windshield Washer
[02.1992 - 02.1994] ST190,191..EXG,TYPE2 |
85315-20350 |
— | ||
|
85330
|
85330
85315-20470
Jar Assy, Windshield Washer
[02.1994 - 01.1996] AT190,CT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
85315-20470 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[02.1994 - 01.1996] AT190,CT19#,ST19# |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[02.1994 - 01.1996] AT190,CT19#,ST19# |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[02.1994 - 01.1996] AT190,CT19#,ST19# |
90068-32002 |
US $7.46 |
||
|
85332
|
85332
85316-20300 Cap, Windshield Washer Jar[10.1993 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
85316-20300 |
US $3.14 |
||
|
85332
|
85332
85316-20340
Cap, Windshield Washer Jar
[02.1992 - 10.1993] AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
85316-20340 |
— | ||
| replacement | |||||
|
85332
|
85332
85316-20300 Cap, Windshield Washer Jar[02.1992 - 10.1993] AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
85316-20300 |
US $3.14 |
||
|
85332C
|
85332C
85316-20350
Cap, Front Washer Tank
[02.1992 - 02.1994] ST190,191..EXG,TYPE2 |
85316-20350 |
— | ||
|
85336D
|
85336D
85336-20340
Packing, Windshield Washer Jar
[02.1992 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
85336-20340 |
— | ||
|
85348
|
85348
85334-22470 Joint, Windshield Washer Hose, No.1[02.1992 - 02.1994] CT190,ST190,191..EXG,KYO,TYPE2 |
85334-22470 |
from US $0.84 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[02.1994 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
85349-89122 |
from US $1.25 |
||
|
85348M
|
85348M
85334-22470 Joint, Windshield Washer Hose, No.1[02.1992 - 02.1994] ST190,191..EXG,TYPE2 |
85334-22470 |
from US $0.84 |
||
|
85349
|
85349
85334-22470 Joint, Windshield Washer Hose, No.1[02.1992 - 02.1994] AT190,CT190,ST19#..EXG,EXS,GX,SELS,TYPE2 |
85334-22470 |
from US $0.84 |
||
|
85349
|
85349
85375-10260 Joint, Windshield Washer Hose, No.1[02.1994 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2; CT190,ST190..KYO ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
85375-10260 |
from US $1.62 |
||
|
85349A
|
85349A
85375-20800 Joint, Windshield Washer Hose, No.1[02.1994 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
85375-20800 |
from US $1.54 |
||
|
85349B
|
85349B
85375-28110 Joint, Windshield Washer Hose, No.1[02.1992 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
85375-28110 |
US $3.36 |
||
|
85349C
|
85349C
85355-14481 Joint, Windshield Washer Elbow, No.1[02.1992 - 02.1994] CT195;CT190,ST190,191..EXG,KYO,TYPE1,TYPE2; AT190,CT190,ST190,195..GX,SELS ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ; AT190,CT190,ST19#..EXS ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ OR ｱﾘ(*RW) |
85355-14481 |
US $0.98 |
||
|
85349D
|
85349D
85375-17050 Joint, Windshield Washer Hose, No.1[02.1992 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
85375-17050 |
US $0.96 |
||
|
85361
|
85361
85361-20830 Holder, Windshield Washer[02.1994 - 01.1996] AT190,CT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 ｶﾝﾚｲﾁ ｼﾖｳ |
85361-20830 |
US $9.03 |
||
|
85361
|
85361
85361-20840 Holder, Windshield Washer[02.1992 - 01.1996] AT190,CT190,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
85361-20840 |
US $8.59 |
||
|
85371
|
85371
90446-07001 Hose, Windshield Washer (From Motor To Joint)[02.1992 - 02.1994] ST190,191..EXG,TYPE2; AT190,CT190,ST19#..EXS,GX,SELS |
90446-07001 |
from US $2.10 |
||
|
85372
|
85372
85317-20350
Hose, Windshield Washer (From Joint To Joint), No.1
[02.1992 - 02.1994] ST190,191..EXG,TYPE2 |
85317-20350 |
— | ||
|
85372H
|
85372H
90099-33080 Hose, Windshield Washer (From Motor To Joint)[02.1992 - 02.1994] ST190,191..EXG,TYPE2 Ｌ＝１４５０; AT190,CT190,ST19#..EXS,GX,SELS Ｌ＝１４５０; ST190..TYPE1 Ｌ＝１４５０; AT190,CT190,ST19#..EXS,GX,SELS,TYPE1 Ｌ＝１４５０,ｶﾝﾚｲﾁ ｼﾖｳ; AT190,CT190,ST19#..EXS Ｌ＝１４５０,ｱﾘ(*RW) |
90099-33080 |
from US $5.95 |
||
|
85372J
|
85372J
90099-33080 Hose, Windshield Washer (From Motor To Joint)[02.1992 - 02.1994] ST190,191..EXG,TYPE2 Ｌ＝１４５０ |
90099-33080 |
from US $5.95 |
||
|
85372J
|
85372J
90446-07001 Hose, Windshield Washer (From Motor To Joint)[02.1994 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
90446-07001 |
from US $2.10 |
||
|
85372K
|
85372K
90099-33080 Hose, Windshield Washer (From Motor To Joint)[02.1992 - 06.1992] ST190,191..EXG,TYPE2 Ｌ＝１４５０ |
90099-33080 |
from US $5.95 |
||
|
85372K
|
85372K
90446-07001 Hose, Windshield Washer (From Motor To Joint)[02.1994 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 |
90446-07001 |
from US $2.10 |
||
|
85372L
|
85372L
90099-59027
Hose, Windshield Washer (From Joint To Joint), No.5
[02.1994 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 ＊Ｈ，Ｌ＝２３０ |
90099-59027 |
— | ||
| replacement | |||||
|
85372L
|
85372L
90446-07001 Hose, Windshield Washer (From Motor To Joint)[02.1994 - 01.1996] AT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2 ＊Ｈ，Ｌ＝２３０ |
90446-07001 |
from US $2.10 |
||
|
85372M
|
85372M
90099-33080 Hose, Windshield Washer (From Motor To Joint)[02.1992 - 02.1994] CT195 Ｌ＝１４５０; ST190..TYPE1 Ｌ＝１４５０; AT190,CT190,ST19#..EXG,EXS,GX,SELS,TYPE2 Ｌ＝１４５０ |
90099-33080 |
from US $5.95 |
||
|
85372M
|
85372M
90446-07001 Hose, Windshield Washer (From Motor To Joint)[02.1994 - 01.1996] ST190,191..EXG,TYPE1,TYPE2 ＊Ｈ，Ｌ＝３６０,ｶﾝﾚｲﾁ ｼﾖｳ,左側 |
90446-07001 |
from US $2.10 |
||
|
85375B
|
85375B
85317-20350
Hose, Windshield Washer (From Joint To Joint), No.1
[02.1992 - 02.1994] ST190,191..EXG,TYPE2 |
85317-20350 |
— | ||
|
85375C
|
85375C
90099-33080 Hose, Windshield Washer (From Motor To Joint)[02.1992 - 02.1994] ST190,191..EXG,TYPE2 |
90099-33080 |
from US $5.95 |
||
|
828172A290
|
828172A290
82817-2A290 Protector, Wiring Harness, No.1 |
82817-2A290 |
US $5.24 |
||
|
8536950030
|
8536950030
85369-50030
Clamp
|
85369-50030 |
— | ||
|
8538720860
|
8538720860
85387-20860
Clamp No.1 (For Windseield Washer)
|
85387-20860 |
— | ||
|
8538820860
|
8538820860
85388-20860
Clamp No.2 (For Windseield Washer)
|
85388-20860 |
— | ||
|
9011906279
|
9011906279
90119-06279
New Genuine Part
|
90119-06279 |
— | ||
|
9011906442
|
9011906442
90119-06442 BOLT WWASHER |
90119-06442 |
from US $1.01 |
||
