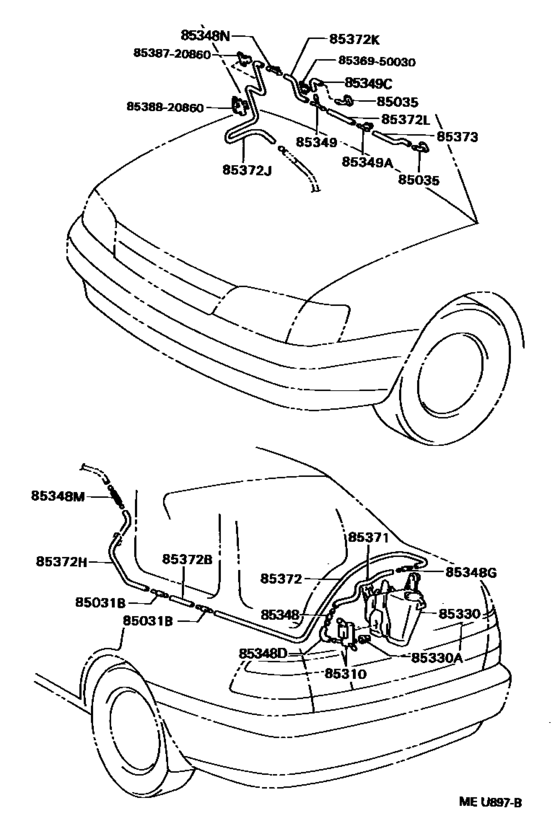

Windshield Washer ([11.1992 - ] (9211- )KYO) Diagram Toyota CORONA
- Year
- 1992 - 1996
- Sales region
- Japan
- Frame
- ST190
- grade
- KYO
- body
- SED
- ENGINE
- 4SFE
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 11.1992
- To
- 01.1996
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85031B
|
85031B
85031-12250
Valve Sub-Assy, Washer
[11.1992 - 01.1996] CT190,ST190..KYO |
85031-12250 |
— | ||
|
85035
|
85035
85381-12050 Nozzle Sub-Assy, Washer[02.1994 - 11.1994] CT190,ST190..KYO 右側 |
85381-12050 |
from US $17.28 |
||
|
85035
|
85035
85381-20020
Nozzle Sub-Assy, Washer
[02.1992 - 02.1994] AT190,CT19#,ST19# 右側 |
85381-20020 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-12050 Nozzle Sub-Assy, Washer[02.1992 - 02.1994] AT190,CT19#,ST19# 右側 |
85381-12050 |
from US $17.28 |
||
|
85035
|
85035
85382-20020
Nozzle Sub-Assy, Washer
[02.1992 - 02.1994] AT190,CT19#,ST19# 左側 |
85382-20020 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-12050 Nozzle Sub-Assy, Washer[02.1992 - 02.1994] AT190,CT19#,ST19# 左側 |
85381-12050 |
from US $17.28 |
||
|
85035
|
85035
85382-20040
Nozzle Sub-Assy, Washer
[02.1994 - 01.1996] CT190,ST190..KYO 左側 |
85382-20040 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-12050 Nozzle Sub-Assy, Washer[02.1994 - 01.1996] CT190,ST190..KYO 左側 |
85381-12050 |
from US $17.28 |
||
|
85310
|
85310
85310-20170
Motor And Pump Assy, Windshield Washer
[07.1992 - 02.1994] CT190,ST190..KYO ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
85310-20170 |
— | ||
|
85310
|
85310
85310-20190
Motor And Pump Assy, Windshield Washer
[11.1992 - 01.1996] CT190,ST190..KYO |
85310-20190 |
— | ||
|
85310
|
85310
85330-12280 Motor And Pump Assy, Windshield Washer[02.1994 - 01.1996] AT190,CT19#,ST19#..EXS,KYO,SELS ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
85330-12280 |
US $76.88 |
||
|
85330
|
85330
85325-20020
Jar Assy, Windshield Washer
[11.1992 - 01.1996] CT190,ST190..KYO |
85325-20020 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[02.1992 - 02.1994] CT195..EXS;CT190,ST190..KYO,TYPE1 |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[02.1992 - 02.1994] CT195..EXS;CT190,ST190..KYO,TYPE1 |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[02.1992 - 02.1994] CT195..EXS;CT190,ST190..KYO,TYPE1 |
90068-32002 |
US $7.46 |
||
|
85348
|
85348
85334-22470 Joint, Windshield Washer Hose, No.1[02.1992 - 02.1994] CT190,ST190,191..EXG,KYO,TYPE2 |
85334-22470 |
from US $0.84 |
||
|
85348D
|
85348D
85355-14481 Joint, Windshield Washer Elbow, No.1[11.1992 - 02.1994] CT190,ST190..KYO ｱﾘ(*RW) |
85355-14481 |
US $0.98 |
||
|
85348D
|
85348D
85355-32110 Joint, Windshield Washer Elbow, No.1[11.1992 - 01.1996] CT190,ST190..KYO |
85355-32110 |
from US $1.40 |
||
|
85348G
|
85348G
85349-89122 Valve Sub-Assy, Washer[11.1992 - 01.1996] CT190,ST190..KYO |
85349-89122 |
from US $1.25 |
||
|
85348M
|
85348M
85349-32150 Joint, Windshield Washer Hose, No.1[11.1992 - 01.1996] CT190,ST190..KYO |
85349-32150 |
US $1.42 |
||
|
85348N
|
85348N
85375-20800 Joint, Windshield Washer Hose, No.1[11.1992 - 01.1996] CT190,ST190..KYO |
85375-20800 |
from US $1.54 |
||
|
85349
|
85349
85375-10260 Joint, Windshield Washer Hose, No.1[03.1993 - 02.1994] AT190,CT190,ST19#..EXS,KYO ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
85375-10260 |
from US $1.62 |
||
|
85349
|
85349
85375-28110 Joint, Windshield Washer Hose, No.1[11.1992 - 01.1996] CT190,ST190..KYO |
85375-28110 |
US $3.36 |
||
|
85349A
|
85349A
85375-17050 Joint, Windshield Washer Hose, No.1[11.1992 - 01.1996] CT190,ST190..KYO |
85375-17050 |
US $0.96 |
||
|
85349C
|
85349C
85355-14481 Joint, Windshield Washer Elbow, No.1[02.1992 - 02.1994] CT195;CT190,ST190,191..EXG,KYO,TYPE1,TYPE2; AT190,CT190,ST190,195..GX,SELS ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ; AT190,CT190,ST19#..EXS ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ OR ｱﾘ(*RW) |
85355-14481 |
US $0.98 |
||
|
85371
|
85371
90099-33080 Hose, Windshield Washer (From Motor To Joint)[11.1992 - 01.1996] CT190,ST190..KYO Ｌ＝１４５０,ｱﾘ(*RW) |
90099-33080 |
from US $5.99 |
||
|
85372
|
85372
90099-33570
Hose, Rear Washer (From Motor To Joint)
[02.1994 - 01.1996] CT190,ST190..KYO 長さ＝３７０５ |
90099-33570 |
— | ||
| replacement | |||||
|
85372
|
85372
90099-33595
Hose, Rear Washer (From Joint To Joint), No.1
[02.1994 - 01.1996] CT190,ST190..KYO 長さ＝３７０５ |
90099-33595 |
— | ||
|
85372
|
85372
90099-33641
Hose, Windshield Washer (From Joint To Joint), No.1
[11.1992 - 02.1994] CT190,ST190..KYO ＊Ｈ，Ｌ＝２６８０ |
90099-33641 |
— | ||
| replacement | |||||
|
85372
|
85372
90099-33589 Hose, Rear Washer (From Motor To Joint)[11.1992 - 02.1994] CT190,ST190..KYO ＊Ｈ，Ｌ＝２６８０ |
90099-33589 |
from US $3.84 |
||
|
85372B
|
85372B
90446-07001 Hose, Windshield Washer (From Motor To Joint)[11.1992 - 01.1996] CT190,ST190..KYO |
90446-07001 |
from US $2.10 |
||
|
85372H
|
85372H
90446-07001 Hose, Windshield Washer (From Motor To Joint)[11.1992 - 12.1992] CT190,ST190..KYO |
90446-07001 |
from US $2.10 |
||
|
85372H
|
85372H
90446-07013
Hose, Windshield Washer (From Joint To Joint), No.3
[12.1992 - 01.1996] CT190,ST190..KYO 長さ＝７５０ |
90446-07013 |
— | ||
|
85372J
|
85372J
90099-33080 Hose, Windshield Washer (From Motor To Joint)[11.1992 - 12.1992] CT190,ST190..KYO Ｌ＝１４５０ |
90099-33080 |
from US $5.99 |
||
|
85372K
|
85372K
90099-33080 Hose, Windshield Washer (From Motor To Joint)[11.1992 - 01.1996] CT190,ST190..KYO Ｌ＝１４５０ |
90099-33080 |
from US $5.99 |
||
|
85372L
|
85372L
90099-33080 Hose, Windshield Washer (From Motor To Joint)[11.1992 - 01.1996] CT190,ST190..KYO Ｌ＝１４５０ |
90099-33080 |
from US $5.99 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[11.1992 - 01.1996] CT190,ST190..KYO Ｌ＝１４５０ |
90099-33080 |
from US $5.99 |
||
|
8536950030
|
8536950030
85369-50030
Clamp
|
85369-50030 |
— | ||
|
8538720860
|
8538720860
85387-20860
Clamp No.1 (For Windseield Washer)
|
85387-20860 |
— | ||
|
8538820860
|
8538820860
85388-20860
Clamp No.2 (For Windseield Washer)
|
85388-20860 |
— | ||
