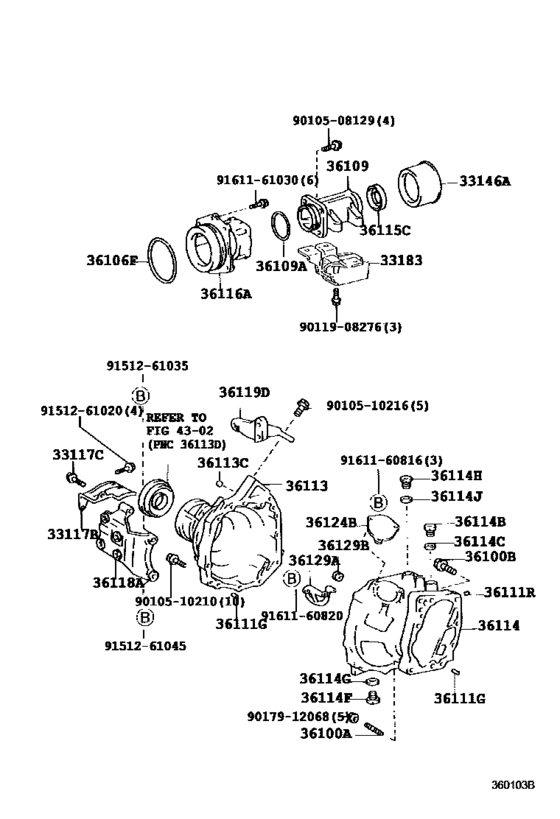

Transfer Case & Extension Housing ([01.1996 - 12.1997] (9601-9712)ST215..MTM) Diagram Toyota CORONA
- Year
- 1996 - 2001
- Sales region
- Japan
- Frame
- ST215
- grade
- PRME
- ENGINE
- 3SFE
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 01.1996
- To
- 12.2001
- Vehicle Model
- Corona
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33117B
|
33117B
33117-32030 Protector, Transfer Case[01.1996 - 12.1997] ST215 |
33117-32030 |
US $29.70 |
||
|
33117C
|
33117C
90105-08040
Bolt(For Plate Bolt Lock)
[01.1996 - 12.1997] ST215 |
90105-08040 |
— | ||
| replacement | |||||
|
33117C
|
33117C
91641-H0820 Bolt[01.1996 - 12.1997] ST215 |
91641-H0820 |
from US $0.92 |
||
|
33146A
|
33146A
33146-30020 Deflector, Extension Housing Dust(Mtm)[01.1996 -] CT215,216,ST215 |
33146-30020 |
from US $15.84 |
||
|
33183
|
33183
33183-20030 Damper, Transfer Dynamic[01.1996 - 12.1997] ST215 |
33183-20030 |
US $117.94 |
||
| replacement | |||||
|
33183
|
33183
33183-21030 Damper, Transfer Dynamic[01.1996 - 12.1997] ST215 |
33183-21030 |
US $72.80 |
||
|
33183
|
33183
33183-21020 Damper, Transfer Dynamic[04.1998 -] CT216,ST215 ホワイト ペイント |
33183-21020 |
US $117.94 |
||
|
33183
|
33183
33183-21030 Damper, Transfer Dynamic[12.1997 - 04.1998] ST215 イエロー ペイント |
33183-21030 |
US $72.80 |
||
|
36100A
|
36100A
90116-12018 Bolt, Stud (For Transfer & Transaxle Setting)[01.1996 - 12.1997] CT215,ST215..MTM ネジ部長さ＝２７ ＆ ２７，長さ＝７５ |
90116-12018 |
US $5.53 |
||
|
36100A
|
36100A
90116-12028 Bolt, Stud (For Transfer & Transaxle Setting)[12.1997 -] CT216,ST215 ネジ部長さ＝２２ ＆ ２２，長さ＝６９ |
90116-12028 |
from US $3.72 |
||
|
36100A
|
36100A
90116-12034 Bolt, Stud (For Transfer & Transaxle Setting)[12.1997 -] CT216,ST215 ネジ部長さ＝１９ ＆ １９，長さ＝４７ |
90116-12034 |
from US $1.74 |
||
|
36100A
|
36100A
90116-12041 Bolt, Stud (For Transfer & Transaxle Setting)[12.1997 -] CT216,ST215 ネジ部長さ＝３０ ＆ ２２，長さ＝６４ |
90116-12041 |
from US $2.93 |
||
|
36100B
|
36100B
90105-12137 Bolt (For Transfer & Transaxle Setting)[01.1996 - 12.1997] CT215,ST215..MTM ＊１２−１．２５ＰＸ５２−３０ |
90105-12137 |
US $4.08 |
||
|
36106F
|
36106F
90301-99049 Ring, O (For Transfer Pinion Bearing Cage)[01.1996 - 12.1997] CT215,ST215..MTM |
90301-99049 |
US $4.89 |
||
|
36109
|
36109
36109-20012 Housing Sub-Assy, Transfer Extension[01.1996 - 12.1997] CT215,ST215..MTM |
36109-20012 |
US $158.70 |
||
|
36109
|
36109
36109-33010
Housing Sub-Assy, Transfer Extension
[12.1997 -] CT216,ST215 |
36109-33010 |
— | ||
| replacement | |||||
|
36109
|
36109
36109-48010 Housing Sub-Assy, Transfer Extension[12.1997 -] CT216,ST215 |
36109-48010 |
US $138.03 |
||
|
36109A
|
36109A
90301-63005 Ring, O (For Transfer Extension Housing)[01.1996 - 12.1997] CT215,ST215 |
90301-63005 |
US $2.62 |
||
|
36111G
|
36111G
90250-08030
Pin, Straight(For Crankshaft)
[12.1997 -] CT216,ST215 長さ＝１６，外径＝８ |
90250-08030 |
— | ||
| replacement | |||||
|
36111G
|
36111G
90250-08046 Pin, Straight(For Intake Manifold Setting)[12.1997 -] CT216,ST215 長さ＝１６，外径＝８ |
90250-08046 |
from US $0.86 |
||
|
36111G
|
36111G
90250-10017 Pin, Straight(For Clutch Housing Set)[01.1996 - 12.1997] CT215,ST215..MTM 長さ＝２０，外径＝１０ |
90250-10017 |
from US $2.08 |
||
|
36111G
|
36111G
90250-12005
Pin, Straight(For Manual Transmission Case)
[01.1996 - 12.1997] CT215,ST215 長さ＝２４，外径＝１２ |
90250-12005 |
— | ||
|
36111R
|
36111R
90331-08002 Plug, Tight(For Front Transaxle Case)[01.1996 - 12.1997] CT215,ST215..MTM |
90331-08002 |
US $1.46 |
||
|
36113
|
36113
36113-20040 Case, Transfer, Rh[01.1996 - 12.1997] ST215..MTM |
36113-20040 |
US $311.58 |
||
|
36113C
|
36113C
90331-14004 Plug, Manual Transmission Case[01.1996 - 12.1997] CT215,ST215..MTM |
90331-14004 |
US $4.89 |
||
|
36114
|
36114
36114-12050 Case, Transfer, Lh[01.1996 - 12.1997] CT215,ST215..MTM |
36114-12050 |
US $444.08 |
||
|
36114B
|
36114B
90341-18045 Plug(For Manual Transmission Filler)[12.1997 -] CT216,ST215 |
90341-18045 |
US $4.96 |
||
|
36114B
|
36114B
90341-22001
Plug, W/head Straight Screw, No.3(For Cylinder Block)
[01.1996 - 12.1997] CT215,ST215..MTM |
90341-22001 |
— | ||
|
36114C
|
36114C
12157-10010 Gasket (For Drain Plug)[12.1997 -] CT216,ST215 |
12157-10010 |
from US $1.60 |
||
|
36114C
|
36114C
90430-22002 Gasket(For Manifold Plug)[01.1996 - 12.1997] CT215,ST215..MTM |
90430-22002 |
US $4.48 |
||
|
36114F
|
36114F
90341-18006 Plug (No magnet)[01.1996 - 12.1997] CT215,ST215..MTM |
90341-18006 |
from US $2.76 |
||
|
36114F
|
36114F
90341-18057 Drain Plug (with Magnet)[12.1997 -] CT216,ST215 |
90341-18057 |
from US $5.60 |
||
|
36114G
|
36114G
12157-10010 Gasket (For Drain Plug)[12.1997 -] CT216,ST215 |
12157-10010 |
from US $1.60 |
||
|
36114G
|
36114G
90430-18008 Gasket[01.1996 - 12.1997] CT215,ST215 |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
36114G
|
36114G
90430-T0021
Gasket(For Manual Transmission Filler Plug)
[01.1996 - 12.1997] CT215,ST215 |
90430-T0021 |
— | ||
|
36114H
|
36114H
90341-18006 Plug (No magnet)[12.1997 -] CT216,ST215 |
90341-18006 |
from US $2.76 |
||
|
36114H
|
36114H
90341-18023 Plug, W/head Straight Screw, No.1[01.1996 - 12.1997] CT215,ST215..MTM |
90341-18023 |
from US $3.04 |
||
|
36114J
|
36114J
12157-10010 Gasket (For Drain Plug)[12.1997 -] CT216,ST215 |
12157-10010 |
from US $1.60 |
||
|
36114J
|
36114J
90430-18008 Gasket[01.1996 - 12.1997] CT215,ST215..MTM |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
36114J
|
36114J
90430-T0021
Gasket(For Manual Transmission Filler Plug)
[01.1996 - 12.1997] CT215,ST215..MTM |
90430-T0021 |
— | ||
|
36115C
|
36115C
90311-38032 Seal, Oil(For Manual Transmission Extension Housing)[01.1996 - 12.1997] CT215,ST215 |
90311-38032 |
from US $6.40 |
||
|
36115C
|
36115C
90311-38062
Seal, Type T Oil (For Transfer Extension Housing)
[12.1997 -] CT216,ST215 |
90311-38062 |
— | ||
| replacement | |||||
|
36115C
|
36115C
90311-38090 Seal, Type T Oil (For Transfer Extension Housing)[12.1997 -] CT216,ST215 |
90311-38090 |
from US $4.64 |
||
|
36116A
|
36116A
36116-12010 Cage Sub-Assy, Transfer Pinion Bearing[01.1996 - 12.1997] CT215,ST215..MTM |
36116-12010 |
US $126.67 |
||
|
36118A
|
36118A
36118-21010 Plate, Transfer Stiffener, Rh[12.1997 -] ST215 |
36118-21010 |
US $96.10 |
||
|
36118A
|
36118A
36118-32011
Plate, Transfer Stiffener, Rh
[01.1996 - 12.1997] ST215..MTM |
36118-32011 |
— | ||
|
36119D
|
36119D
36119-21010 Plate, Transfer Stiffener, Center[12.1997 -] ST215 |
36119-21010 |
US $106.29 |
||
|
36119D
|
36119D
36119-32010
Plate, Transfer Stiffener, Center
[01.1996 - 12.1997] ST215..MTM |
36119-32010 |
— | ||
|
36124B
|
36124B
36124-12010 Cover, Transfer Inspection Hole[01.1996 - 12.1997] CT215,ST215..MTM |
36124-12010 |
US $6.84 |
||
|
36129A
|
36129A
36129-20010
Tube, Transfer Oil
[01.1996 - 12.1997] CT215,ST215..MTM |
36129-20010 |
— | ||
|
36129B
|
36129B
90540-06027
Cushion (For Transfer Oil Tube)
[01.1996 - 12.1997] CT215,ST215..MTM |
90540-06027 |
— | ||
|
9010508129
|
9010508129
90105-08129
Bolt(For Alternator)
|
90105-08129 |
— | ||
| replacement | |||||
|
9010508129
|
9010508129
91511-80830 Bolt(For Alternator) |
91511-80830 |
US $3.20 |
||
|
9010510210
|
9010510210
90105-10210 New Genuine Part |
90105-10210 |
US $3.20 |
||
|
9010510216
|
9010510216
90105-10216 Bolt (For Transfer Oil Receiver No.1) |
90105-10216 |
US $2.62 |
||
| replacement | |||||
|
9010510216
|
9010510216
91512-B1030 Bolt (For Transfer Oil Receiver No.1) |
91512-B1030 |
US $2.40 |
||
|
9011908276
|
9011908276
90119-08276
New Genuine Part
|
90119-08276 |
— | ||
| replacement | |||||
|
9011908276
|
9011908276
90119-08336 BOLT |
90119-08336 |
US $2.56 |
||
|
9017912068
|
9017912068
90179-12068 Nut(For Transaxle Case Cover) |
90179-12068 |
US $1.76 |
||
|
9151261020
|
9151261020
91512-61020 Bolt (For Transfer Stiffener Plate) |
91512-61020 |
US $2.33 |
||
| replacement | |||||
|
9151261020
|
9151261020
91512-B1020 Bolt(For Front Transaxle Case Cover) |
91512-B1020 |
US $1.89 |
||
|
9151261035
|
9151261035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $1.07 |
||
| replacement | |||||
|
9151261035
|
9151261035
90080-10204 New Genuine Part |
90080-10204 |
US $2.97 |
||
|
9151261045
|
9151261045
91512-61045 Bolt |
91512-61045 |
US $2.24 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.13 |
||
