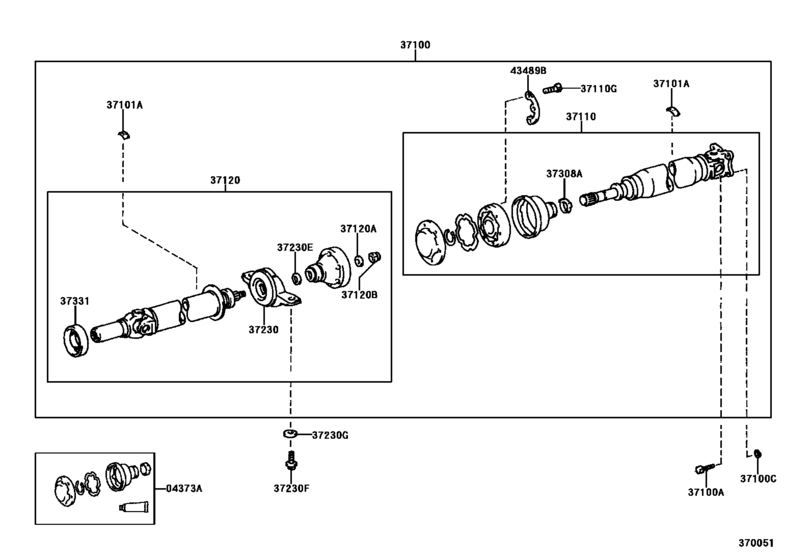

Propeller Shaft & Universal Joint ([12.1997 - ] (9712- )CT216,ST215) Diagram Toyota CORONA
- Year
- 1996 - 2001
- Sales region
- Japan
- Frame
- ST215
- grade
- PRME
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- Model
- CORONA
- From
- 01.1996
- To
- 12.2001
- Vehicle Model
- Corona
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04373A
|
04373A
04373-12010 Boot Kit, Universal[01.1996 -] CT215,216,ST215 |
04373-12010 |
from US $61.91 |
||
|
37100
|
37100
37100-20370 Shaft Assy, Propeller W/center Bearing[01.1996 - 05.1996] ST215 |
37100-20370 |
US $1,247.79 |
||
| replacement | |||||
|
37100
|
37100
37100-20410 Shaft Assy, Propeller W/center Bearing[01.1996 - 05.1996] ST215 |
37100-20410 |
US $1,253.62 |
||
|
37100
|
37100
37100-20410 Shaft Assy, Propeller W/center Bearing[05.1996 - 12.1997] ST215 |
37100-20410 |
US $1,253.62 |
||
|
37100
|
37100
37100-21090 Shaft Assy, Propeller W/center Bearing[12.1997 -] CT216,ST215 |
37100-21090 |
US $1,253.62 |
||
|
37100A
|
37100A
90105-10085 Bolt, No.1 (For Propeller Shaft & Differential Setting)[01.1996 - 12.1997] CT215,ST215 |
90105-10085 |
from US $1.21 |
||
| replacement | |||||
|
37100A
|
37100A
90080-10294 Bolt, No.1 (For Propeller Shaft & Differential Setting)[01.1996 - 12.1997] CT215,ST215 |
90080-10294 |
US $6.47 |
||
|
37100A
|
37100A
90105-10423 Bolt, No.1 (For Propeller Shaft & Differential Setting)[12.1997 -] CT216,ST215 |
90105-10423 |
US $1.31 |
||
|
37100C
|
37100C
90204-10002
Washer, No.1 (For Propeller Shaft & Differential Setting)
[01.1996 -] CT215,216,ST215 |
90204-10002 |
— | ||
| replacement | |||||
|
37100C
|
37100C
90560-10H00 Washer, No.1 (For Propeller Shaft & Differential Setting)[01.1996 -] CT215,216,ST215 |
90560-10H00 |
from US $1.64 |
||
|
37101A
|
37101A
90937-01132 Piece, Balance, No.1 (For Propeller Shaft)[01.1996 -] CT215,216,ST215 １０Ｇ，長さ＝２０．７ |
90937-01132 |
US $3.52 |
||
|
37101A
|
37101A
90937-01136 Piece, Balance, No.1 (For Propeller Shaft)[01.1996 -] CT215,216,ST215 ２０Ｇ，長さ＝４１．４ |
90937-01136 |
US $3.20 |
||
|
37101A
|
37101A
90937-01140 Piece, Balance, No.1 (For Propeller Shaft)[01.1996 -] CT215,216,ST215 ３０Ｇ，長さ＝６２．２ |
90937-01140 |
US $3.49 |
||
|
37101A
|
37101A
90937-01147 Piece, Balance, No.1 (For Propeller Shaft)[01.1996 -] CT215,216,ST215 ２Ｇ，厚さ＝２．０ |
90937-01147 |
US $2.04 |
||
|
37101A
|
37101A
90937-01148 Piece, Balance, No.1 (For Propeller Shaft)[01.1996 -] CT215,216,ST215 ４Ｇ，厚さ＝２．０ |
90937-01148 |
US $2.24 |
||
|
37101A
|
37101A
90937-01149 Piece, Balance, No.1 (For Propeller Shaft)[01.1996 -] CT215,216,ST215 ６Ｇ，長さ＝１２．４ |
90937-01149 |
US $2.24 |
||
|
37101A
|
37101A
90937-01150 Piece, Balance, No.1 (For Propeller Shaft)[01.1996 -] CT215,216,ST215 ８Ｇ，長さ＝１６．６ |
90937-01150 |
US $2.24 |
||
|
37101A
|
37101A
90937-01151 Piece, Balance, No.1 (For Propeller Shaft)[01.1996 -] CT215,216,ST215 １２Ｇ，長さ＝２４．９ |
90937-01151 |
US $2.40 |
||
|
37101A
|
37101A
90937-01152 Piece, Balance, No.1 (For Propeller Shaft)[01.1996 -] CT215,216,ST215 １４Ｇ，長さ＝２９．０ |
90937-01152 |
US $2.24 |
||
|
37101A
|
37101A
90937-01153 Piece, Balance, No.1 (For Propeller Shaft)[01.1996 -] CT215,216,ST215 １６Ｇ，長さ＝３３．２ |
90937-01153 |
US $1.31 |
||
|
37101A
|
37101A
90937-01154 Piece, Balance, No.1 (For Propeller Shaft)[01.1996 -] CT215,216,ST215 １８Ｇ，長さ＝３７．３ |
90937-01154 |
US $1.75 |
||
|
37101A
|
37101A
90937-01155 Piece, Balance, No.1 (For Propeller Shaft)[01.1996 -] CT215,216,ST215 ２２Ｇ，長さ＝４５．６ |
90937-01155 |
US $1.75 |
||
|
37101A
|
37101A
90937-01156 Piece, Balance, No.1 (For Propeller Shaft)[01.1996 -] CT215,216,ST215 ２４Ｇ，長さ＝４９．７ |
90937-01156 |
US $1.75 |
||
|
37101A
|
37101A
90937-01157 Piece, Balance, No.1 (For Propeller Shaft)[01.1996 -] CT215,216,ST215 ２６Ｇ，長さ＝５３．９ |
90937-01157 |
US $1.75 |
||
|
37101A
|
37101A
90937-01158 Piece, Balance, No.1 (For Propeller Shaft)[01.1996 -] CT215,216,ST215 ２８Ｇ，長さ＝５８．１ |
90937-01158 |
US $1.75 |
||
|
37110
|
37110
37110-20400
Shaft Assy, Propeller
[01.1996 - 12.1997] CT215,ST215 |
37110-20400 |
— | ||
|
37110
|
37110
37110-21180 Shaft Assy, Propeller[12.1997 -] CT216,ST215 |
37110-21180 |
US $598.42 |
||
|
37110G
|
37110G
90110-08016 Bolt (For Propeller Shaft)[01.1996 -] CT215,216,ST215 |
90110-08016 |
US $2.62 |
||
| replacement | |||||
|
37110G
|
37110G
90110-08036 Bolt (For Rear Propeller Shaft)[01.1996 -] CT215,216,ST215 |
90110-08036 |
from US $1.40 |
||
|
37120
|
37120
37120-20290 Shaft Assy, Propeller Intermediate[01.1996 - 05.1996] ST215 |
37120-20290 |
US $828.46 |
||
| replacement | |||||
|
37120
|
37120
37120-20330 Shaft Assy, Propeller Intermediate[01.1996 - 05.1996] ST215 |
37120-20330 |
US $834.29 |
||
|
37120
|
37120
37120-20330 Shaft Assy, Propeller Intermediate[05.1996 - 12.1997] ST215 |
37120-20330 |
US $834.29 |
||
|
37120
|
37120
37120-21040 Shaft Assy, Propeller Intermediate[12.1997 -] CT216,ST215 |
37120-21040 |
US $834.29 |
||
|
37120A
|
37120A
90201-18182 Washer, Plate (For Propeller Intermediate Shaft Set)[01.1996 -] CT215,216,ST215 外径＝３３．５，厚さ＝４．０ |
90201-18182 |
from US $2.88 |
||
|
37120B
|
37120B
90179-18009 Nut (For Propeller Intermediate Shaft Setting)[01.1996 -] CT215,216,ST215 |
90179-18009 |
from US $1.72 |
||
|
37230
|
37230
37230-20170
Bearing Assy, Center Support, No.1
[01.1996 -] CT215,216,ST215 |
37230-20170 |
— | ||
|
37230E
|
37230E
90201-25005 Washer, Plate (For Propeller Intermediate Shaft Set)[01.1996 -] CT215,216,ST215 |
90201-25005 |
US $0.70 |
||
|
37230F
|
37230F
90119-10444 Bolt, No.1 (For Center Support Bearing)[01.1996 -] CT215,216,ST215 |
90119-10444 |
US $2.56 |
||
|
37230G
|
37230G
90201-10081 Washer, No.1 (For Center Support Bearing)[01.1996 -] CT215,216,ST215 厚さ＝４．５ |
90201-10081 |
US $3.04 |
||
|
37230G
|
37230G
90201-10083 Washer, No.1 (For Center Support Bearing)[01.1996 -] CT215,216,ST215 厚さ＝６．５ |
90201-10083 |
US $3.84 |
||
|
37230G
|
37230G
90201-10084 Washer, No.1 (For Center Support Bearing)[01.1996 -] CT215,216,ST215 厚さ＝９．０ |
90201-10084 |
US $4.02 |
||
|
37230G
|
37230G
90201-10095 Washer, No.1 (For Center Support Bearing)[01.1996 -] CT215,216,ST215 厚さ＝３．２ |
90201-10095 |
US $2.88 |
||
|
37308A
|
37308A
90949-01431 Clamp (For Universal Joint Cover)[01.1996 -] CT215,216,ST215 |
90949-01431 |
US $3.20 |
||
|
37331
|
37331
37331-30010 Cover, Sliding Shaft Dust[01.1996 -] CT215,216,ST215 |
37331-30010 |
US $10.48 |
||
|
43489B
|
43489B
43489-20030 Washer, Constant Velocity Universal Joint[01.1996 -] CT215,216,ST215 |
43489-20030 |
US $7.72 |
||
