Starter ([01.1996 - ] 12V 1.2KW (9601- )3SF#) Diagram Toyota CORONA
- Year
- 1996 - 2001
- Sales region
- Japan
- Frame
- ST215
- grade
- PRME
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- Model
- CORONA
- From
- 01.1996
- To
- 12.2001
- Vehicle Model
- Corona
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?

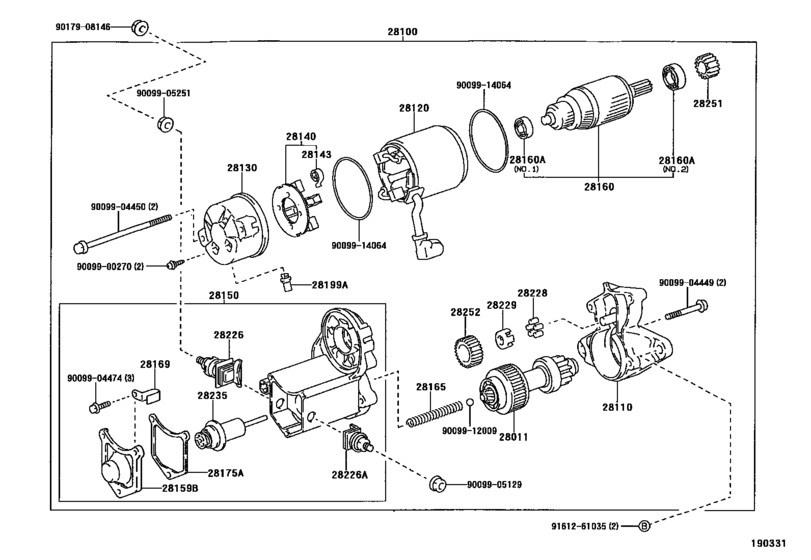

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-74070 Clutch Sub-Assy, Starter[01.1996 -] 3SF#..ST21#..ATM; 3SFE..ST215..MTM 12V 2.2KW |
28011-74070 |
US $189.28 |
||
|
28100
|
28100
28100-74130 Starter Assy[01.1996 -] 3SF#..ST21# １２Ｖ １．２ＫＷ |
28100-74130 |
US $1,352.62 |
||
| replacement | |||||
|
28100
|
28100
28100-74140 Starter Assy[01.1996 -] 3SF#..ST21# １２Ｖ １．２ＫＷ |
28100-74140 |
US $1,415.23 |
||
|
28110
|
28110
28110-74100 Housing Assy, Starter Drive[01.1996 -] 3SF#..ST21#..ATM; 3SFE..ST215..MTM 12V 2.2KW |
28110-74100 |
US $90.27 |
||
|
28120
|
28120
28120-16180
Yoke Assy, Starter
[01.1996 -] 3SF#..ST21#..ATM; 3SFE..ST215..MTM 12V 2.2KW |
28120-16180 |
— | ||
|
28130
|
28130
28130-74120
Frame Assy, Starter Commutator End
[01.1996 -] 3SF#..ST21#..ATM; 3SFE..ST215..MTM 12V 2.2KW |
28130-74120 |
— | ||
|
28140
|
28140
28140-74120 Holder Assy, Starter Brush[01.1996 -] 3SF#..ST21#..ATM; 3SFE..ST215..MTM 12V 2.2KW |
28140-74120 |
US $18.04 |
||
|
28143
|
28143
28143-76060
Spring, Starter Brush
[01.1996 -] 3SF#..ST21#..ATM; 3SFE..ST215..MTM 12V 2.2KW |
28143-76060 |
— | ||
|
28150
|
28150
28150-74140 Switch Assy, Magnet Starter[01.1996 -] 3SF#..ST21#..ATM; 3SFE..ST215..MTM 12V 2.2KW |
28150-74140 |
US $208.21 |
||
|
28159B
|
28159B
28159-55050
Cover, Starter Protector
[01.1996 -] 3SF#..ST21#..ATM 12V 1.2KW; 3SFE..ST215..MTM 12V 2.2KW; 2CT,3CTE..CT21# 12V 1.4KW |
28159-55050 |
— | ||
|
28160
|
28160
28160-76060 Armature Assy, Starter[01.1996 -] 3SF#..ST21#..ATM; 3SFE..ST215..MTM 12V 2.2KW |
28160-76060 |
US $318.86 |
||
|
28160A
|
28160A
90099-10196 Bearing, Starter Armature[01.1996 -] 3SFE..ST215..ATM;2CT,3SF#..CT210,215,ST210 ＮＯ．１; 3SFE..ST215..MTM 12V 2.2KW,ＮＯ．１ |
90099-10196 |
from US $6.12 |
||
|
28160A
|
28160A
90099-10197 Bearing, Starter Armature[01.1996 -] 3SFE..ST215..ATM;2CT,3SF#..CT210,215,ST210 ＮＯ．２; 3SFE..ST215..MTM 12V 2.2KW,ＮＯ．２ |
90099-10197 |
US $7.34 |
||
|
28165
|
28165
28165-74070
Spring, Starter Magnet Switch Return
[01.1996 -] 3SF#..ST21#..ATM; 3SFE..ST215..MTM 12V 2.2KW |
28165-74070 |
— | ||
|
28169
|
28169
28169-55050
Clamp, Starter Motor Lead Wire
[01.1996 - 08.1997] 3SFE..ST215..ATM;2CT,3SF#..CT21#,ST210 |
28169-55050 |
— | ||
|
28175A
|
28175A
28175-55050 Gasket, Magnet Switch Cover[01.1996 -] 3SF#..ST21#..ATM 12V 1.2KW; 3SFE..ST215..MTM 12V 2.2KW; 2CT,3CTE..CT21# 12V 1.4KW |
28175-55050 |
from US $1.92 |
||
|
28199A
|
28199A
28199-74110 Cover, Starter End Frame[01.1996 -] 3SF#..ST21#..ATM 12V 1.2KW; 3SFE..ST215..MTM 12V 2.2KW; 2CT,3CTE..CT21# 12V 1.4KW |
28199-74110 |
US $2.97 |
||
|
28226
|
28226
28226-55050
Starter Kit, Battery Terminal
[01.1996 -] 3SF#..ST21#..ATM 12V 1.2KW; 3SFE..ST215..MTM 12V 2.2KW; 2CT,3CTE..CT21# 12V 1.4KW |
28226-55050 |
— | ||
| replacement | |||||
|
28226
|
28226
28226-64370 Starter Kit, Battery Terminal[01.1996 -] 3SF#..ST21#..ATM 12V 1.2KW; 3SFE..ST215..MTM 12V 2.2KW; 2CT,3CTE..CT21# 12V 1.4KW |
28226-64370 |
from US $7.12 |
||
|
28226A
|
28226A
28226-74070 Starter Kit, Battery Terminal[01.1996 -] 3SF#..ST21#..ATM 12V 1.2KW; 3SFE..ST215..MTM 12V 2.2KW; 2CT,3CTE..CT21# 12V 1.4KW |
28226-74070 |
US $9.61 |
||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[01.1996 -] 2CT,3CTE,3SF#..CT21#,ST21# |
28228-26040 |
— | ||
|
28229
|
28229
28229-74070 Retainer, Starter Idle Gear[01.1996 -] 3SF#..ST21#..ATM 12V 1.2KW; 3SFE..ST215..MTM 12V 2.2KW; 2CT,3CTE..CT21# 12V 1.4KW |
28229-74070 |
US $1.50 |
||
|
28235
|
28235
28235-74130
Plunger, Magnet Switch
[01.1996 -] 3SF#..ST21#..ATM; 3SFE..ST215..MTM 12V 2.2KW |
28235-74130 |
— | ||
|
28252
|
28252
28254-74070
Pinion, Starter Drive
[01.1996 -] 3SF#..ST21#..ATM; 3SFE..ST215..MTM 12V 2.2KW |
28254-74070 |
— | ||
|
9009900270
|
9009900270
90099-00270
Screw, Starter
|
90099-00270 |
— | ||
|
9009904449
|
9009904449
90099-04449
New Genuine Part
|
90099-04449 |
— | ||
|
9009904450
|
9009904450
90099-04450
New Genuine Part
|
90099-04450 |
— | ||
|
9009904474
|
9009904474
90099-04474
New Genuine Part
|
90099-04474 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009905251
|
9009905251
90099-05251
New Genuine Part
|
90099-05251 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9009914064
|
9009914064
90099-14064 Rubber(For Starter Yoke) |
90099-14064 |
from US $3.67 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.60 |
||
