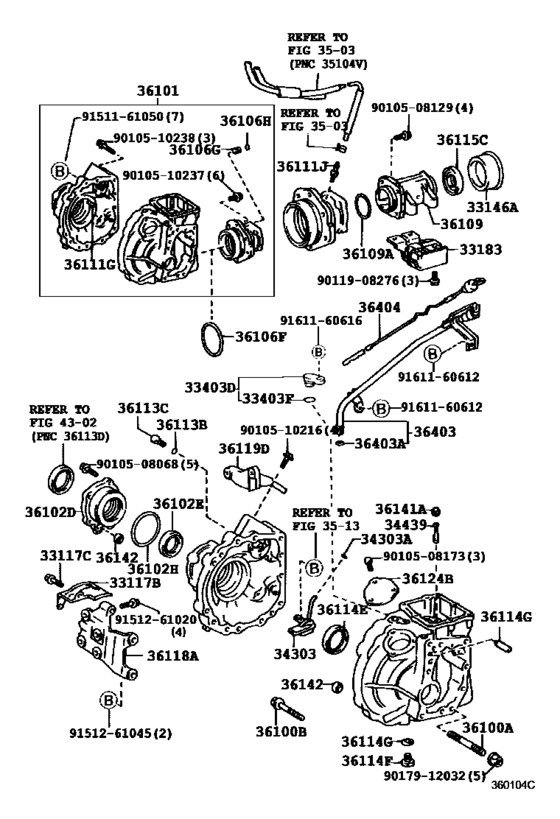

Transfer Case & Extension Housing ([01.1996 - 12.1997] (9601-9712)ST215..ATM) Diagram Toyota CORONA
- Year
- 1996 - 2001
- Sales region
- Japan
- Frame
- ST215
- grade
- PRME
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- Model
- CORONA
- From
- 01.1996
- To
- 12.2001
- Vehicle Model
- Corona
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33117B
|
33117B
33117-32030 Protector, Transfer Case[01.1996 - 12.1997] ST215 |
33117-32030 |
US $29.70 |
||
|
33117C
|
33117C
90105-08040
Bolt(For Plate Bolt Lock)
[01.1996 - 12.1997] ST215 |
90105-08040 |
— | ||
| replacement | |||||
|
33117C
|
33117C
91641-H0820 Bolt[01.1996 - 12.1997] ST215 |
91641-H0820 |
from US $0.92 |
||
|
33146A
|
33146A
33146-30020 Deflector, Extension Housing Dust(Mtm)[01.1996 -] CT215,216,ST215 |
33146-30020 |
from US $15.84 |
||
|
33183
|
33183
33183-20030 Damper, Transfer Dynamic[01.1996 - 12.1997] ST215 |
33183-20030 |
US $117.94 |
||
| replacement | |||||
|
33183
|
33183
33183-21030 Damper, Transfer Dynamic[01.1996 - 12.1997] ST215 |
33183-21030 |
US $72.80 |
||
|
33183
|
33183
33183-21020 Damper, Transfer Dynamic[04.1998 -] CT216,ST215 ホワイト ペイント |
33183-21020 |
US $117.94 |
||
|
33183
|
33183
33183-21030 Damper, Transfer Dynamic[12.1997 - 04.1998] ST215 イエロー ペイント |
33183-21030 |
US $72.80 |
||
|
33403D
|
33403D
33403-20250 Cover Sub-Assy, Speedometer Driven Hole[01.1996 - 12.1997] ST215..ATM |
33403-20250 |
US $10.19 |
||
|
33403F
|
33403F
90301-11008 Ring,o (For Speedometer Driven Hole Cover)[01.1996 - 12.1997] ST215..ATM |
90301-11008 |
from US $0.96 |
||
|
34303
|
34303
34303-32010 Strainer Sub-Assy, Transfer Oil[01.1996 - 12.1997] ST215..ATM |
34303-32010 |
US $54.16 |
||
|
34303A
|
34303A
90301-06008 Ring, O (For Transfer Oil Strainer)[01.1996 - 12.1997] ST215..ATM |
90301-06008 |
US $3.14 |
||
|
34439
|
34439
34439-32010 Strainer, Transfer Valve Body[01.1996 - 12.1997] ST215..ATM |
34439-32010 |
US $5.39 |
||
|
36100A
|
36100A
90116-12027 Bolt, Stud (For Transfer & Transaxle Setting)[01.1996 - 12.1997] ST215..ATM ネジ部長さ＝２２ ＆ ２２，長さ＝５６ |
90116-12027 |
US $4.22 |
||
|
36100A
|
36100A
90116-12028 Bolt, Stud (For Transfer & Transaxle Setting)[12.1997 -] CT216,ST215 ネジ部長さ＝２２ ＆ ２２，長さ＝６９ |
90116-12028 |
from US $3.72 |
||
|
36100A
|
36100A
90116-12029 Bolt, Stud (For Transfer & Transaxle Setting)[01.1996 - 12.1997] ST215..ATM ネジ部長さ＝２２ ＆ ２２，長さ＝７４ |
90116-12029 |
US $5.39 |
||
|
36100A
|
36100A
90116-12034 Bolt, Stud (For Transfer & Transaxle Setting)[12.1997 -] CT216,ST215 ネジ部長さ＝１９ ＆ １９，長さ＝４７ |
90116-12034 |
from US $1.74 |
||
|
36100A
|
36100A
90116-12041 Bolt, Stud (For Transfer & Transaxle Setting)[12.1997 -] CT216,ST215 ネジ部長さ＝３０ ＆ ２２，長さ＝６４ |
90116-12041 |
from US $2.93 |
||
|
36100B
|
36100B
90105-12137 Bolt (For Transfer & Transaxle Setting)[01.1996 - 12.1997] ST215..ATM ＊１２−１．２５ＰＸ５２−３０ |
90105-12137 |
US $4.08 |
||
|
36100B
|
36100B
90105-12161 Bolt (For Transfer & Transaxle Setting)[01.1996 - 12.1997] ST215..ATM ＊１２−１．２５ＰＸ２０４−３０ |
90105-12161 |
US $5.68 |
||
|
36100B
|
36100B
90105-12162 Bolt (For Transfer & Transaxle Setting)[01.1996 - 12.1997] ST215..ATM ＊１２−１．２５ＰＸ６２−３０ |
90105-12162 |
US $4.22 |
||
|
36101
|
36101
36101-20010 Case Sub-Assy, Transfer[01.1996 - 12.1997] ST215..ATM |
36101-20010 |
US $1,703.52 |
||
|
36102D
|
36102D
36102-32010
Retainer Sub-Assy, Transfer Rh Bearing
[01.1996 - 12.1997] ST215..ATM |
36102-32010 |
— | ||
|
36102E
|
36102E
90316-52001 Seal, Oil, No.1 (For Transfer Rh Bearing Retainer)[01.1996 - 12.1997] ST215..ATM |
90316-52001 |
from US $8 |
||
|
36102H
|
36102H
90301-85003 Ring, O (For Transfer Rh Bearing Retainer)[01.1996 - 12.1997] ST215..ATM |
90301-85003 |
US $2.72 |
||
|
36106F
|
36106F
90301-94001 Ring, O (For 1St & Reverse Brake)[01.1996 - 12.1997] ST215..ATM |
90301-94001 |
US $8.01 |
||
|
36106G
|
36106G
90334-09004 Plug, Straight (For Transfer Pinion Bearing Cage)[01.1996 - 12.1997] ST215..ATM |
90334-09004 |
US $3.49 |
||
|
36106H
|
36106H
90301-05002 Ring, O (For Front Support)[01.1996 - 12.1997] ST215..ATM |
90301-05002 |
US $3.79 |
||
|
36109
|
36109
36109-32010 Housing Sub-Assy, Transfer Extension[01.1996 - 12.1997] ST215..ATM |
36109-32010 |
US $151.42 |
||
|
36109
|
36109
36109-33010
Housing Sub-Assy, Transfer Extension
[12.1997 -] CT216,ST215 |
36109-33010 |
— | ||
| replacement | |||||
|
36109
|
36109
36109-48010 Housing Sub-Assy, Transfer Extension[12.1997 -] CT216,ST215 |
36109-48010 |
US $138.03 |
||
|
36109A
|
36109A
90301-63005 Ring, O (For Transfer Extension Housing)[01.1996 - 12.1997] CT215,ST215 |
90301-63005 |
US $2.62 |
||
|
36111G
|
36111G
90250-08030
Pin, Straight(For Crankshaft)
[12.1997 -] CT216,ST215 長さ＝１６，外径＝８ |
90250-08030 |
— | ||
| replacement | |||||
|
36111G
|
36111G
90250-08046 Pin, Straight(For Intake Manifold Setting)[12.1997 -] CT216,ST215 長さ＝１６，外径＝８ |
90250-08046 |
from US $0.86 |
||
|
36111G
|
36111G
90250-10017 Pin, Straight(For Clutch Housing Set)[12.1997 -] CT216,ST215 長さ＝２０，外径＝１０ |
90250-10017 |
from US $2.08 |
||
|
36111G
|
36111G
90250-12005
Pin, Straight(For Manual Transmission Case)
[01.1996 - 12.1997] CT215,ST215 長さ＝２４，外径＝１２ |
90250-12005 |
— | ||
|
36111G
|
36111G
90254-10003 Pin, Straight (For Transfer Case)[01.1996 - 12.1997] ST215..ATM 長さ＝２１．０ |
90254-10003 |
US $4.22 |
||
|
36111J
|
36111J
90404-51059 Union, Breather, No.1 (For Transfer)[01.1996 - 12.1997] ST215..ATM |
90404-51059 |
US $2.04 |
||
|
36113B
|
36113B
90301-06196 O Ring, Transaxle Case, No.1[01.1996 - 12.1997] ST215..ATM |
90301-06196 |
from US $2.72 |
||
|
36113C
|
36113C
90341-08001 Plug, Transaxle Case, No.1[01.1996 - 12.1997] ST215..ATM |
90341-08001 |
from US $1.92 |
||
|
36114E
|
36114E
90316-61001 Seal, Oil (For Transfer Case Lh)[01.1996 - 12.1997] ST215..ATM |
90316-61001 |
from US $9.76 |
||
|
36114F
|
36114F
90341-18021 Plug, Filler(Hv)[01.1996 - 12.1997] ST215..ATM |
90341-18021 |
from US $2.44 |
||
|
36114F
|
36114F
90341-18057 Drain Plug (with Magnet)[12.1997 -] CT216,ST215 |
90341-18057 |
from US $5.60 |
||
|
36114G
|
36114G
12157-10010 Gasket (For Drain Plug)[12.1997 -] CT216,ST215 |
12157-10010 |
from US $1.60 |
||
|
36114G
|
36114G
90430-18008 Gasket[01.1996 - 12.1997] CT215,ST215 |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
36114G
|
36114G
90430-T0021
Gasket(For Manual Transmission Filler Plug)
[01.1996 - 12.1997] CT215,ST215 |
90430-T0021 |
— | ||
|
36115C
|
36115C
90311-38032 Seal, Oil(For Manual Transmission Extension Housing)[01.1996 - 12.1997] CT215,ST215 |
90311-38032 |
from US $6.40 |
||
|
36115C
|
36115C
90311-38062
Seal, Type T Oil (For Transfer Extension Housing)
[12.1997 -] CT216,ST215 |
90311-38062 |
— | ||
| replacement | |||||
|
36115C
|
36115C
90311-38090 Seal, Type T Oil (For Transfer Extension Housing)[12.1997 -] CT216,ST215 |
90311-38090 |
from US $4.64 |
||
|
36118A
|
36118A
36118-21010 Plate, Transfer Stiffener, Rh[12.1997 -] ST215 |
36118-21010 |
US $96.10 |
||
|
36118A
|
36118A
36118-32020 Plate, Transfer Stiffener, Rh[01.1996 - 12.1997] ST215..ATM |
36118-32020 |
US $80.08 |
||
|
36119D
|
36119D
36119-21010 Plate, Transfer Stiffener, Center[12.1997 -] ST215 |
36119-21010 |
US $106.29 |
||
|
36119D
|
36119D
36119-32021 Plate, Transfer Stiffener, Center[01.1996 - 12.1997] ST215..ATM |
36119-32021 |
US $69.74 |
||
|
36124B
|
36124B
36124-32010 Cover, Transfer Inspection Hole[01.1996 - 12.1997] ST215..ATM |
36124-32010 |
US $6.84 |
||
|
36141A
|
36141A
36141-32010
Gasket, Transfer Case
[01.1996 - 12.1997] ST215..ATM |
36141-32010 |
— | ||
|
36142
|
36142
36142-12010 Gasket, Transfer Cover[01.1996 - 12.1997] ST215..ATM |
36142-12010 |
US $4.69 |
||
|
36403
|
36403
36403-20050 Tube Sub-Assy, Transfer Oil Filler[01.1996 - 12.1997] ST215..ATM |
36403-20050 |
US $32.91 |
||
|
36403A
|
36403A
90301-09173 Ring, O(For Transmission Oil Filler Tube)[01.1996 - 12.1997] ST215..ATM |
90301-09173 |
from US $2.18 |
||
|
36404
|
36404
36404-20050 Gage Sub-Assy, Transfer Oil Level[01.1996 - 12.1997] ST215..ATM |
36404-20050 |
US $12.67 |
||
|
9010508068
|
9010508068
90105-08068 Bolt (For Transaxle Rear Cover Setting) |
90105-08068 |
US $3.06 |
||
| replacement | |||||
|
9010508068
|
9010508068
91551-C0835 Bolt (For Rear Differential Carrier) |
91551-C0835 |
US $1.28 |
||
|
9010508129
|
9010508129
90105-08129
Bolt(For Alternator)
|
90105-08129 |
— | ||
| replacement | |||||
|
9010508129
|
9010508129
91511-80830 Bolt(For Alternator) |
91511-80830 |
US $3.20 |
||
|
9010508173
|
9010508173
90105-08173 New Genuine Part |
90105-08173 |
US $1.89 |
||
| replacement | |||||
|
9010508173
|
9010508173
90105-08095 BOLT |
90105-08095 |
from US $1.11 |
||
|
9010510216
|
9010510216
90105-10216 Bolt (For Transfer Oil Receiver No.1) |
90105-10216 |
US $2.62 |
||
| replacement | |||||
|
9010510216
|
9010510216
91512-B1030 Bolt (For Transfer Oil Receiver No.1) |
91512-B1030 |
US $2.40 |
||
|
9010510237
|
9010510237
90105-10237 New Genuine Part |
90105-10237 |
US $1.46 |
||
|
9010510238
|
9010510238
90105-10238 New Genuine Part |
90105-10238 |
US $3.49 |
||
|
9011908276
|
9011908276
90119-08276
New Genuine Part
|
90119-08276 |
— | ||
| replacement | |||||
|
9011908276
|
9011908276
90119-08336 BOLT |
90119-08336 |
US $2.56 |
||
|
9017912032
|
9017912032
90179-12032 New Genuine Part |
90179-12032 |
US $3.52 |
||
|
9151161050
|
9151161050
91511-61050
Bolt, Flange (For Idler)
|
91511-61050 |
— | ||
|
9151261020
|
9151261020
91512-61020 Bolt (For Transfer Stiffener Plate) |
91512-61020 |
US $2.33 |
||
| replacement | |||||
|
9151261020
|
9151261020
91512-B1020 Bolt(For Front Transaxle Case Cover) |
91512-B1020 |
US $1.89 |
||
|
9151261045
|
9151261045
91512-61045 Bolt |
91512-61045 |
US $2.24 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $1.19 |
||
