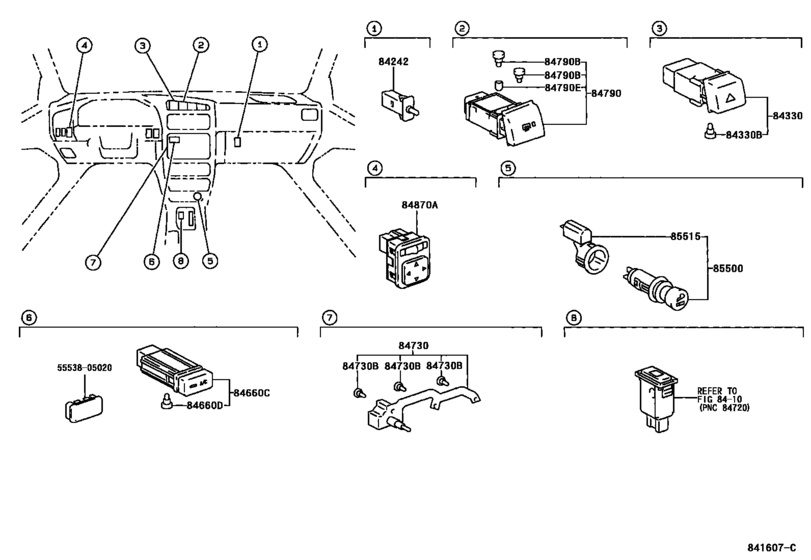

Switch & Relay & Computer ([10.1997 - 07.2000] INSTRUMENT PANEL (9710-0007)LHD) Diagram Toyota CORONA
- Year
- 1997 - 2003
- Sales region
- General
- Frame
- ST220
- grade
- TERRA
- body
- SED
- ENGINE
- 3SFE
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 10.1997
- To
- 01.2003
- Vehicle Model
- Corona
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84242
|
84242
84242-20030 Switch Assy, Courtesy Lamp (For Glove Box)[10.1997 -] AT220,CT220,ST220 |
84242-20030 |
US $18.35 |
||
|
84330
|
84330
84332-20360 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [10.1997 - 07.2000] AT220,CT220,ST220 |
84332-20360 |
US $58.83 |
||
|
84330
|
84330
84332-20410 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [07.2000 -] ST220 |
84332-20410 |
US $57.51 |
||
|
84330B
|
84330B
84999-10320 Bulb, Satellite Switch[10.1997 -] AT220,CT220,ST220 14V 0.84W |
84999-10320 |
from US $3.84 |
||
|
84660C
|
84660C
84660-20200 Switch, CoolerCOOLER [10.1997 - 07.2000] AT220,CT220,ST220 |
84660-20200 |
from US $36.91 |
||
|
84660D
|
84660D
88607-10020
Bulb(For Cooler Switch)
[10.1997 - 07.2000] AT220,CT220,ST220 14V 0.08A |
88607-10020 |
— | ||
|
84730
|
84730
84732-05020
Switch Assy, Heater Blower
[10.1997 - 07.2000] AT220,CT220,ST220..LHD |
84732-05020 |
— | ||
|
84730B
|
84730B
90069-98005
Bulb, Air Conditioner Control
[10.1997 - 07.2000] AT220,CT220,ST220 |
90069-98005 |
— | ||
| replacement | |||||
|
84730B
|
84730B
90981-WB011
Bulb, Air Conditioner Control
[10.1997 - 07.2000] AT220,CT220,ST220 |
90981-WB011 |
— | ||
|
84790
|
84790
84790-20490 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [10.1997 - 07.2000] AT220,CT220,ST220..LHD |
84790-20490 |
US $147.09 |
||
|
84790
|
84790
84790-20530 Switch Assy, Rear Window DefoggerREAR WINDOW DEFOGGER [07.2000 -] ST220 |
84790-20530 |
US $144.14 |
||
|
84790B
|
84790B
84999-10310 Bulb, Air Conditioner Control[10.1997 - 07.2000] AT220,CT220,ST220 14V 0.91W |
84999-10310 |
from US $2.93 |
||
|
84790B
|
84790B
90010-01018 Bulb, Main Switch Assy[10.1997 - 07.2000] AT220,CT220,ST220 14V 0.91W,W/O(CAP) |
90010-01018 |
US $5.10 |
||
|
84790B
|
84790B
90010-01039 Blub, Center Cluster Module Switch[07.2000 -] ST220 14V0.91W,W(GREEN CAP |
90010-01039 |
from US $3.43 |
||
|
84790B
|
84790B
90010-01049 Bulb, Main Switch Assy[07.2000 -] ST220 14V0.91W,YELLOW CAP |
90010-01049 |
US $5.42 |
||
|
84790E
|
84790E
84998-10180 Cap, Cooler Switch Bulb[10.1997 - 07.2000] AT220,CT220,ST220 |
84998-10180 |
US $2.97 |
||
|
84870A
|
84870A
84870-05020
Switch Assy, Outer Mirror
[10.1997 -] AT220,CT220,ST220 |
84870-05020 |
— | ||
|
85500
|
85500
85500-09010
Lighter Assy, Cigarette
[10.1997 -] AT220,CT220,ST220 |
85500-09010 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-09040
Lighter Assy, Cigarette
[10.1997 -] AT220,CT220,ST220 |
85500-09040 |
— | ||
|
85515
|
85515
85515-05010
Stay, Cigarette Lighter Bezel
[10.1997 -] AT220,CT220,ST220 |
85515-05010 |
— | ||
| replacement | |||||
|
85515
|
85515
85515-05011
Stay, Cigarette Lighter Bezel
[10.1997 -] AT220,CT220,ST220 |
85515-05011 |
— | ||
|
5553805020
|
5553805020
55538-05020
Retainer,glove Compartment
|
55538-05020 |
— | ||
