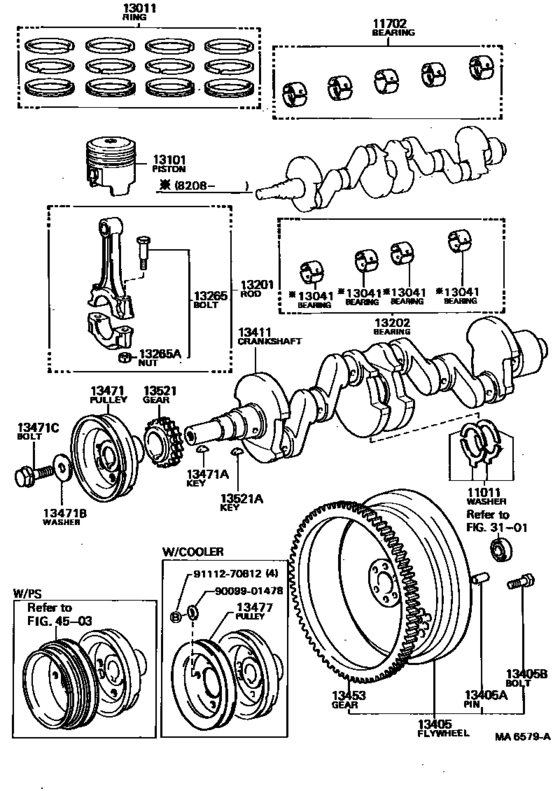

Crankshaft & Piston ([01.1982 - 10.1983] (8201-8310)12TJ,3TEU) Diagram Toyota CORONA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- TT142
- grade
- SX
- body
- HT
- ENGINE
- 3TEU
- TRANSMISSION
- ATM
- Model
- CORONA
- From
- 01.1982
- To
- 10.1983
- Gear Shift Type
- 4FC
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-25010 Washer Set, Crankshaft Thrust[01.1982 - 04.1998] 1SU..ST140 ＳＴＤ,STD; 2YPU..YT140 ＳＴＤ,STD; 12TJ,3T#..TT14# ＳＴＤ,STD |
11011-25010 |
from US $20.67 |
||
|
11011
|
11011
11012-25010 Washer Set, Crankshaft Thrust[01.1982 - 10.1983] 12TJ,3TEU..TT14# O/S 0.125 |
11012-25010 |
US $40.62 |
||
|
11011
|
11011
11013-25010 Washer Set, Crankshaft Thrust[01.1982 - 10.1983] 12TJ,3TEU..TT14# O/S 0.250 |
11013-25010 |
US $40.62 |
||
|
11702
|
11702
11702-25013 Bearing Set, Crankshaft[01.1982 - 10.1983] 12TJ,3TEU..TT14# STD |
11702-25013 |
US $266.45 |
||
|
11702
|
11702
11703-25013
Bearing Set, Crankshaft
[01.1982 - 10.1983] 12TJ,3TEU..TT14# U/S 0.05 |
11703-25013 |
— | ||
|
11702
|
11702
11704-25013
Bearing Set, Crankshaft
[01.1982 - 10.1983] 12TJ,3TEU..TT14# U/S 0.25 |
11704-25013 |
— | ||
|
11702
|
11702
11705-25013
Bearing Set, Crankshaft
[01.1982 - 10.1983] 12TJ,3TEU..TT14# U/S 0.50 |
11705-25013 |
— | ||
|
13011
|
13011
13011-28030
Ring Set, Piston
[01.1982 - 11.1982] 12TJ,3TEU..TT14# STD |
13011-28030 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-28031 Ring Set, Piston[01.1982 - 11.1982] 12TJ,3TEU..TT14# STD |
13011-28031 |
from US $126.54 |
||
|
13011
|
13011
13011-28031 Ring Set, Piston[11.1982 - 10.1983] 12TJ,3TEU..TT14# STD |
13011-28031 |
from US $126.54 |
||
|
13011
|
13011
13013-28030 Ring Set, Piston[01.1982 - 11.1982] 12TJ,3TEU..TT14# O/S 0.50 |
13013-28030 |
US $202.38 |
||
| replacement | |||||
|
13011
|
13011
13013-28031 Ring Set, Piston[01.1982 - 11.1982] 12TJ,3TEU..TT14# O/S 0.50 |
13013-28031 |
from US $150.48 |
||
|
13011
|
13011
13013-28031 Ring Set, Piston[11.1982 - 10.1983] 12TJ,3TEU..TT14# O/S 0.50 |
13013-28031 |
from US $150.48 |
||
|
13011
|
13011
13015-28030 Ring Set, Piston[01.1982 - 11.1982] 12TJ,3TEU..TT14# O/S 1.00 |
13015-28030 |
US $202.38 |
||
| replacement | |||||
|
13011
|
13011
13015-28031 Ring Set, Piston[01.1982 - 11.1982] 12TJ,3TEU..TT14# O/S 1.00 |
13015-28031 |
US $218.40 |
||
|
13011
|
13011
13015-28031 Ring Set, Piston[11.1982 - 10.1983] 12TJ,3TEU..TT14# O/S 1.00 |
13015-28031 |
US $218.40 |
||
|
13041
|
13041
13041-18010-03 Bearing, Connecting Rod[08.1982 - 04.1983] 12TJ,3TEU..TT14# MARK"3",MARK 3 |
13041-18010-03 |
US $23.73 |
||
| replacement | |||||
|
13041
|
13041
13041-88281-03 Bearing, Connecting Rod[08.1982 - 04.1983] 12TJ,3TEU..TT14# MARK"3",MARK 3 |
13041-88281-03 |
US $24.17 |
||
|
13041
|
13041
13041-18010-04 Bearing, Connecting Rod[08.1982 - 04.1983] 12TJ,3TEU..TT14# MARK"4",MARK 4 |
13041-18010-04 |
US $23.73 |
||
| replacement | |||||
|
13041
|
13041
13041-88281-04 Bearing, Connecting Rod[08.1982 - 04.1983] 12TJ,3TEU..TT14# MARK"4",MARK 4 |
13041-88281-04 |
US $24.17 |
||
|
13041
|
13041
13041-18010-05 Bearing, Connecting Rod[08.1982 - 04.1983] 12TJ,3TEU..TT14# MARK"5",MARK 5 |
13041-18010-05 |
US $23.73 |
||
| replacement | |||||
|
13041
|
13041
13041-88281-05 Bearing, Connecting Rod[08.1982 - 04.1983] 12TJ,3TEU..TT14# MARK"5",MARK 5 |
13041-88281-05 |
US $24.17 |
||
|
13041
|
13041
13041-18010-06 Bearing, Connecting Rod[08.1982 - 04.1983] 12TJ,3TEU..TT14# MARK"6",MARK 6 |
13041-18010-06 |
US $23.73 |
||
| replacement | |||||
|
13041
|
13041
13041-88281-06 Bearing, Connecting Rod[08.1982 - 04.1983] 12TJ,3TEU..TT14# MARK"6",MARK 6 |
13041-88281-06 |
US $24.17 |
||
|
13041
|
13041
13041-18010-07 Bearing, Connecting Rod[08.1982 - 04.1983] 12TJ,3TEU..TT14# MARK"7",MARK 7 |
13041-18010-07 |
US $23.73 |
||
| replacement | |||||
|
13041
|
13041
13041-88281-07 Bearing, Connecting Rod[08.1982 - 04.1983] 12TJ,3TEU..TT14# MARK"7",MARK 7 |
13041-88281-07 |
US $24.17 |
||
|
13041
|
13041
13041-18011-03 Bearing, Connecting Rod[04.1983 - 10.1983] 12TJ,3TEU..TT14# MARK"3",MARK 3 |
13041-18011-03 |
US $21.99 |
||
| replacement | |||||
|
13041
|
13041
13041-88281-03 Bearing, Connecting Rod[04.1983 - 10.1983] 12TJ,3TEU..TT14# MARK"3",MARK 3 |
13041-88281-03 |
US $24.17 |
||
|
13041
|
13041
13041-18011-04 Bearing, Connecting Rod[04.1983 - 10.1983] 12TJ,3TEU..TT14# MARK"4",MARK 4 |
13041-18011-04 |
US $21.99 |
||
| replacement | |||||
|
13041
|
13041
13041-88281-04 Bearing, Connecting Rod[04.1983 - 10.1983] 12TJ,3TEU..TT14# MARK"4",MARK 4 |
13041-88281-04 |
US $24.17 |
||
|
13041
|
13041
13041-18011-05 Bearing, Connecting Rod[04.1983 - 10.1983] 12TJ,3TEU..TT14# MARK"5",MARK 5 |
13041-18011-05 |
US $21.99 |
||
| replacement | |||||
|
13041
|
13041
13041-88281-05 Bearing, Connecting Rod[04.1983 - 10.1983] 12TJ,3TEU..TT14# MARK"5",MARK 5 |
13041-88281-05 |
US $24.17 |
||
|
13041
|
13041
13041-18011-06 Bearing, Connecting Rod[04.1983 - 10.1983] 12TJ,3TEU..TT14# MARK"6",MARK 6 |
13041-18011-06 |
US $21.99 |
||
| replacement | |||||
|
13041
|
13041
13041-88281-06 Bearing, Connecting Rod[04.1983 - 10.1983] 12TJ,3TEU..TT14# MARK"6",MARK 6 |
13041-88281-06 |
US $24.17 |
||
|
13041
|
13041
13041-18011-07 Bearing, Connecting Rod[04.1983 - 10.1983] 12TJ,3TEU..TT14# MARK"7",MARK 7 |
13041-18011-07 |
US $21.99 |
||
| replacement | |||||
|
13041
|
13041
13041-88281-07 Bearing, Connecting Rod[04.1983 - 10.1983] 12TJ,3TEU..TT14# MARK"7",MARK 7 |
13041-88281-07 |
US $24.17 |
||
|
13101
|
13101
13101-28020 Piston Sub-Assy, W/pin[01.1982 - 10.1983] 3TEU..TT142 STD |
13101-28020 |
US $109.20 |
||
|
13101
|
13101
13103-28020 Piston Sub-Assy, W/pin[01.1982 - 10.1983] 3TEU..TT142 O/S 0.50 |
13103-28020 |
US $97.55 |
||
|
13101
|
13101
13105-28020
Piston Sub-Assy, W/pin
[01.1982 - 10.1983] 3TEU..TT142 O/S 1.00 |
13105-28020 |
— | ||
|
13201
|
13201
13201-25010 Rod Sub-Assy, Connecting[01.1982 - 08.1982] 12TJ,3TEU..TT14# |
13201-25010 |
US $116.48 |
||
|
13201
|
13201
13201-71011
Rod Sub-Assy, Connecting
[08.1982 - 10.1983] 12TJ,3TEU..TT14# |
13201-71011 |
— | ||
|
13202
|
13202
13202-25010
Bearing Set, Connecting Rod
[01.1982 - 08.1982] 12TJ,3TEU..TT14# STD |
13202-25010 |
— | ||
| replacement | |||||
|
13202
|
13202
13202-18030
Bearing Set, Connecting Rod
[01.1982 - 08.1982] 12TJ,3TEU..TT14# STD |
13202-18030 |
— | ||
|
13202
|
13202
13203-25010 Bearing Set, Connecting Rod[01.1982 - 08.1982] 12TJ,3TEU..TT14# U/S 0.05 |
13203-25010 |
US $184.91 |
||
| replacement | |||||
|
13202
|
13202
13203-18030
Bearing Set, Connecting Rod
[01.1982 - 08.1982] 12TJ,3TEU..TT14# U/S 0.05 |
13203-18030 |
— | ||
|
13202
|
13202
13204-18010 Bearing Set, Connecting Rod[08.1982 - 04.1983] 12TJ,3TEU..TT14# U/S 0.25 |
13204-18010 |
US $164.53 |
||
| replacement | |||||
|
13202
|
13202
13204-88280 Bearing Set, Connecting Rod[08.1982 - 04.1983] 12TJ,3TEU..TT14# U/S 0.25 |
13204-88280 |
US $164.53 |
||
|
13202
|
13202
13204-18011 Bearing Set, Connecting Rod[04.1983 - 10.1983] 12TJ,3TEU..TT14# U/S 0.25 |
13204-18011 |
US $147.06 |
||
| replacement | |||||
|
13202
|
13202
13204-88280 Bearing Set, Connecting Rod[04.1983 - 10.1983] 12TJ,3TEU..TT14# U/S 0.25 |
13204-88280 |
US $164.53 |
||
|
13202
|
13202
13204-25010 Bearing Set, Connecting Rod[01.1982 - 08.1982] 12TJ,3TEU..TT14# U/S 0.25 |
13204-25010 |
US $184.91 |
||
| replacement | |||||
|
13202
|
13202
13204-18030
Bearing Set, Connecting Rod
[01.1982 - 08.1982] 12TJ,3TEU..TT14# U/S 0.25 |
13204-18030 |
— | ||
|
13202
|
13202
13205-18010 Bearing Set, Connecting Rod[08.1982 - 04.1983] 12TJ,3TEU..TT14# U/S 0.50 |
13205-18010 |
US $164.53 |
||
| replacement | |||||
|
13202
|
13202
13205-88280 Bearing Set, Connecting Rod[08.1982 - 04.1983] 12TJ,3TEU..TT14# U/S 0.50 |
13205-88280 |
US $164.53 |
||
|
13202
|
13202
13205-18011 Bearing Set, Connecting Rod[04.1983 - 10.1983] 12TJ,3TEU..TT14# U/S 0.50 |
13205-18011 |
US $147.06 |
||
| replacement | |||||
|
13202
|
13202
13205-88280 Bearing Set, Connecting Rod[04.1983 - 10.1983] 12TJ,3TEU..TT14# U/S 0.50 |
13205-88280 |
US $164.53 |
||
|
13202
|
13202
13205-25010 Bearing Set, Connecting Rod[01.1982 - 08.1982] 12TJ,3TEU..TT14# U/S 0.50 |
13205-25010 |
US $184.91 |
||
| replacement | |||||
|
13202
|
13202
13205-18030
Bearing Set, Connecting Rod
[01.1982 - 08.1982] 12TJ,3TEU..TT14# U/S 0.50 |
13205-18030 |
— | ||
|
13265
|
13265
13265-29025 Bolt, Connecting Rod[01.1982 - 04.1998] 2YPU..YT140; 12TJ,3T#..TT14# |
13265-29025 |
US $12.16 |
||
|
13265A
|
13265A
90170-09001 Nut, Hexagon(For Connecting Rod Bolt)[03.1983 - 10.1983] 2YPU..YT140; 12TJ,3T#..TT14# |
90170-09001 |
US $2.72 |
||
|
13265A
|
13265A
90170-09195 Nut, Hexagon(For Connecting Rod Bolt)[01.1982 - 03.1983] 12TJ,3T#..TT14#; 2YPU..YT140 |
90170-09195 |
US $3.20 |
||
|
13411
|
13411
13411-28010 Crankshaft[01.1982 - 10.1983] 3TEU..TT142 |
13411-28010 |
US $1,375.92 |
||
| replacements | |||||
|
13411
|
13411
13041-88281-03 Bearing, Connecting Rod[01.1982 - 10.1983] 3TEU..TT142 |
13041-88281-03 |
US $24.17 |
||
|
13411
|
13411
13041-88281-04 Bearing, Connecting Rod[01.1982 - 10.1983] 3TEU..TT142 |
13041-88281-04 |
US $24.17 |
||
|
13411
|
13411
13041-88281-05 Bearing, Connecting Rod[01.1982 - 10.1983] 3TEU..TT142 |
13041-88281-05 |
US $24.17 |
||
|
13411
|
13411
13041-88281-06 Bearing, Connecting Rod[01.1982 - 10.1983] 3TEU..TT142 |
13041-88281-06 |
US $24.17 |
||
|
13411
|
13411
13041-88281-07 Bearing, Connecting Rod[01.1982 - 10.1983] 3TEU..TT142 |
13041-88281-07 |
US $24.17 |
||
|
13411
|
13411
13202-18030
Bearing Set, Connecting Rod
[01.1982 - 10.1983] 3TEU..TT142 |
13202-18030 |
— | ||
|
13411
|
13411
13411-28901 Crankshaft[01.1982 - 10.1983] 3TEU..TT142 |
13411-28901 |
US $1,375.92 |
||
|
13471
|
13471
13471-18010
Pulley, Crankshaft
[01.1982 - 10.1983] 12TJ,3TEU..TT14# |
13471-18010 |
— | ||
|
13471A
|
13471A
90280-05010 Key(For Oil Pump Drive Spline)[01.1982 - 09.1986] 5KJ..KT147; 18RGEU..RT141; 2YPU..YT140; 12TJ,3T#..TT14# |
90280-05010 |
from US $1.89 |
||
|
13471B
|
13471B
90209-13003 Washer, Plate(For Crankshaft Pulley Set)[01.1982 - 04.1998] 5KJ..KT147; 12TJ,3T#..TT14# |
90209-13003 |
from US $2.84 |
||
|
13471C
|
13471C
90105-12051 Bolt(For Crankshaft Pulley Set)[01.1982 - 12.1987] 5KJ..KT147 *12-1.25PX 24-18; 12TJ,3T#..TT14# *12-1.25PX 24-18 |
90105-12051 |
from US $2.73 |
||
|
13477
|
13477
13477-18011 Pulley, Crankshaft, No.2[01.1982 - 03.1982] 12TJ,3TEU..TT14# |
13477-18011 |
US $59.55 |
||
|
13477
|
13477
88358-12020 Pulley, Crankshaft, No.2[03.1982 - 10.1983] 12TJ,3TEU..TT14# |
88358-12020 |
US $109.20 |
||
|
13521
|
13521
13521-33010 Gear Or Sprocket, Crankshaft Timing[01.1982 - 04.1998] 18RGEU..RT141; 2YPU..YT140; 12TJ,3T#..TT14# |
13521-33010 |
US $45.95 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[01.1982 - 09.1986] 5KJ..KT147; 18RGEU..RT141; 2YPU..YT140; 3AU,4AGEU..AT14#; 12TJ,3T#..TT14# |
90280-05010 |
from US $1.89 |
||
|
9009901478
|
9009901478
90099-01478
New Genuine Part
|
90099-01478 |
— | ||
|
9111270812
|
9111270812
91112-70812
New Genuine Part
|
91112-70812 |
— | ||
