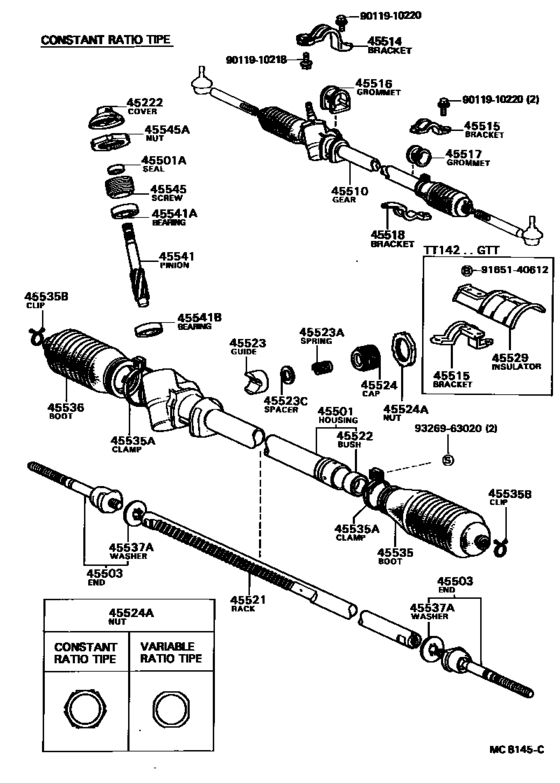

Front Steering Gear & Link ([01.1982 - 10.1983] MANUAL STEERING (8201-8310)CT140,TT142..GX,SX ; (8310-8508)AT141 ,TT142) Diagram Toyota CORONA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- TT142
- grade
- SX
- body
- HT
- ENGINE
- 3TEU
- TRANSMISSION
- ATM
- Model
- CORONA
- From
- 01.1982
- To
- 10.1983
- Gear Shift Type
- 4FC
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45222
|
45222
45222-20010
Cover, Steering Gear Dust
[10.1983 - 12.1987] AT14#,TT142 |
45222-20010 |
— | ||
|
45501
|
45501
45501-14011 Housing Sub-Assy, Steering Rack[10.1983 - 08.1985] AT141,TT142 CONSTANT RATIO |
45501-14011 |
US $171.81 |
||
| replacement | |||||
|
45501
|
45501
45501-14012 Housing Sub-Assy, Steering Rack[10.1983 - 08.1985] AT141,TT142 CONSTANT RATIO |
45501-14012 |
US $171.81 |
||
|
45501A
|
45501A
90311-15001
Seal, Oil(For Steering Bevel Gear Housing)
[10.1983 - 12.1987] AT14#,TT142 |
90311-15001 |
— | ||
| replacement | |||||
|
45501A
|
45501A
90311-15002 Seal, Oil(For Steering Bevel Gear Housing)[10.1983 - 12.1987] AT14#,TT142 |
90311-15002 |
from US $2.06 |
||
|
45503
|
45503
45503-29016 End Sub-Assy, Steering Rack(For Power Steering)[10.1983 - 12.1987] AT14#,TT142 |
45503-29016 |
US $91.73 |
||
| replacement | |||||
|
45503
|
45503
45503-29125 End Sub-Assy, Steering Rack(For Power Steering)[10.1983 - 12.1987] AT14#,TT142 |
45503-29125 |
US $103.60 |
||
|
45510
|
45510
45510-14020 Gear Assy, Steering[01.1982 - 08.1985] CT140,TT142..GTT,GX,SX |
45510-14020 |
US $787.70 |
||
|
45514
|
45514
45514-14012 Bracket, Steering Rack Housing, No.1[01.1982 - 12.1987] AT14#,CT140,ST140,TT142 |
45514-14012 |
US $14.27 |
||
|
45515
|
45515
45515-14010 Bracket, Steering Rack Housing, No.2[01.1982 - 12.1987] AT140,CT140,ST140,TT142..EXA,EXS,GX,GXA,SX W/POWER STEERING |
45515-14010 |
US $15.43 |
||
|
45515
|
45515
45515-14040 Bracket, Steering Rack Housing, No.2[01.1982 - 10.1983] AT140,CT140,ST140,TT142..GX,SX |
45515-14040 |
US $12.23 |
||
|
45516
|
45516
45516-24010
Grommet, Steering Rack Housing, No.1
[01.1982 - 12.1987] AT14#,CT140,RT141,ST140,TT142 |
45516-24010 |
— | ||
|
45517
|
45517
45517-14010 Grommet, Steering Rack Housing, No.2[01.1982 - 12.1987] AT14#,CT140,RT141,ST140,TT142..EXA,EXS,GT,GTT,GX,GXA,SX W/POWER STEERING |
45517-14010 |
US $15.43 |
||
|
45517
|
45517
45517-14020
Grommet, Steering Rack Housing, No.2
[10.1983 - 12.1987] AT14#,TT142 |
45517-14020 |
— | ||
|
45518
|
45518
45518-14010 Bracket, Steering Rack Housing, No.3[10.1983 - 12.1987] AT14#,TT142 |
45518-14010 |
US $11.65 |
||
|
45522
|
45522
45522-22010
Bush, Steering Rack
[10.1983 - 12.1987] AT14#,TT142 |
45522-22010 |
— | ||
| replacement | |||||
|
45522
|
45522
45522-22011
Bush, Steering Rack
[10.1983 - 12.1987] AT14#,TT142 |
45522-22011 |
— | ||
|
45523
|
45523
45523-16011
Guide, Rack(For Steering Gear)
[10.1983 - 08.1985] AT141,TT142 CONSTANT RATIO |
45523-16011 |
— | ||
|
45523A
|
45523A
90501-23007 Spring(For Power Steering Rack Guide)[10.1983 - 08.1985] AT141,TT142 CONSTANT RATIO |
90501-23007 |
from US $1.49 |
||
|
45523C
|
45523C
90560-23003 Spacer(For Rack Guide)[10.1983 - 08.1985] AT141,TT142 CONSTANT RATIO |
90560-23003 |
US $8.01 |
||
|
45524
|
45524
45524-16010 Cap(For Power Steering Pinion)[10.1983 - 08.1985] AT141,TT142 CONSTANT RATIO |
45524-16010 |
US $8.91 |
||
|
45524A
|
45524A
90179-36002 Nut(For Power Steering Pinion Cap)[10.1983 - 08.1985] AT141,TT142 CONSTANT RATIO |
90179-36002 |
US $4.89 |
||
|
45535
|
45535
45535-22011
Boot, Steering Rack, No.1
[10.1983 - 12.1987] AT14#,TT142 |
45535-22011 |
— | ||
|
45535A
|
45535A
90461-10273 Clamp(For Steering Rack Boot)[10.1983 - 12.1987] AT14#,TT142 ID=41.5 |
90461-10273 |
from US $4.96 |
||
|
45535A
|
45535A
90461-10524 Clamp(For Steering Rack Boot)[10.1983 - 12.1987] AT14#,TT142 ID=61.5 |
90461-10524 |
US $7.72 |
||
|
45535B
|
45535B
90467-18003 Clip Or Clamp(For Ventilation Hose)[10.1983 - 12.1987] AT14#,TT142 |
90467-18003 |
from US $1.92 |
||
|
45536
|
45536
45536-14020
Boot, Steering Rack, No.2
[10.1983 - 12.1987] AT14#,TT142 |
45536-14020 |
— | ||
|
45537A
|
45537A
90214-14005 Washer, Claw(For Power Steering Rack End)[10.1983 - 12.1987] AT14#,TT142 OD=41 |
90214-14005 |
US $3.52 |
||
|
45541
|
45541
45541-22010 Pinion, Steering[10.1983 - 08.1985] AT141,TT142 CONSTANT RATIO |
45541-22010 |
US $55.62 |
||
|
45541A
|
45541A
90363-15006
Bearing, Radial Ball(For Steering Pinion Upper)
[10.1983 - 12.1987] AT14#,TT142 |
90363-15006 |
— | ||
|
45541B
|
45541B
90363-15005 Bearing, Radial Ball(For Steering Pinion Lower)[10.1983 - 12.1987] AT14#,TT142 |
90363-15005 |
US $30.28 |
||
|
45545
|
45545
45545-22010 Screw, Pinion Bearing Adjusting[10.1983 - 08.1985] AT141,TT142 CONSTANT RATIO |
45545-22010 |
US $35.82 |
||
|
45545A
|
45545A
90179-42001 Nut(For Pinion Bearing Adjusting Screw)[10.1983 - 12.1987] AT14#,TT142 |
90179-42001 |
US $7.72 |
||
|
9011910218
|
9011910218
90119-10218 New Genuine Part |
90119-10218 |
US $3.20 |
||
|
9011910220
|
9011910220
90119-10220 New Genuine Part |
90119-10220 |
US $1.89 |
||
| replacement | |||||
|
9011910220
|
9011910220
91642-81025 BOLT WWASHER |
91642-81025 |
from US $1.01 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9326963020
|
9326963020
93269-63020 Screw(For Steering Rack Boot Clamp) |
93269-63020 |
US $1.76 |
||
