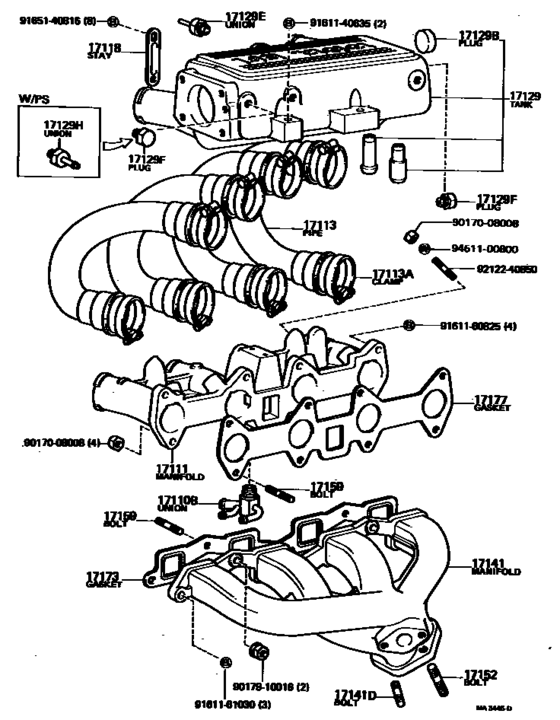

Manifold ([01.1982 - 10.1983] (8201-8310)3TEU) Diagram Toyota CORONA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- TT142
- grade
- SX
- body
- HT
- ENGINE
- 3TEU
- TRANSMISSION
- ATM
- Model
- CORONA
- From
- 01.1982
- To
- 10.1983
- Gear Shift Type
- 4FC
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17110B
|
17110B
90404-53025 Union(For Ventilation Hose To Manifold)[01.1982 - 10.1983] 3TEU..TT142 |
90404-53025 |
US $26.35 |
||
|
17111
|
17111
17111-28010
Manifold, Intake
[01.1982 - 10.1983] 3TEU..TT142 |
17111-28010 |
— | ||
|
17113
|
17113
17113-28010 Pipe, Intake[01.1982 - 10.1983] 3TEU..TT142 |
17113-28010 |
US $189.28 |
||
|
17113A
|
17113A
90460-58003 Clamp, Intake Pipe, No.1[01.1982 - 10.1983] 3TEU..TT142 |
90460-58003 |
US $12.38 |
||
|
17118
|
17118
17118-28010
Stay, Manifold
[01.1982 - 10.1983] 3TEU..TT142 |
17118-28010 |
— | ||
|
17129
|
17129
17109-28011
Tank, Intake Air Surge
[01.1982 - 10.1983] 3TEU..TT142 |
17109-28011 |
— | ||
|
17129B
|
17129B
96411-13000
Plug, Tight, No.1(For Cylinder Block)
[01.1982 - 10.1983] 3TEU..TT142 OD=30 |
96411-13000 |
— | ||
| replacement | |||||
|
17129B
|
17129B
96411-43000 Plug, Tight, No.1[01.1982 - 10.1983] 3TEU..TT142 OD=30 |
96411-43000 |
from US $3.84 |
||
|
17129E
|
17129E
90404-51093 Union, Vacuum Hose[01.1982 - 10.1983] 3TEU..TT142 |
90404-51093 |
US $2.45 |
||
|
17129F
|
17129F
90072-34107
Plug, W/head Taper Screw, No.1
[01.1982 - 08.1985] 3T#..TT142 |
90072-34107 |
— | ||
| replacement | |||||
|
17129F
|
17129F
90345-51006 Plug, W/head Taper Screw, No.2[01.1982 - 08.1985] 3T#..TT142 |
90345-51006 |
US $0.96 |
||
|
17129H
|
17129H
90404-51026 Union(For Vacuum Hose To Carburetor)[01.1982 - 10.1983] 3TEU..TT142 W/PS |
90404-51026 |
US $4.80 |
||
|
17141
|
17141
17141-28010 Manifold, Exhaust[01.1982 - 10.1983] 3TEU..TT142 |
17141-28010 |
US $385.84 |
||
| replacement | |||||
|
17141
|
17141
17141-28030 Manifold, Exhaust[01.1982 - 10.1983] 3TEU..TT142 |
17141-28030 |
US $350.90 |
||
|
17141D
|
17141D
90116-08045 Bolt, Stud(For Oxygen Sensor)[01.1982 - 11.1982] 18RGEU..RT141 L=28,S=8&14; 1SU..ST140 L=28,S=8&14; 3T#..TT142 L=28,S=8&14 |
90116-08045 |
US $3.35 |
||
| replacement | |||||
|
17141D
|
17141D
90116-08128 Bolt, Stud(For Manifold Stay)[01.1982 - 11.1982] 18RGEU..RT141 L=28,S=8&14; 1SU..ST140 L=28,S=8&14; 3T#..TT142 L=28,S=8&14 |
90116-08128 |
US $4.16 |
||
|
17152
|
17152
90116-10056
Bolt, Stud(For Turbocharger)
[01.1982 - 05.1983] 12TJ,3TEU..TT14# L=43,S=14&20 |
90116-10056 |
— | ||
| replacement | |||||
|
17152
|
17152
90116-10087 Bolt, Stud(For Turbocharger)[01.1982 - 05.1983] 12TJ,3TEU..TT14# L=43,S=14&20 |
90116-10087 |
from US $2.40 |
||
|
17159
|
17159
90116-08035 Bolt, Stud(For Manifold To Cylinder Head)[01.1982 - 10.1983] 12TJ,3TEU..TT14# INTAKE MANIFOLD |
90116-08035 |
US $2.48 |
||
|
17159
|
17159
92122-61025 Bolt, Stud(For Manifold To Cylinder Head)[01.1982 - 08.1985] 18RGEU..RT141 EXHAUST MANIFOLD; 12TJ,3T#..TT14# EXHAUST MANIFOLD |
92122-61025 |
US $3.68 |
||
|
17173
|
17173
17173-25012
Gasket, Exhaust Manifold To Head
[01.1982 - 10.1983] 12TJ,3TEU..TT14# |
17173-25012 |
— | ||
| replacement | |||||
|
17173
|
17173
17173-25013 Gasket, Exhaust Manifold To Head[01.1982 - 10.1983] 12TJ,3TEU..TT14# |
17173-25013 |
US $8.56 |
||
|
17177
|
17177
17177-25030
Gasket, Intake Manifold To Head, No.1
[01.1982 - 10.1983] 12TJ,3TEU..TT14# |
17177-25030 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-25031 Gasket, Intake Manifold To Head, No.1[01.1982 - 10.1983] 12TJ,3TEU..TT14# |
17177-25031 |
US $7.13 |
||
|
9017008008
|
9017008008
90170-08008 New Genuine Part |
90170-08008 |
US $1.60 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.98 |
||
|
9161140635
|
9161140635
91611-40635
New Genuine Part
|
91611-40635 |
— | ||
| replacement | |||||
|
9161140635
|
9161140635
91611-60635 New Genuine Part |
91611-60635 |
US $2.08 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.13 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9212240850
|
9212240850
92122-40850 New Genuine Part |
92122-40850 |
US $1.89 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
