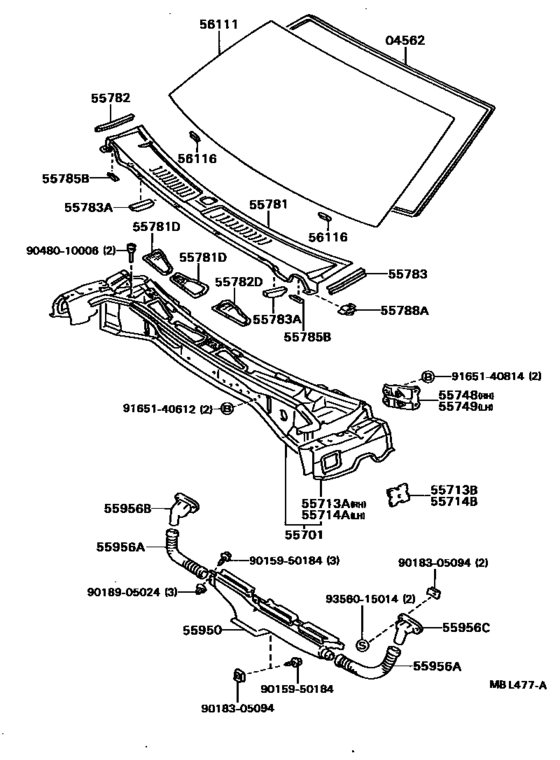

Cowl Panel & Windshield Glass ([12.1986 - ] (8612- )CT141,YT140) Diagram Toyota CORONA
- Year
- 1982 - 1998
- Sales region
- Japan
- Frame
- YT140
- grade
- DLX
- body
- SED
- ENGINE
- 2YPU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 09.1982
- To
- 04.1998
- Gear Shift Type
- 5F
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04562
|
04562
04562-12010 Dam Kit, Windshield Glass[11.1992 - 04.1998] YT140 |
04562-12010 |
from US $31.92 |
||
|
04562
|
04562
04562-30030
Dam Kit, Windshield Glass
[01.1982 - 08.1983] AT140,CT14#,ST140,TT142,YT140 |
04562-30030 |
— | ||
| replacement | |||||
|
04562
|
04562
04562-30040 Dam Kit, Windshield Glass[01.1982 - 08.1983] AT140,CT14#,ST140,TT142,YT140 |
04562-30040 |
US $36.33 |
||
|
04562
|
04562
04562-30040 Dam Kit, Windshield Glass[08.1983 - 11.1992] AT14#,CT14#,KT147,ST140,TT14#,YT140 |
04562-30040 |
US $36.33 |
||
|
55701
|
55701
55700-20280
Panel Sub-Assy, Cowl
[09.1982 - 12.1986] YT140..3FC,5F |
55700-20280 |
— | ||
|
55701
|
55701
55700-20640 Panel Sub-Assy, Cowl[12.1986 - 04.1998] YT140..3FC,5F |
55700-20640 |
US $588.22 |
||
|
55713A
|
55713A
55713-14060 Panel, Cowl Top Side, Rh[01.1982 - 12.1986] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
55713-14060 |
US $41.35 |
||
|
55713B
|
55713B
62161-14010
Cover, Cowl Side Panel Hole, Rh
[01.1982 - 12.1986] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
62161-14010 |
— | ||
|
55714A
|
55714A
55714-14060 Panel, Cowl Top Side, Lh[01.1982 - 12.1986] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
55714-14060 |
US $41.35 |
||
|
55714B
|
55714B
62161-14010
Cover, Cowl Side Panel Hole, Rh
[10.1983 - 12.1986] AT14#,CT14#,KT147,ST140,TT142,YT140 |
62161-14010 |
— | ||
|
55714B
|
55714B
62162-14010
Cover, Cowl Side Panel Hole, Lh
[01.1982 - 10.1983] AT140,CT14#,RT141,ST140,TT14#,YT140 |
62162-14010 |
— | ||
|
55748
|
55748
55748-14020 Brace, Cowl Top To Pillar, Rh[01.1982 - 12.1986] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
55748-14020 |
US $29.70 |
||
|
55749
|
55749
55749-14050 Brace, Cowl Top To Pillar, Lh[01.1982 - 12.1986] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
55749-14050 |
US $29.70 |
||
|
55781
|
55781
55781-20160 Louver, Cowl Ventilator[12.1986 - 04.1998] CT141,YT140 |
55781-20160 |
US $80.08 |
||
|
55781D
|
55781D
55781-14110 Louver, Cowl Top Ventilator, Rh[01.1982 - 12.1986] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
55781-14110 |
US $8.88 |
||
|
55782
|
55782
55782-20050 Protector, Cowl Top Ventilator Louver, Rh[12.1986 - 04.1998] CT141,YT140 |
55782-20050 |
US $4.51 |
||
|
55782D
|
55782D
55782-14030 Louver, Cowl Top Ventilator, Lh[12.1986 - 04.1998] CT141,YT140 |
55782-14030 |
US $21.55 |
||
|
55783
|
55783
55782-20050 Protector, Cowl Top Ventilator Louver, Rh[12.1986 - 04.1998] CT141,YT140 |
55782-20050 |
US $4.51 |
||
|
55783A
|
55783A
55783-20120 Pad, Cowl Top Silencer[12.1986 - 04.1998] CT141,YT140 |
55783-20120 |
US $4.66 |
||
|
55785B
|
55785B
55785-20060 Sheet, Cowl Top Ventilator Louver[12.1986 - 04.1998] CT141,YT140 |
55785-20060 |
US $3.64 |
||
|
55788A
|
55788A
55788-20070 Protector, Cowl Top Ventilator Louver[12.1986 - 04.1998] CT141,YT140 |
55788-20070 |
US $5.24 |
||
|
55950
|
55950
55950-14110 Nozzle Assy, Defroster[01.1982 - 12.1986] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
55950-14110 |
US $71.34 |
||
|
55956A
|
55956A
55971-14010
Duct, Side Defroster Nozzle, No.1
[01.1982 - 12.1986] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
55971-14010 |
— | ||
|
55956B
|
55956B
55972-14030 Duct, Side Defroster Nozzle, No.2[01.1982 - 12.1986] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
55972-14030 |
US $11.94 |
||
|
55956C
|
55956C
55973-14020 Duct, Side Defroster Nozzle, No.3[01.1982 - 12.1986] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140..SED,V |
55973-14020 |
US $11.94 |
||
|
56111
|
56111
56111-14260 Glass, Windshield[01.1983 - 08.1985] YT140;AT140,CT140,KT147,TT147..STD ＊ＴＥＭ，Ｔ＝５．０,*TEM,T=5.0 |
56111-14260 |
US $671.22 |
||
| replacement | |||||
|
56111
|
56111
56111-14280
Glass, Windshield
[01.1983 - 08.1985] YT140;AT140,CT140,KT147,TT147..STD ＊ＴＥＭ，Ｔ＝５．０,*TEM,T=5.0 |
56111-14280 |
— | ||
|
56111
|
56111
56111-14270
Glass, Windshield
[01.1982 - 08.1985] AT14#,CT14#,KT147,ST140,TT14#,YT140..(SED,V)..(DLX,EXS,GT,GTT,GX,GXA,STD,SX) ＊ＴＴ，Ｔ＝５．０,*TT,T=5.0 |
56111-14270 |
— | ||
| replacement | |||||
|
56111
|
56111
56111-14280
Glass, Windshield
[01.1982 - 08.1985] AT14#,CT14#,KT147,ST140,TT14#,YT140..(SED,V)..(DLX,EXS,GT,GTT,GX,GXA,STD,SX) ＊ＴＴ，Ｔ＝５．０,*TT,T=5.0 |
56111-14280 |
— | ||
|
56111
|
56111
56111-14280
Glass, Windshield
[08.1985 - 12.1986] AT140,CT14#,KT147,ST140,YT140 ＊ＴＬ，Ｔ＝５．３,*TL,T=5.3 |
56111-14280 |
— | ||
|
56111
|
56111
56111-20350 Glass, Windshield[08.1985 - 12.1986] YT140;AT140,CT140,KT147..STD ＊ＬＡＭ，Ｔ＝５．３,*LAM,T=5.3 |
56111-20350 |
US $1,269.63 |
||
| replacement | |||||
|
56111
|
56111
56111-14280
Glass, Windshield
[08.1985 - 12.1986] YT140;AT140,CT140,KT147..STD ＊ＬＡＭ，Ｔ＝５．３,*LAM,T=5.3 |
56111-14280 |
— | ||
|
56111
|
56111
56111-20530 Glass, Windshield[12.1986 - 04.1998] CT141,YT140 *LAM,T=5.3 |
56111-20530 |
US $1,112.38 |
||
| replacement | |||||
|
56111
|
56111
56111-20540 Glass, Windshield[12.1986 - 04.1998] CT141,YT140 *LAM,T=5.3 |
56111-20540 |
US $1,265.26 |
||
|
56111
|
56111
56111-20540 Glass, Windshield[12.1986 - 04.1998] CT141,YT140 *TL,T=5.3 |
56111-20540 |
US $1,265.26 |
||
|
56116
|
56116
56116-14020
Spacer, Windshield Glass
[01.1982 - 12.1986] AT14#,CT14#,KT147,RT141,ST140,TT14#,YT140 |
56116-14020 |
— | ||
|
9015950184
|
9015950184
90159-50184 New Genuine Part |
90159-50184 |
US $1.60 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.98 |
||
|
9018905024
|
9018905024
90189-05024 NUT |
90189-05024 |
US $2.08 |
||
|
9048010006
|
9048010006
90480-10006 New Genuine Part |
90480-10006 |
US $8.44 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.42 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9356015014
|
9356015014
93560-15014 SCREW |
93560-15014 |
US $1.12 |
||
