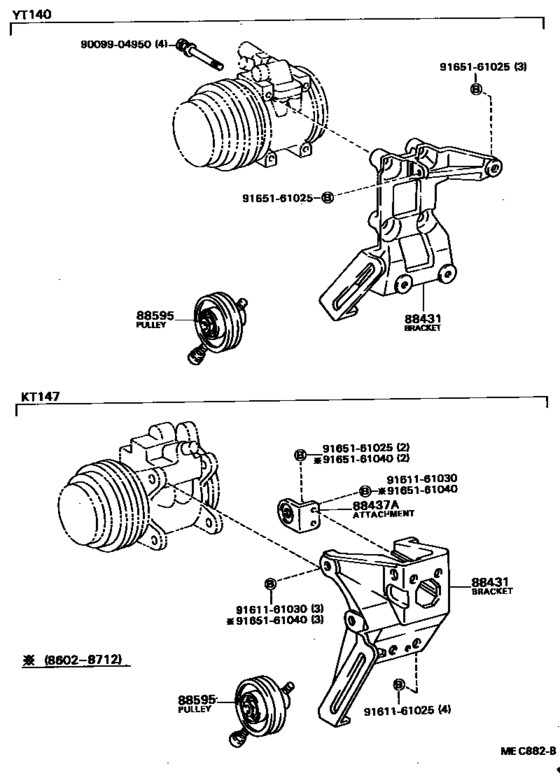

Heating & Air Conditioning - Compressor ([09.1982 - ] (8209- )KT147,YT140) Diagram Toyota CORONA
- Year
- 1982 - 1998
- Sales region
- Japan
- Frame
- YT140
- grade
- DLX
- body
- SED
- ENGINE
- 2YPU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 09.1982
- To
- 04.1998
- Gear Shift Type
- 5F
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88431
|
88431
88431-20250
Bracket, Compressor Mounting, No.1
[09.1982 - 04.1998] YT140 |
88431-20250 |
— | ||
|
88595
|
88595
88440-30250 Pulley Assy, Idle[01.1982 - 04.1998] TT142,YT140..DLX,STD,SX |
88440-30250 |
US $78.62 |
||
| replacement | |||||
|
88595
|
88595
88440-28050
Pulley, Cooler Compressor Idle
[01.1982 - 04.1998] TT142,YT140..DLX,STD,SX |
88440-28050 |
— | ||
|
9009904950
|
9009904950
90099-04950 BOLT |
90099-04950 |
from US $1.89 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.13 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.13 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.58 |
||
|
9165161040
|
9165161040
91651-61040 Bolt (For Transfer Case) |
91651-61040 |
US $1.92 |
||
