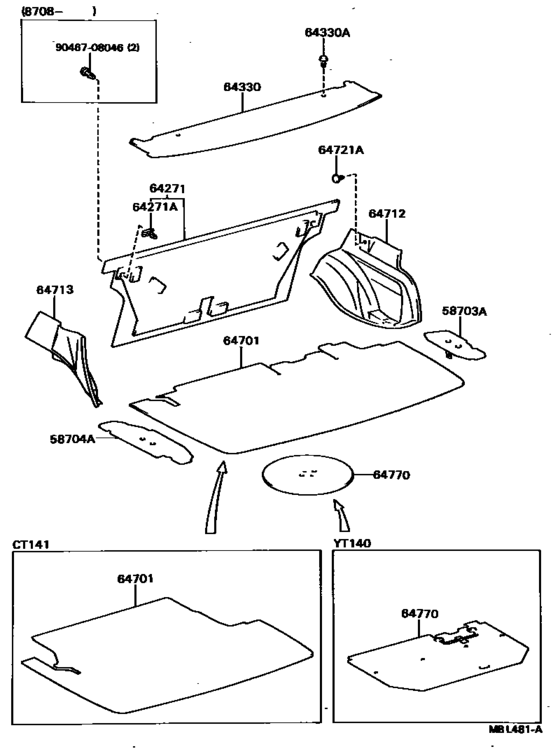

Package Tray Panel & Luggage Compartment Mat ([12.1986 - ] (8612- )CT141,YT140) Diagram Toyota CORONA
- Year
- 1982 - 1998
- Sales region
- Japan
- Frame
- YT140
- grade
- DLX
- body
- SED
- ENGINE
- 2YPU
- TRANSMISSION
- MTM
- Model
- CORONA
- From
- 09.1982
- To
- 04.1998
- Gear Shift Type
- 5F
- Seating Capacity
- 05S
- Vehicle Model
- Corona
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58703A
|
58703A
58703-20030 Cover Sub-Assy, Luggage Compartment Side, Rh[01.1982 - 12.1986] AT14#,CT140,RT141,ST140,TT142,YT140..SED RH |
58703-20030 |
US $15.87 |
||
|
58703A
|
58703A
58703-20090 Cover Sub-Assy, Luggage Compartment Side, Rh[12.1986 - 04.1998] CT141,YT140 RH |
58703-20090 |
US $17.04 |
||
|
58704A
|
58704A
58704-20020 Cover Sub-Assy, Luggage Compartment Side, Lh[01.1982 - 12.1986] AT14#,CT140,RT141,ST140,TT142,YT140..SED LH |
58704-20020 |
US $18.64 |
||
|
58704A
|
58704A
58704-20090 Cover Sub-Assy, Luggage Compartment Side, Lh[12.1986 - 04.1998] CT141,YT140 LH |
58704-20090 |
US $17.04 |
||
|
64271
|
64271
64270-14061 Board, Room Partition, No.1[01.1982 - 07.1983] AT140,CT140,RT141,ST140,TT142,YT140..SED..(DLX,GT,GTT,GX,GXA,STD,SX) |
64270-14061 |
US $61.01 |
||
|
64271
|
64271
64270-14062 Board, Room Partition, No.1[07.1983 - 10.1983] AT140,CT140,ST140,TT142,YT140..SED..(DLX,GTT,GX,GXA,STD,SX) |
64270-14062 |
US $64.36 |
||
|
64271
|
64271
64270-20050 Board, Room Partition, No.1[12.1986 - 02.1992] CT141,YT140 |
64270-20050 |
US $57.80 |
||
| replacement | |||||
|
64271
|
64271
64271-20250 Board, Room Partition, No.1[12.1986 - 02.1992] CT141,YT140 |
64271-20250 |
US $57.95 |
||
|
64271
|
64271
64271-20250 Board, Room Partition, No.1[02.1992 - 04.1998] YT140 |
64271-20250 |
US $57.95 |
||
|
64271A
|
64271A
62598-14020 Retainer, Room Partition Board[01.1982 - 12.1986] AT14#,CT140,RT141,ST140,TT142,YT140..SED |
62598-14020 |
US $4.08 |
||
|
64330
|
64330
64330-20340-01 Panel Assy, Package Tray Trim[01.1982 - 10.1983] YT140;AT140,CT140,TT142..SED..(GTT,STD) BLACK,BLACK,TRIM2# |
64330-20340-01 |
US $40.91 |
||
| replacement | |||||
|
64330
|
64330
64330-20340-B0 Panel Assy, Package Tray Trim[01.1982 - 10.1983] YT140;AT140,CT140,TT142..SED..(GTT,STD) BLACK,BLACK,TRIM2# |
64330-20340-B0 |
US $40.91 |
||
|
64330
|
64330
64330-20800-01 Panel Assy, Package Tray Trim[12.1986 - 01.1994] CT141,YT140 BLACK,BLACK,TRIM2# |
64330-20800-01 |
US $55.18 |
||
|
64330
|
64330
64330-2B780-C0 Panel Assy, Package Tray Trim[07.1992 - 01.1994] YT140 ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),BLACK,BLACK,TRIM2# |
64330-2B780-C0 |
US $55.18 |
||
|
64330
|
64330
64330-2B790-C0 Panel Assy, Package Tray Trim[07.1992 - 01.1994] YT140 ｱﾘ(3ﾎﾟｲﾝﾄ ﾀｲﾌﾟ ﾘﾔ ｼ-ﾄﾍﾞﾙﾄ & ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),BLACK,BLACK,TRIM2# |
64330-2B790-C0 |
US $55.47 |
||
|
64330
|
64330
64330-2B800-C0 Panel Assy, Package Tray Trim[07.1992 - 01.1994] YT140 ｱﾘ(3ﾎﾟｲﾝﾄ ﾀｲﾌﾟ ﾘﾔ ｼ-ﾄﾍﾞﾙﾄ),BLACK,BLACK,TRIM2# |
64330-2B800-C0 |
US $55.62 |
||
|
64330A
|
64330A
90467-08037-01
Clip(For Package Tray Trim Panel)
[04.1983 - 10.1983] YT140;ST140,TT142..HT;AT140,CT140,TT142..SED..(GTT,STD) BLACK,BLACK,TRIM2# |
90467-08037-01 |
— | ||
| replacement | |||||
|
64330A
|
64330A
90467-08037-11
Clip(For Package Tray Trim Panel)
[04.1983 - 10.1983] YT140;ST140,TT142..HT;AT140,CT140,TT142..SED..(GTT,STD) BLACK,BLACK,TRIM2# |
90467-08037-11 |
— | ||
|
64330A
|
64330A
90467-08046-01
Clip(For Package Tray Trim Panel)
[12.1986 - 04.1998] CT141,YT140 BLACK,BLACK,TRIM2# |
90467-08046-01 |
— | ||
|
64330A
|
64330A
90467-09144-01 Clip(For Package Tray Trim Panel)[01.1982 - 04.1983] YT140;RT141,ST140,TT142..HT;AT140,CT140,TT142..SED..(GTT,STD) BLACK,BLACK,TRIM2# |
90467-09144-01 |
US $2.04 |
||
|
64701
|
64701
64711-20210
Mat Sub-Assy, Luggage Compartment
[09.1982 - 12.1986] YT140 |
64711-20210 |
— | ||
|
64701
|
64701
64711-20410-03 Mat Sub-Assy, Luggage Compartment[12.1986 - 09.1989] YT140 GRAY,GRAY,TRIM2# |
64711-20410-03 |
US $101.92 |
||
|
64701
|
64701
64711-20411-03 Mat Sub-Assy, Luggage Compartment[09.1989 - 04.1998] YT140 GRAY,GRAY,TRIM2# |
64711-20411-03 |
US $58.39 |
||
|
64712
|
64712
64712-20070 Cover, Luggage Compartment Trim, Rh[09.1982 - 10.1982] YT140..DLX |
64712-20070 |
US $75.71 |
||
|
64712
|
64712
64712-20090
Cover, Luggage Compartment Trim, Rh
[10.1982 - 12.1986] YT140..DLX |
64712-20090 |
— | ||
|
64712
|
64712
64712-20140-03 Cover, Luggage Compartment Trim, Rh[12.1986 - 04.1998] YT140..DLX GRAY,GRAY,TRIM2# |
64712-20140-03 |
US $32.61 |
||
|
64713
|
64713
64713-20090 Cover, Luggage Compartment Trim, Lh[09.1982 - 12.1986] YT140..DLX |
64713-20090 |
US $35.24 |
||
|
64713
|
64713
64713-20140-03 Cover, Luggage Compartment Trim, Lh[12.1986 - 04.1998] YT140..DLX GRAY,GRAY,TRIM2# |
64713-20140-03 |
US $22.42 |
||
|
64721A
|
64721A
90467-07158-01 Clip(For Floor Mat, Rear)[09.1982 - 04.1998] YT140..DLX BLACK |
90467-07158-01 |
US $1.44 |
||
|
64770
|
64770
64770-20040 Cover Assy, Spare Wheel[09.1982 - 12.1986] YT140 |
64770-20040 |
US $69.31 |
||
|
64770
|
64770
64770-20041 Cover Assy, Spare Wheel[12.1986 - 08.1989] YT140 |
64770-20041 |
US $71.34 |
||
|
64770
|
64770
64770-20042 Cover Assy, Spare Wheel[08.1989 - 04.1998] YT140 |
64770-20042 |
US $56.35 |
||
|
9046708046
|
9046708046
90467-08046 Clip(For Package Tray Trim Panel) |
90467-08046 |
US $1.75 |
||
| replacements | |||||
|
9046708046
|
9046708046
90467-08046-D0 Clip(For Package Tray Trim Panel) |
90467-08046-D0 |
US $1.60 |
||
|
9046708046
|
9046708046
90467-08046-B1
Clip(For Package Tray Trim Panel)
|
90467-08046-B1 |
— | ||
|
9046708046
|
9046708046
90467-08046-J0
Clip(For Package Tray Trim Panel)
|
90467-08046-J0 |
— | ||
