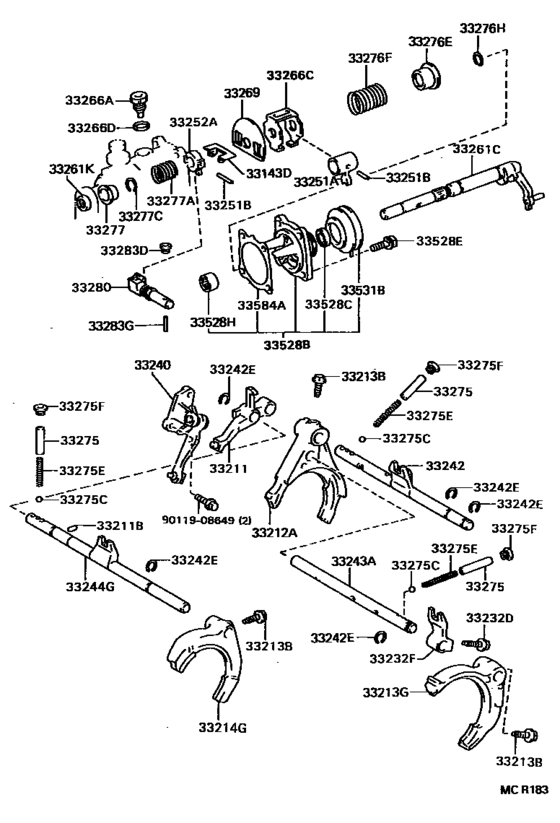

Gear Shift Fork & Lever Shaft (Mtm) ([09.1993 - ] E56,E56F (9309- )ST202,205..MTM) Diagram Toyota CORONA EXIV
- Year
- 1993 - 1995
- Sales region
- Japan
- Frame
- ST202
- grade
- TRR
- ENGINE
- 3SFE
- TRANSMISSION
- MTM
- From
- 09.1993
- To
- 08.1995
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33211
|
33211
33270-33011 Fork, Reverse Shift[09.1993 -] ST200,201,202,203..MTM |
33270-33011 |
US $63.34 |
||
|
33211B
|
33211B
90361-08002 Roller(For Reverse Shift Fork)[09.1993 -] ST200,201,202,203..MTM |
90361-08002 |
US $3.06 |
||
|
33212A
|
33212A
33210-32023 Fork, Gear Shift, No.1[09.1993 -] ST200,201,202,203..MTM |
33210-32023 |
US $216.94 |
||
|
33213B
|
33213B
90105-06065 Bolt(For Shift Fork Set)[09.1993 -] ST200,201,202,203..MTM |
90105-06065 |
US $2.33 |
||
|
33213G
|
33213G
33220-32023 Fork, Gear Shift, No.2[09.1993 - 04.1998] ST200,201,202,203..MTM |
33220-32023 |
US $104.83 |
||
| replacement | |||||
|
33213G
|
33213G
33220-32024
Fork, Gear Shift, No.2
[09.1993 - 04.1998] ST200,201,202,203..MTM |
33220-32024 |
— | ||
|
33214G
|
33214G
33214-33010 Fork, Gear Shift, No.3[09.1993 -] ST200,201,202,203..MTM |
33214-33010 |
US $58.53 |
||
|
33232F
|
33232F
33232-32012 Head, Gear Shift, No.1[09.1993 -] ST200,201,202,203..MTM |
33232-32012 |
US $42.37 |
||
|
33240
|
33240
33240-33010 Bracket Assy, Reverse Shift Arm[09.1993 -] ST200,201,202,203..MTM |
33240-33010 |
US $99.01 |
||
|
33242
|
33242
33242-33020 Shaft, Gear Shift Fork, No.1[09.1993 -] ST200,201,202,203..MTM |
33242-33020 |
US $56.93 |
||
|
33243A
|
33243A
33243-32010 Shaft, Reverse Shift Fork[09.1993 - 04.1998] ST200,201,202,203..MTM |
33243-32010 |
US $19.95 |
||
| replacement | |||||
|
33243A
|
33243A
33243-32011 Shaft, Gear Shift Fork, No.2[09.1993 - 04.1998] ST200,201,202,203..MTM |
33243-32011 |
US $20.68 |
||
|
33251A
|
33251A
33251-33010 Lever, Shift, Inner No.1[09.1993 - 04.1998] ST200,201,202,203..MTM |
33251-33010 |
US $19.36 |
||
| replacement | |||||
|
33251A
|
33251A
33251-33011
Lever, Shift, Inner No.1
[09.1993 - 04.1998] ST200,201,202,203..MTM |
33251-33011 |
— | ||
|
33251B
|
33251B
90254-05007 Pin, Slotted Spring (For Shift Inner Lever)[09.1993 -] ST20#..MTM 長さ＝４７．０ |
90254-05007 |
US $3.68 |
||
|
33252A
|
33252A
33252-33010 Lever, Shift, Inner No.2[09.1993 -] ST200,201,202,203..MTM |
33252-33010 |
US $8.88 |
||
|
33261C
|
33261C
33261-33010
Shaft, Shift & Select Lever
[09.1993 -] ST200,201,202,203..MTM |
33261-33010 |
— | ||
|
33266C
|
33266C
33266-33011 Plate, Shift Inter Lock[09.1993 -] ST200,201,202,203..MTM |
33266-33011 |
US $13.69 |
||
|
33276E
|
33276E
33276-33011 Seat, Select Spring, No.1[09.1993 -] ST200,201,202,203..MTM |
33276-33011 |
US $19.36 |
||
|
33276F
|
33276F
90501-13036 Spring, Compression, No.1 (For Select Return)[09.1993 -] ST200,201,202,203..MTM |
90501-13036 |
US $1.89 |
||
|
33277
|
33277
33277-33010 Seat, Select Spring, No.2[09.1993 -] ST200,201,202,203..MTM |
33277-33010 |
US $7.13 |
||
|
33277A
|
33277A
90501-16135 Spring, Compression, No.2 (For Select Return)[09.1993 - 02.1994] ST20#..MTM |
90501-16135 |
US $3.20 |
||
| replacement | |||||
|
33277A
|
33277A
90501-16144 Spring, Compression, No.2 (For Select Return)[09.1993 - 02.1994] ST20#..MTM |
90501-16144 |
US $3.20 |
||
|
33277A
|
33277A
90501-16144 Spring, Compression, No.2 (For Select Return)[02.1994 -] ST200,201,202,203..MTM |
90501-16144 |
US $3.20 |
||
|
33280
|
33280
33280-32012 Pin Assy, Reverse Restrict[09.1993 -] ST200,201,202,203..MTM |
33280-32012 |
US $44.84 |
||
|
33283D
|
33283D
90341-10065 Plug, Straight, No.1[09.1993 -] ST20#..MTM |
90341-10065 |
US $3.94 |
||
|
33283G
|
33283G
90254-04005 Pin, Slotted Spring (For Reverse Restrict Pin)[09.1993 -] ST200,201,202,203..MTM |
90254-04005 |
US $0.96 |
||
|
33528B
|
33528B
33506-33010 Cover, Control Shaft[09.1993 -] ST200,201,202,203..MTM |
33506-33010 |
US $36.69 |
||
|
33528C
|
33528C
90311-18013 Seal, Oil (For Control Shaft Cover)[09.1993 -] ST20#..MTM |
90311-18013 |
from US $2.32 |
||
|
33531B
|
33531B
33531-32011 Boot, Dust (For Shift & Select Lever Shaft)[09.1993 -] ST200,201,202,203..MTM |
33531-32011 |
from US $10.48 |
||
|
9011908649
|
9011908649
90119-08649 Bolt(For Intake Manifold To Exhaust Manifold) |
90119-08649 |
US $1.89 |
||
| replacement | |||||
|
9011908649
|
9011908649
91611-60822 Bolt |
91611-60822 |
from US $1.19 |
||
