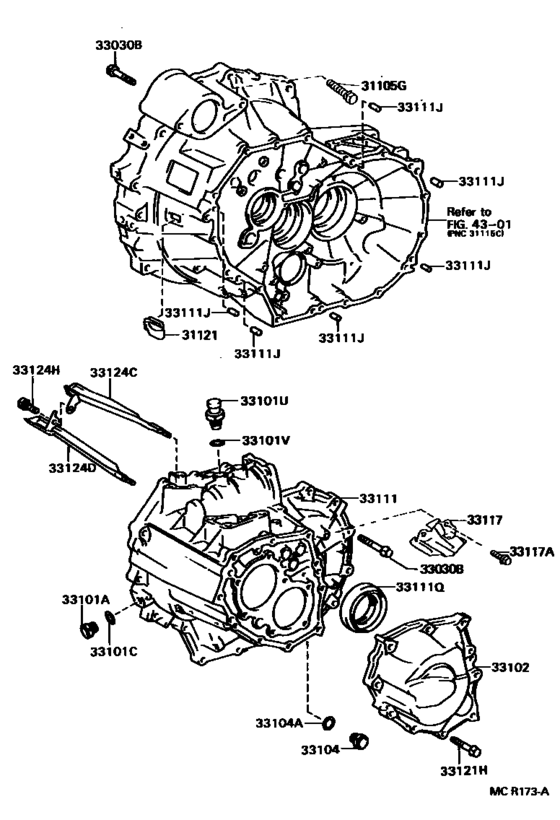

Clutch Housing & Transmission Case (Mtm) ([09.1993 - ] E56,E56F (9309- )ST202,205..MTM) Diagram Toyota CORONA EXIV
- Year
- 1993 - 1995
- Sales region
- Japan
- Frame
- ST202
- grade
- TRG
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- From
- 09.1993
- To
- 08.1995
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105G
|
31105G
90105-08040
Bolt(For Plate Bolt Lock)
[09.1993 -] ST200,201,202,203..MTM ＊８−１．２５ＰＸ１８−１５ |
90105-08040 |
— | ||
| replacement | |||||
|
31105G
|
31105G
91641-H0820 Bolt[09.1993 -] ST200,201,202,203..MTM ＊８−１．２５ＰＸ１８−１５ |
91641-H0820 |
from US $0.80 |
||
|
31105G
|
31105G
90105-10077 Bolt(For Transaxle Case Protector)[09.1993 -] ST20#..MTM ＊１０−１．２５ＰＸ４３−２６ |
90105-10077 |
US $4.66 |
||
|
31105G
|
31105G
90119-12168 Bolt(For Transaxle & Engine Setting)[09.1993 -] ST20#..MTM ＊１２−１．２５ＰＸ５５−３０ |
90119-12168 |
from US $2.01 |
||
|
31105G
|
31105G
91651-41022 Bolt(For Transaxle & Engine Setting)[09.1993 -] ST20#..MTM ＊１０−１．２５ＰＸ２２−２２ |
91651-41022 |
US $2.87 |
||
|
31121
|
31121
31121-20010
Cover, Clutch Housing, No.1
[09.1993 -] ST202,205..MTM..(GT4WD,TRG,TRG4) |
31121-20010 |
— | ||
|
33030B
|
33030B
90105-08042
Bolt(For Transaxle Case & Transmission Case Setting)
[09.1993 -] ST200,201,202,203..MTM ＊８−１．２５ＰＸ４５−２７．５ |
90105-08042 |
— | ||
| replacement | |||||
|
33030B
|
33030B
90105-08430 Bolt(For Transaxle Case & Transmission Case Setting)[09.1993 -] ST200,201,202,203..MTM ＊８−１．２５ＰＸ４５−２７．５ |
90105-08430 |
US $0.79 |
||
|
33030B
|
33030B
90105-08126 Bolt(For Transaxle Case & Transmission Case Setting)[09.1993 -] ST202,205..MTM..(GT4WD,TRG,TRG4) ＊８−１．２５ＰＸ４５−２７．５,ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ) |
90105-08126 |
US $3.40 |
||
|
33101A
|
33101A
90341-18006 Plug (No magnet)[09.1993 -] ST200,201,202,203..MTM |
90341-18006 |
from US $3.23 |
||
|
33101A
|
33101A
90341-18033 Plug(For Manual Transmission Filler)[09.1993 -] ST202,205..MTM..(GT4WD,TRG,TRG4) ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ) |
90341-18033 |
from US $3.40 |
||
|
33101C
|
33101C
90430-18008 Gasket[09.1993 -] ST20#..MTM |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33101C
|
33101C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[09.1993 -] ST20#..MTM |
90430-T0021 |
US $1.01 |
||
|
33101U
|
33101U
90930-03111
Plug, Breather(For Manual Transmission)
[09.1993 - 08.1996] ST202,205..MTM..(GT4WD,TRG,TRG4) ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ) |
90930-03111 |
— | ||
| replacement | |||||
|
33101U
|
33101U
90930-03148 Plug, Breather(For Manual Transmission)[09.1993 - 08.1996] ST202,205..MTM..(GT4WD,TRG,TRG4) ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ) |
90930-03148 |
US $23.41 |
||
|
33101U
|
33101U
90930-03133 Plug, Breather[09.1993 -] ST200,201,202,203..MTM |
90930-03133 |
from US $6.63 |
||
|
33101V
|
33101V
90430-18008 Gasket[09.1993 -] ST202,205..MTM..(GT4WD,TRG,TRG4) |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33101V
|
33101V
90430-T0021 Gasket(For Manual Transmission Filler Plug)[09.1993 -] ST202,205..MTM..(GT4WD,TRG,TRG4) |
90430-T0021 |
US $1.01 |
||
|
33102
|
33102
33102-12041 Cover Sub-Assy, Manual Transmission Case[09.1993 -] ST202,205..MTM..(GT4WD,TRG,TRG4) ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ) |
33102-12041 |
US $66.54 |
||
| replacement | |||||
|
33102
|
33102
33102-12043 Cover Sub-Assy, Manual Transmission CaseMANUAL TRANSMISSION CASE [09.1993 -] ST202,205..MTM..(GT4WD,TRG,TRG4) ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ) |
33102-12043 |
US $55.47 |
||
|
33102
|
33102
33102-33020 Cover Sub-Assy, Manual Transmission Case[09.1993 -] ST200,201,202,203..MTM |
33102-33020 |
US $219.86 |
||
|
33104
|
33104
90341-18006 Plug (No magnet)[09.1993 -] ST20#..MTM |
90341-18006 |
from US $3.23 |
||
|
33104A
|
33104A
90430-18008 Gasket[09.1993 -] ST20#..MTM |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[09.1993 -] ST20#..MTM |
90430-T0021 |
US $1.01 |
||
|
33111
|
33111
33101-12170 Case, Manual Transmission[09.1993 -] ST202,205..MTM..(GT4WD,TRG,TRG4) ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ) |
33101-12170 |
US $550.37 |
||
| replacements | |||||
|
33111
|
33111
33101-42020 Case, Manual Transmission[09.1993 -] ST202,205..MTM..(GT4WD,TRG,TRG4) ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ) |
33101-42020 |
US $553.28 |
||
|
33111
|
33111
90311-50027 Oil Seal, Front Drive Shaft, Lh[09.1993 -] ST202,205..MTM..(GT4WD,TRG,TRG4) ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ) |
90311-50027 |
from US $10.39 |
||
|
33111
|
33111
33250-28010 Shaft Assy, Shift & Select Lever[09.1993 -] ST202,205..MTM..(GT4WD,TRG,TRG4) ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ) |
33250-28010 |
US $238.78 |
||
|
33111
|
33111
33290-33020 Ball Assy, Lock, No.1[09.1993 -] ST202,205..MTM..(GT4WD,TRG,TRG4) ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ) |
33290-33020 |
US $21.49 |
||
|
33111
|
33111
33250-28052 Shaft Assy, Shift & Select LeverSHIFT & SELECT LEVER [09.1993 -] ST202,205..MTM..(GT4WD,TRG,TRG4) ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ) |
33250-28052 |
from US $219.33 |
||
|
33111
|
33111
33111-33030 Case, Manual Transmission[09.1993 - 11.1994] ST200,201,202,203..MTM |
33111-33030 |
US $511.06 |
||
| replacement | |||||
|
33111
|
33111
33111-33040 Case, Manual Transmission[09.1993 - 11.1994] ST200,201,202,203..MTM |
33111-33040 |
US $509.60 |
||
|
33111
|
33111
33111-33031 Case, Manual Transmission[11.1994 - 04.1997] ST200,202,203..MTM |
33111-33031 |
US $512.51 |
||
| replacement | |||||
|
33111
|
33111
33111-32030 Case, Manual Transmission[11.1994 - 04.1997] ST200,202,203..MTM |
33111-32030 |
US $512.51 |
||
|
33111J
|
33111J
90250-08054 Pin, Straight[09.1993 -] ST202,205..MTM..(GT4WD,TRG,TRG4) 長さ＝２３，外径＝８,ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ) |
90250-08054 |
from US $0.98 |
||
|
33111J
|
33111J
90250-12005 Pin, Straight(For Manual Transmission Case)[09.1993 - 08.1995] ST202..MTM..TRG 長さ＝２４，外径＝１２ |
90250-12005 |
US $3.04 |
||
|
33111Q
|
33111Q
90311-50010
Seal, Oil(For Transmission Case)
[09.1993 - 08.1995] ST202..MTM..TRG |
90311-50010 |
— | ||
| replacement | |||||
|
33111Q
|
33111Q
90311-50027 Oil Seal, Front Drive Shaft, Lh[09.1993 - 08.1995] ST202..MTM..TRG |
90311-50027 |
from US $10.39 |
||
|
33117
|
33117
33117-20020 Protector, Manual Transmission Case[09.1993 -] ST202,205..MTM..(GT4WD,TRG,TRG4) ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ) |
33117-20020 |
US $27.61 |
||
|
33117
|
33117
33117-32011 Protector, Manual Transmission Case[09.1993 -] ST200,201,202,203..MTM |
33117-32011 |
US $27.08 |
||
|
33117A
|
33117A
90105-08040
Bolt(For Plate Bolt Lock)
[09.1993 -] ST20#..MTM |
90105-08040 |
— | ||
| replacement | |||||
|
33117A
|
33117A
91641-H0820 Bolt[09.1993 -] ST20#..MTM |
91641-H0820 |
from US $0.80 |
||
|
33121H
|
33121H
90105-08273 Bolt, W/washer(For Transmission Case Cover)[09.1993 -] ST200,201,202,203..MTM |
90105-08273 |
US $1.65 |
||
|
33121H
|
33121H
90119-08630 Bolt, W/washer(For Transmission Case Cover)[09.1993 -] ST202,205..MTM..(GT4WD,TRG,TRG4) ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ) |
90119-08630 |
US $2.15 |
||
|
33124C
|
33124C
33124-12030 Pipe, Oil Receiver, No.1(Mtm)[09.1993 -] ST202,205..MTM..(GT4WD,TRG,TRG4) ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ) |
33124-12030 |
US $16.16 |
||
|
33124C
|
33124C
33124-33010 Pipe, Oil Receiver, No.1(Mtm)[09.1993 -] ST200,201,202,203..MTM |
33124-33010 |
US $9.61 |
||
|
33124D
|
33124D
33124-12041 Pipe, Oil Receiver, No.2(Mtm)[09.1993 -] ST202,205..MTM..(GT4WD,TRG,TRG4) |
33124-12041 |
US $16.16 |
||
|
33124H
|
33124H
90119-08648 Bolt(For Oil Receiver Pipe)[09.1993 -] ST202,205..MTM..(GT4WD,TRG,TRG4) ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ) |
90119-08648 |
US $0.87 |
||
| replacement | |||||
|
33124H
|
33124H
90119-08830 Bolt(For Oil Receiver Pipe)[09.1993 -] ST202,205..MTM..(GT4WD,TRG,TRG4) ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ) |
90119-08830 |
US $1.79 |
||
|
33124H
|
33124H
91651-60618 Bolt(For Oil Receiver Pipe)[09.1993 -] ST200,201,202,203..MTM |
91651-60618 |
from US $1.19 |
||
