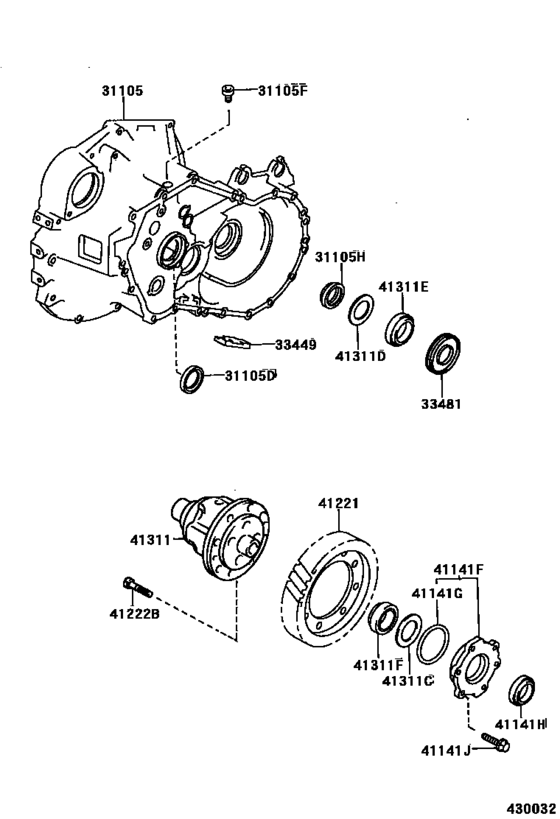

Front Axle Housing & Differential ([08.1995 - 04.1998] S54,ｱﾘ(ﾍﾘｶﾙLSD) (9508-9804)MTM..200GT) Diagram Toyota CORONA EXIV
- Year
- 1995 - 1998
- Sales region
- Japan
- Frame
- ST202
- grade
- 200GT
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- From
- 08.1995
- To
- 04.1998
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105
|
31105
31105-32080 Case Sub-Assy, Transaxle(Mtm)[04.1997 -] ST200,202,203..MTM |
31105-32080 |
US $486.30 |
||
|
31105
|
31105
31105-33030 Case Sub-Assy, Transaxle(Mtm)[09.1993 - 04.1997] ST200,201,202,203..MTM |
31105-33030 |
US $484.85 |
||
| replacement | |||||
|
31105
|
31105
31105-32080 Case Sub-Assy, Transaxle(Mtm)[09.1993 - 04.1997] ST200,201,202,203..MTM |
31105-32080 |
US $486.30 |
||
|
31105D
|
31105D
90311-30006
Seal, Oil, No.1(For Front Transaxle Case)
[09.1993 -] ST20#..MTM |
90311-30006 |
— | ||
| replacement | |||||
|
31105D
|
31105D
90311-30017 Seal, Oil, No.1(For Front Transaxle Case)OIL, NO.1(FOR FRONT TRANSAXLE CASE) [09.1993 -] ST20#..MTM |
90311-30017 |
from US $5.20 |
||
|
31105F
|
31105F
90341-10065 Plug, Straight, No.1[09.1993 -] ST200,201,202,203..MTM |
90341-10065 |
US $3.94 |
||
|
31105H
|
31105H
90311-35033 Seal, Oil, No.2(For Transaxle Case)[07.1995 -] ST200,202,203..MTM |
90311-35033 |
from US $7.17 |
||
|
33449
|
33449
33449-32020 Magnet, Transmission[09.1993 -] ST200,201,202,203..MTM |
33449-32020 |
US $11.65 |
||
|
33481
|
33481
33481-32070 Gear, Speedometer Drive (Mtm)[09.1993 -] ST200,201,202,203..MTM 歯数＝２７ |
33481-32070 |
US $37.71 |
||
|
41141F
|
41141F
41101-32010 Retainer, Rear Differential Side Bearing[09.1993 - 04.1998] ST200,201,202,203..MTM |
41101-32010 |
US $42.66 |
||
| replacements | |||||
|
41141F
|
41141F
41101-32011 Retainer, Front Differential Side Bearing[09.1993 - 04.1998] ST200,201,202,203..MTM |
41101-32011 |
US $38.58 |
||
|
41141F
|
41141F
90311-35048 Oil Seal, Front Drive Shaft, Lh[09.1993 - 04.1998] ST200,201,202,203..MTM |
90311-35048 |
from US $5.20 |
||
|
41141G
|
41141G
90301-63004 Ring, O (For Transfer Extension Housing)[09.1993 -] ST200,201,202,203..MTM |
90301-63004 |
US $4.89 |
||
|
41141H
|
41141H
90311-35033 Seal, Oil, No.2(For Transaxle Case)[07.1995 - 04.1998] ST200,202,203..MTM |
90311-35033 |
from US $7.17 |
||
|
41141J
|
41141J
90105-08061 Bolt(For Rear Differential Side Bearing Retainer)[09.1993 - 04.1998] ST200,201,202,203..MTM ＊８−１．２５ＰＸ２６．５−２３．５ |
90105-08061 |
US $3.06 |
||
| replacement | |||||
|
41141J
|
41141J
91511-C0825 Bolt(For Front Differential Side Bearing Retainer)[09.1993 - 04.1998] ST200,201,202,203..MTM ＊８−１．２５ＰＸ２６．５−２３．５ |
91511-C0825 |
US $2.33 |
||
|
41221
|
41221
41221-32100 Gear, Front Differential Ring[09.1993 - 04.1998] ST202..200GT,TRG |
41221-32100 |
from US $171.81 |
||
|
41222B
|
41222B
90105-11040 Bolt (For Rear Differential Ring Gear Set)[06.1995 - 04.1998] ST200,202,203..MTM |
90105-11040 |
US $2.33 |
||
|
41311
|
41311
41301-20190
Case, Front Differential
[08.1995 - 04.1998] ST202..MTM..200GT ｱﾘ(L.S.D) |
41301-20190 |
— | ||
| replacement | |||||
|
41311
|
41311
41301-20230 Case Sub-Assy, Rear Differential[08.1995 - 04.1998] ST202..MTM..200GT ｱﾘ(L.S.D) |
41301-20230 |
US $1,500.84 |
||
|
41311
|
41311
41301-32060 Case Sub-Assy, Rear Differential[09.1993 - 04.1998] ST200,201,202,203..MTM |
41301-32060 |
US $569.30 |
||
| replacement | |||||
|
41311
|
41311
41301-32061 Case Sub-Assy, Rear Differential[09.1993 - 04.1998] ST200,201,202,203..MTM |
41301-32061 |
US $445.89 |
||
|
41311C
|
41311C
90564-45001 Shim (For Front Differential Case Rear)[09.1993 - 04.1998] ST200,201,202,203..MTM 厚さ＝１．９０，マーク ０１ |
90564-45001 |
US $4.66 |
||
|
41311C
|
41311C
90564-45002 Shim (For Front Differential Case Rear)[09.1993 - 04.1998] ST200,201,202,203..MTM 厚さ＝１．９５，マーク ０２ |
90564-45002 |
US $4.66 |
||
|
41311C
|
41311C
90564-45003 Shim (For Front Differential Case Rear)[09.1993 - 04.1998] ST200,201,202,203..MTM 厚さ＝２．００，マーク ０３ |
90564-45003 |
US $4.66 |
||
|
41311C
|
41311C
90564-45004 Shim (For Front Differential Case Rear)[09.1993 - 04.1998] ST200,201,202,203..MTM 厚さ＝２．０５，マーク ０４ |
90564-45004 |
US $4.66 |
||
|
41311C
|
41311C
90564-45005 Shim (For Front Differential Case Rear)[09.1993 - 04.1998] ST200,201,202,203..MTM 厚さ＝２．１０，マーク ０５ |
90564-45005 |
US $4.66 |
||
|
41311C
|
41311C
90564-45006 Shim (For Front Differential Case Rear)[09.1993 - 04.1998] ST200,201,202,203..MTM 厚さ＝２．１５，マーク ０６ |
90564-45006 |
US $4.66 |
||
|
41311C
|
41311C
90564-45007 Shim (For Front Differential Case Rear)[09.1993 - 04.1998] ST200,201,202,203..MTM 厚さ＝２．２０，マーク ０７ |
90564-45007 |
US $4.66 |
||
|
41311C
|
41311C
90564-45008 Shim (For Front Differential Case Rear)[09.1993 - 04.1998] ST200,201,202,203..MTM 厚さ＝２．２５，マーク ０８ |
90564-45008 |
US $4.66 |
||
|
41311C
|
41311C
90564-45009 Shim (For Front Differential Case Rear)[09.1993 - 04.1998] ST200,201,202,203..MTM 厚さ＝２．３０，マーク ０９ |
90564-45009 |
US $4.66 |
||
|
41311C
|
41311C
90564-45010 Shim (For Front Differential Case Rear)[09.1993 - 04.1998] ST200,201,202,203..MTM 厚さ＝２．３５，マーク １０ |
90564-45010 |
US $4.66 |
||
|
41311C
|
41311C
90564-45011 Shim(For Rear Differential Case)[09.1993 - 04.1998] ST200,201,202,203 厚さ＝２．４０，マーク １１ |
90564-45011 |
US $3.93 |
||
|
41311C
|
41311C
90564-45012 Shim (For Front Differential Case Rear)[09.1993 - 04.1998] ST200,201,202,203..MTM 厚さ＝２．４５，マーク １２ |
90564-45012 |
US $4.66 |
||
|
41311C
|
41311C
90564-45013 Shim (For Front Differential Case Rear)[09.1993 - 04.1998] ST200,201,202,203..MTM 厚さ＝２．５０，マーク １３ |
90564-45013 |
US $4.66 |
||
|
41311C
|
41311C
90564-45014 Shim (For Front Differential Case Rear)[09.1993 - 04.1998] ST200,201,202,203..MTM 厚さ＝２．５５，マーク １４ |
90564-45014 |
US $4.66 |
||
|
41311C
|
41311C
90564-45015 Shim(For Rear Differential Case)[09.1993 - 04.1998] ST200,201,202,203..MTM 厚さ＝２．６０，マーク １５ |
90564-45015 |
US $4.80 |
||
|
41311C
|
41311C
90564-45016 Shim (For Front Differential Case Rear)[09.1993 - 04.1998] ST200,201,202,203..MTM 厚さ＝２．６５，マーク １６ |
90564-45016 |
US $4.66 |
||
|
41311C
|
41311C
90564-45017 Shim (For Front Differential Case Rear)[09.1993 - 04.1998] ST200,201,202,203..MTM 厚さ＝２．７０，マーク １７ |
90564-45017 |
US $4.95 |
||
|
41311C
|
41311C
90564-45018 Shim (For Front Differential Case Rear)[09.1993 - 04.1998] ST200,201,202,203..MTM 厚さ＝２．７５，マーク １８ |
90564-45018 |
US $4.95 |
||
|
41311C
|
41311C
90564-45019 Shim (For Front Differential Case Rear)[09.1993 - 04.1998] ST200,201,202,203..MTM 厚さ＝２．８０，マーク １９ |
90564-45019 |
US $4.95 |
||
|
41311D
|
41311D
90564-45011 Shim(For Rear Differential Case)[09.1993 -] ST200,201,202,203..MTM 厚さ＝２．４０，マーク １１ |
90564-45011 |
US $3.93 |
||
|
41311E
|
41311E
90366-40016 Bearing(For Rear Differential Case)[09.1993 - 04.1998] ST200,201,202,203 |
90366-40016 |
from US $25.33 |
||
|
41311F
|
41311F
90366-40064 Bearing(For Rear Differential Case)[08.1995 - 04.1998] ST200,202,203..MTM |
90366-40064 |
US $34.86 |
||
