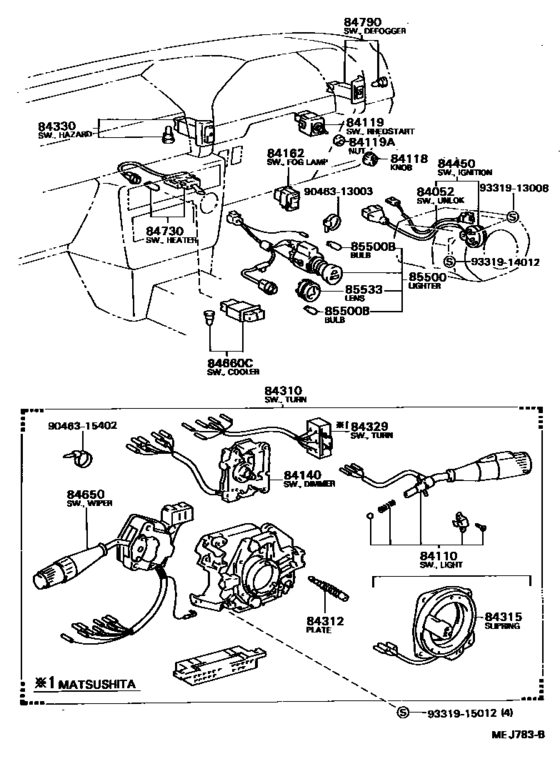

Switch & Relay & Computer ([08.1987 - ] (8708- )) Diagram Toyota CORONA FF COUPE
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- ST162
- ENGINE
- 3SFE
- TRANSMISSION
- VX
- From
- 08.1987
- To
- 08.1989
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84052
|
84052
84052-10020 Switch Assy, Un-Lock Warning[08.1987 - 08.1989] ST162..GT; ST162,163..VX; ST160..EX |
84052-10020 |
US $29.99 |
||
| replacement | |||||
|
84052
|
84052
84052-22030
Switch Assy, Un-Lock Warning
[08.1987 - 08.1989] ST162..GT; ST162,163..VX; ST160..EX |
84052-22030 |
— | ||
|
84110
|
84110
84112-29785 Switch Assy, Light Control, No.1[08.1987 - 08.1989] ST16#..EX,VX 東海理化; ST162..GT GT-R OR GT-R & ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),東海理化 |
84112-29785 |
US $69.89 |
||
|
84110
|
84110
84112-29795
Switch Assy, Light Control, No.1
[08.1987 - 08.1989] ST16#..EX,VX ＭＡＴＳＵＳＨＩＴＡ; ST162..GT GT-R OR GT-R & ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),ＭＡＴＳＵＳＨＩＴＡ |
84112-29795 |
— | ||
|
84118
|
84118
84118-20011 Knob, Light Control Rheostat[08.1987 - 08.1989] ST16#..EX,GT,VX |
84118-20011 |
US $13.80 |
||
|
84119
|
84119
84119-20120 Rheostat, Light Control[08.1987 - 08.1989] ST16#..EX,GT,VX |
84119-20120 |
US $81.54 |
||
|
84119A
|
84119A
90170-09167
Nut, Tunnel Mode Select Switch
[08.1987 - 08.1989] ST16#..EX,GT,VX |
90170-09167 |
— | ||
|
84140
|
84140
84140-20250 Switch Assy, Headlamp Dimmer[08.1987 - 08.1989] ST16#..EX,VX 東海理化; ST162..GT GT-R OR GT-R & ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),東海理化 |
84140-20250 |
US $77.17 |
||
| replacement | |||||
|
84140
|
84140
84140-26070 Switch Assy, Headlamp Dimmer[08.1987 - 08.1989] ST16#..EX,VX 東海理化; ST162..GT GT-R OR GT-R & ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),東海理化 |
84140-26070 |
from US $72.19 |
||
|
84140
|
84140
84140-20260 Switch Assy, Headlamp Dimmer[08.1987 - 08.1989] ST16#..EX,VX ＭＡＴＳＵＳＨＩＴＡ; ST162..GT GT-R OR GT-R & ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),ＭＡＴＳＵＳＨＩＴＡ |
84140-20260 |
US $77.17 |
||
|
84162
|
84162
84160-95400 Switch Assy, Fog Lamp[08.1987 - 08.1989] ST16# |
84160-95400 |
US $51.72 |
||
|
84310
|
84310
84310-2B740 Switch Assy, Turn Signal[08.1987 - 08.1989] ST16#..EX,VX; ST162..GT GT-R |
84310-2B740 |
US $292.66 |
||
|
84310
|
84310
84310-2D290 Switch Assy, Turn Signal[08.1987 - 08.1989] ST162..VX ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ); ST162..GT GT-R & ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
84310-2D290 |
US $292.66 |
||
|
84312
|
84312
84312-12040 Plate, Horn Contact[08.1987 - 08.1989] ST16# 東海理化 |
84312-12040 |
from US $6.51 |
||
|
84312
|
84312
84312-12050 Plate, Horn Contact[08.1987 - 08.1989] ST16# ＭＡＴＳＵＳＨＩＴＡ |
84312-12050 |
US $14.52 |
||
|
84315
|
84315
84315-20040 Slipring, Horn Contact[08.1987 - 08.1989] ST162..GT ＭＡＴＳＵＳＨＩＴＡ; ST162..VX ＭＡＴＳＵＳＨＩＴＡ |
84315-20040 |
US $78.62 |
||
|
84315
|
84315
84315-20070 Slipring, Horn Contact[08.1987 - 08.1989] ST162..GT 東海理化; ST162..VX 東海理化 |
84315-20070 |
US $84.45 |
||
|
84329
|
84329
84329-20030
Switch, Turn Signal
[08.1987 - 08.1989] ST16#..EX,VX; ST162..GT GT-R OR GT-R & ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
84329-20030 |
— | ||
|
84330
|
84330
84332-20180-01 Switch Assy, Hazard Warning Signal[08.1987 - 08.1989] ST16# BLACK,TRIM2# |
84332-20180-01 |
US $69.60 |
||
|
84330
|
84330
84332-20180-04 Switch Assy, Hazard Warning Signal[08.1987 - 08.1989] ST16# DEEP BLUE,TRIM8# |
84332-20180-04 |
US $69.60 |
||
|
84450
|
84450
84450-14060
Switch Assy, Ignition Or Starter
[08.1987 - 08.1989] ST162,163..VX; ST160..EX ｱﾘ(ﾃﾞﾝｼﾞ ﾛﾂｸ); ST162..GT GT-R OR ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
84450-14060 |
— | ||
| replacements | |||||
|
84450
|
84450
84052-22030
Switch Assy, Un-Lock Warning
[08.1987 - 08.1989] ST162,163..VX; ST160..EX ｱﾘ(ﾃﾞﾝｼﾞ ﾛﾂｸ); ST162..GT GT-R OR ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
84052-22030 |
— | ||
|
84450
|
84450
84450-27100
Switch Assy, Ignition Or Starter
[08.1987 - 08.1989] ST162,163..VX; ST160..EX ｱﾘ(ﾃﾞﾝｼﾞ ﾛﾂｸ); ST162..GT GT-R OR ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
84450-27100 |
— | ||
|
84650
|
84650
84652-2B180 Switch Assy, Windshield Wiper[08.1987 - 08.1989] ST16#..EX,VX 東海理化; ST162..GT GT-R,東海理化 |
84652-2B180 |
US $208.21 |
||
|
84650
|
84650
84652-2B510
Switch Assy, Windshield Wiper
[08.1987 - 08.1989] ST16#..EX,VX ＭＡＴＳＵＳＨＩＴＡ; ST162..GT GT-R,ＭＡＴＳＵＳＨＩＴＡ |
84652-2B510 |
— | ||
|
84650
|
84650
84652-2B660 Switch Assy, Windshield Wiper[08.1987 - 08.1989] ST162..VX ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),東海理化; ST162..GT GT-R & ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),東海理化 |
84652-2B660 |
US $208.21 |
||
|
84650
|
84650
84652-2B670
Switch Assy, Windshield Wiper
[08.1987 - 08.1989] ST162..VX ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),ＭＡＴＳＵＳＨＩＴＡ; ST162..GT GT-R & ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ),ＭＡＴＳＵＳＨＩＴＡ |
84652-2B670 |
— | ||
|
84790
|
84790
84790-20201-01 Switch Assy, Rear Window Defogger[08.1987 - 08.1989] ST16# BLACK,TRIM2# |
84790-20201-01 |
US $104.83 |
||
|
84790
|
84790
84790-20201-04 Switch Assy, Rear Window Defogger[08.1987 - 08.1989] ST16# BLUE,TRIM8# |
84790-20201-04 |
US $104.83 |
||
|
85500
|
85500
85500-20200 Lighter Assy, Cigarette[08.1987 - 08.1989] ST16# |
85500-20200 |
US $81.54 |
||
|
85500B
|
85500B
90981-11014 Bulb, Position Indicator Lamp[08.1987 - 08.1989] ST16# １４Ｖ １．４Ｗ |
90981-11014 |
from US $1.92 |
||
|
85533
|
85533
85533-20010
Lens, Cigarette Lighter Indicator
[08.1987 - 08.1989] ST16# |
85533-20010 |
— | ||
|
9046313003
|
9046313003
90463-13003 Clamp, Hood Lock Control Wire |
90463-13003 |
US $2.88 |
||
|
9046315402
|
9046315402
90463-15402 New Genuine Part |
90463-15402 |
US $3.06 |
||
|
9331913008
|
9331913008
93319-13008 New Genuine Part |
93319-13008 |
US $0.73 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
