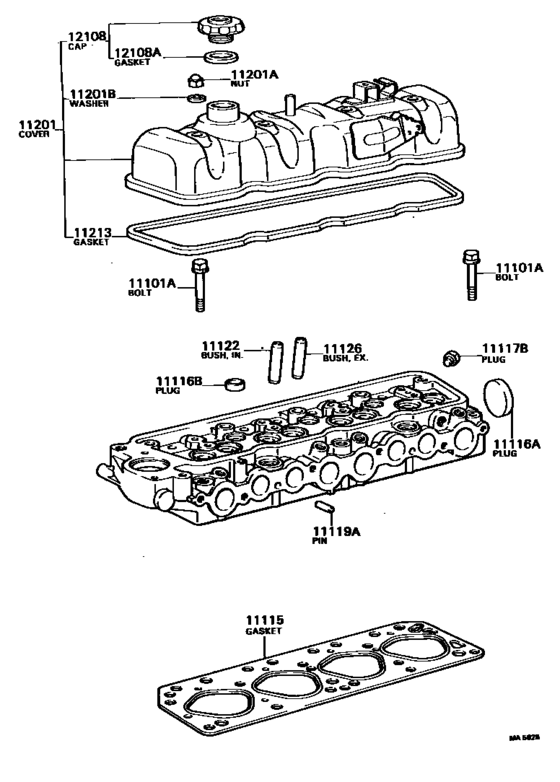

Cylinder Head ([06.1982 - 12.1983] (8206-8312)12RM) Diagram Toyota CORONA FR
- Year
- 1982 - 1983
- Sales region
- Europe
- Frame
- RT140
- grade
- DLX
- body
- SED
- ENGINE
- 12RM
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- From
- 01.1982
- To
- 12.1983
- Gear Shift Type
- 4F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101A
|
11101A
90910-02065
Bolt(For Cylinder Head Set)
[06.1982 - 12.1983] 12RM..RT140 *12-1.25PX84.5-24 |
90910-02065 |
— | ||
|
11101A
|
11101A
90910-02066
Bolt(For Cylinder Head Set)
[06.1982 - 12.1983] 12RM..RT140 *12-1.25PX98-24 |
90910-02066 |
— | ||
|
11115
|
11115
11115-31023 Gasket, Cylinder Head[06.1982 - 12.1983] 12RM..RT140 |
11115-31023 |
US $110.66 |
||
| replacement | |||||
|
11115
|
11115
11115-31024 Gasket, Cylinder Head[06.1982 - 12.1983] 12RM..RT140 |
11115-31024 |
US $116.48 |
||
|
11116A
|
11116A
96411-45000 Plug, Tight, No.1(For Cam Housing)[06.1982 - 12.1983] 12RM..RT140 OD=50 |
96411-45000 |
from US $3.86 |
||
|
11116B
|
11116B
96411-42200 Plug, Tight, No.2[06.1982 - 12.1983] 12RM..RT140 OD=22 |
96411-42200 |
US $4.27 |
||
|
11117B
|
11117B
90345-51006 Plug, W/head Taper Screw, No.2[10.1982 - 12.1983] 12RM..RT140 |
90345-51006 |
US $0.96 |
||
|
11117B
|
11117B
90345-51025 Plug, W/head Taper Screw, No.2[06.1982 - 10.1982] 12RM..RT140 |
90345-51025 |
US $3.36 |
||
|
11119A
|
11119A
90250-08054 Pin, Straight[06.1982 - 12.1983] 12RM..RT140 L=23,OD=8,L=23,OD=8 |
90250-08054 |
from US $1.03 |
||
|
11122
|
11122
11122-23010 Bush, Intake Valve Guide[06.1982 - 12.1983] 12RM..RT140 STD |
11122-23010 |
US $13.25 |
||
|
11122
|
11122
11123-23010 Bush, Intake Valve Guide[06.1982 - 12.1983] 12RM..RT140 O/S 0.05 |
11123-23010 |
US $13.25 |
||
|
11126
|
11126
11122-23010 Bush, Intake Valve Guide[06.1982 - 12.1983] 12RM..RT140 STD |
11122-23010 |
US $13.25 |
||
|
11126
|
11126
11123-23010 Bush, Intake Valve Guide[06.1982 - 12.1983] 12RM..RT140 O/S 0.05 |
11123-23010 |
US $13.25 |
||
|
11201
|
11201
11201-39206
Cover Sub-Assy, Cylinder Head
[06.1982 - 12.1983] 12RM..RT140 |
11201-39206 |
— | ||
|
11201A
|
11201A
90176-06014 Nut, Cap(For Cylinder Head Cover)[06.1982 - 12.1983] 12RM..RT140 |
90176-06014 |
US $3.64 |
||
|
11201B
|
11201B
90210-10003 Washer, Seal(For Cylinder Head Cover)[06.1982 - 12.1983] 12RM..RT140 |
90210-10003 |
US $3.49 |
||
|
11213
|
11213
11213-31020 Gasket, Cylinder Head Cover[06.1982 - 12.1983] 12RM..RT140 |
11213-31020 |
US $15.68 |
||
|
12108
|
12108
12180-13010 Cap Sub-Assy, Oil Filler[01.1982 - 01.1983] 1C..CT140; 12RM..RT140; 2T,3T..TT14# |
12180-13010 |
from US $16.11 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[01.1982 - 07.1999] 1C,2C..CT14#; 2S#..ST141; 2T,3T..TT14#; 12RM,22REC..RT14# |
90430-37140 |
from US $1.25 |
||
