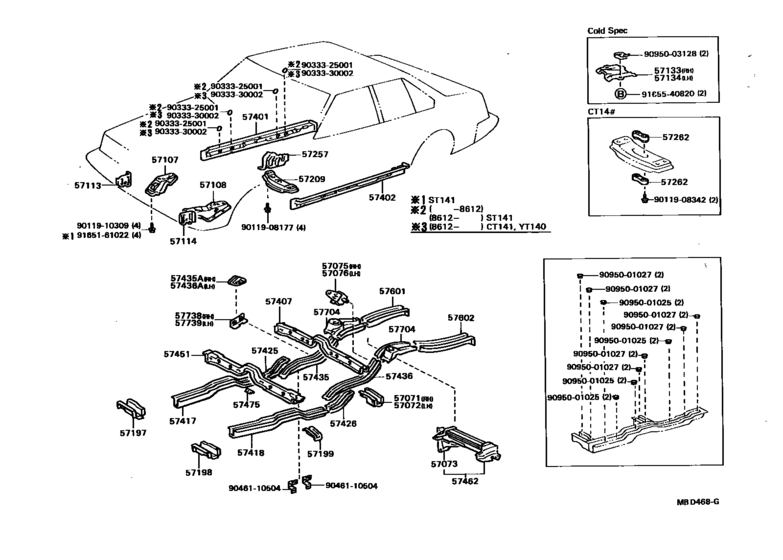

Floor Side Member ([12.1982 - 08.1985] (8612- )YT140 (8201-8212)SED..GEN,PHL ; (8212-8508)TT14#..SED ; (8212-8508)CT140,RT14#,ST141..CS, CSI,CSX,CXI,DLX,S ,TAX ; (8503- )CT141,ST141..SED) Diagram Toyota CORONA FR
- Year
- 1982 - 1983
- Sales region
- Europe
- Frame
- RT140
- grade
- DLX
- body
- SED
- ENGINE
- 12RM
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- From
- 01.1982
- To
- 12.1983
- Gear Shift Type
- 4F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57071
|
57071
57071-14020
Box Sub-Assy, Torque, Rear Rh
[01.1982 - 08.1985] CT140,RT140,TT14#..SED |
57071-14020 |
— | ||
|
57072
|
57072
57072-14020
Box Sub-Assy, Torque, Rear Lh
[01.1982 - 08.1985] CT140,RT140,TT14#..SED |
57072-14020 |
— | ||
|
57075
|
57075
57075-14030 Bracket Sub-Assy, Upper Control Link, Rh[01.1982 - 08.1985] CT140,RT140,TT14#..SED |
57075-14030 |
US $31.89 |
||
|
57076
|
57076
57076-14030 Bracket Sub-Assy, Upper Control Link, Lh[01.1982 - 08.1985] CT140,RT140,TT14#..SED |
57076-14030 |
US $31.89 |
||
|
57107
|
57107
57107-14080 Bracket Sub-Assy, Strut Bar, Rh[01.1982 - 12.1986] CT14#,RT14#,ST141,TT14# |
57107-14080 |
US $71.20 |
||
|
57108
|
57108
57108-14080 Bracket Sub-Assy, Strut Bar, Lh[01.1982 - 12.1986] CT14#,RT14#,ST141,TT14# |
57108-14080 |
US $71.20 |
||
|
57113
|
57113
57113-14070 Extension, Front Side Member, Rh[01.1982 - 12.1986] CT14#,RT14#,ST141,TT14# |
57113-14070 |
US $25.19 |
||
|
57114
|
57114
57114-14030 Extension, Front Side Member, Lh[01.1982 - 12.1986] CT14#,RT14#,ST141,TT14# |
57114-14030 |
US $25.19 |
||
|
57197
|
57197
57197-14010
Box, Torque, Front Rh
[01.1982 - 12.1986] CT14#,RT14#,ST141,TT14# |
57197-14010 |
— | ||
|
57198
|
57198
57198-14010
Box, Torque, Front Lh
[01.1982 - 12.1986] CT14#,RT14#,ST141,TT14# |
57198-14010 |
— | ||
|
57199
|
57199
58173-14010
Box, Torque, Front, No.2
[01.1982 - 12.1986] CT140,RT14#,ST141,TT14# |
58173-14010 |
— | ||
|
57209
|
57209
57209-20160 Member Sub-Assy, Engine Rear Support[06.1982 - 12.1983] RT140 |
57209-20160 |
US $67.12 |
||
|
57257
|
57257
57257-14050 Bracket, Engine Rear Support Member[01.1982 - 08.1985] CT140,RT140,TT14# RH |
57257-14050 |
US $24.17 |
||
|
57257
|
57257
57258-24010 Bracket, Engine Rear Support Member[01.1982 - 08.1985] CT140,RT140,TT14# LH |
57258-24010 |
US $24.17 |
||
|
57401
|
57401
57401-14190
Member Sub-Assy, Main Floor Side, Rh
[01.1982 - 05.1985] CT140,RT14#,TT14# |
57401-14190 |
— | ||
|
57402
|
57402
57402-14190
Member Sub-Assy, Main Floor Side, Lh
[01.1982 - 05.1985] CT140,RT14#,TT14# |
57402-14190 |
— | ||
|
57407
|
57407
57407-14010 Cross Member Sub-Assy, Center Floor, No.1[01.1982 - 12.1986] CT140,RT140,TT14#..SED |
57407-14010 |
US $119.39 |
||
|
57417
|
57417
57417-24010
Reinforcement, Front Floor Under, Rh
[01.1982 - 10.1983] CT140,RT140,ST141,TT14# |
57417-24010 |
— | ||
|
57418
|
57418
57418-24010
Reinforcement, Front Floor Under, Lh
[01.1982 - 12.1986] CT14#,RT14#,ST141,TT14# |
57418-24010 |
— | ||
|
57425
|
57425
57425-24010 Reinforcement, Front Floor, No.2 Rh[01.1982 - 08.1985] CT140,RT140,TT14#..SED |
57425-24010 |
US $12.67 |
||
|
57426
|
57426
57426-24010
Reinforcement, Front Floor, No.2 Lh
[01.1982 - 08.1985] CT140,RT140,TT14#..SED |
57426-24010 |
— | ||
|
57435
|
57435
57441-14010 Member, Center Floor Side, Rh[06.1982 - 12.1983] RT140..DLX |
57441-14010 |
US $123.76 |
||
|
57435A
|
57435A
58282-14010 Base, Belt Anchor To Floor Pan, No.3 Rh[01.1982 - 08.1985] CT140,RT140,TT14#..SED |
58282-14010 |
US $25.48 |
||
|
57436
|
57436
57441-14010 Member, Center Floor Side, Rh[06.1982 - 12.1983] RT140..DLX |
57441-14010 |
US $123.76 |
||
|
57436A
|
57436A
58283-14010 Base, Belt Anchor To Floor Pan, No.3 Lh[01.1982 - 08.1985] CT140,RT140,TT14#..SED |
58283-14010 |
US $25.48 |
||
|
57451
|
57451
57451-24010 Member, Front Floor Cross[01.1982 - 12.1986] CT14#,RT14#,ST141,TT14# |
57451-24010 |
US $80.08 |
||
|
57462
|
57462
57405-14080 Member, Center Floor Cross, No.2[01.1982 - 12.1982] CT140,RT140,TT14#..SED..(GEN,PHL) |
57405-14080 |
US $196.56 |
||
|
57475
|
57475
57475-24010 Plate, Front Floor Crossmember[01.1982 - 12.1986] CT14#,RT14#,ST141,TT14# |
57475-24010 |
US $8.74 |
||
|
57601
|
57601
57601-14100 Member Sub-Assy, Rear Floor Side, Rh[01.1982 - 12.1982] CT140,RT140,TT14#..SED..(GEN,PHL) |
57601-14100 |
US $158.70 |
||
| replacement | |||||
|
57601
|
57601
57601-14120
Member Sub-Assy, Rear Floor Side, Rh
[01.1982 - 12.1982] CT140,RT140,TT14#..SED..(GEN,PHL) |
57601-14120 |
— | ||
|
57602
|
57602
57602-14090 Member Sub-Assy, Rear Floor Side, Lh[01.1982 - 12.1982] CT140,RT140,TT14#..SED..(GEN,PHL) |
57602-14090 |
US $168.90 |
||
| replacement | |||||
|
57602
|
57602
57602-14110
Member Sub-Assy, Rear Floor Side, Lh
[01.1982 - 12.1982] CT140,RT140,TT14#..SED..(GEN,PHL) |
57602-14110 |
— | ||
|
57704
|
57704
57701-14010 Support Sub-Assy, Rear Suspension Spring[01.1982 - 08.1985] CT140,RT140,TT14#..SED RH |
57701-14010 |
US $219.86 |
||
|
57704
|
57704
57704-14010 Support Sub-Assy, Rear Suspension Spring[01.1982 - 08.1985] CT140,RT140,TT14#..SED LH |
57704-14010 |
US $219.86 |
||
|
9011908177
|
9011908177
90119-08177
New Genuine Part
|
90119-08177 |
— | ||
| replacement | |||||
|
9011908177
|
9011908177
90119-08A87 BOLT W-WASHER |
90119-08A87 |
from US $0.96 |
||
|
9011908342
|
9011908342
90119-08342 New Genuine Part |
90119-08342 |
US $3.20 |
||
|
9011910309
|
9011910309
90119-10309
Bolt, Winch R0Ller Bracket
|
90119-10309 |
— | ||
| replacement | |||||
|
9011910309
|
9011910309
91651-B1025 Bolt, Winch R0Ller Bracket |
91651-B1025 |
from US $1.46 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.41 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
US $1.12 |
||
|
9046110504
|
9046110504
90461-10504 New Genuine Part |
90461-10504 |
US $9.17 |
||
|
9095001025
|
9095001025
90950-01025 Plug, Hole(For Front Fender Apron) |
90950-01025 |
US $3.84 |
||
|
9095001027
|
9095001027
90950-01027 Plug, Hole, No.3(For Dash Panel) |
90950-01027 |
US $3.20 |
||
|
9095003128
|
9095003128
90950-03128 New Genuine Part |
90950-03128 |
US $1.92 |
||
|
9165161022
|
9165161022
91651-61022 Bolt |
91651-61022 |
US $0.79 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.76 |
||
