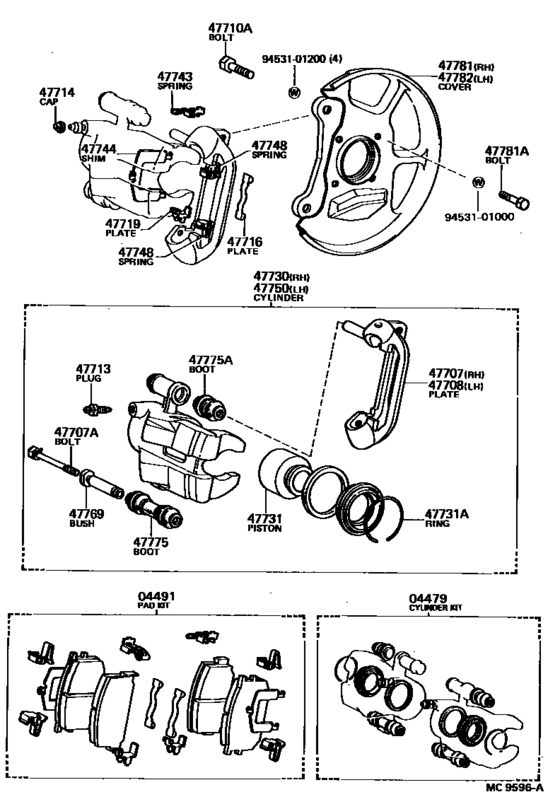

Front Disc Brake Caliper & Dust Cover ([01.1982 - 08.1985] (8201-8508)DLX,GL,STD ; (8508-8612)ST141..GEN) Diagram Toyota CORONA FR
- Year
- 1982 - 1983
- Sales region
- Europe
- Frame
- RT140
- grade
- DLX
- body
- SED
- ENGINE
- 12RM
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- From
- 01.1982
- To
- 12.1983
- Gear Shift Type
- 4F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04479
|
04479
04479-14060 Cylinder Kit, Disc Brake, Front[01.1982 - 10.1983] CT140,RT140,TT14#..DLX,GL,STD |
04479-14060 |
US $30.70 |
||
|
04491
|
04491
04491-14150 Pad Kit, Disc Brake, FrontDISC BRAKE, FRONT [01.1982 - 12.1986] CT140,RT140,ST141,TT14#..DLX,GL,STD |
04491-14150 |
US $101.92 |
||
| replacement | |||||
|
04491
|
04491
04465-12370 Pad Kit, Disc Brake, FrontDISC BRAKE, FRONT [01.1982 - 12.1986] CT140,RT140,ST141,TT14#..DLX,GL,STD |
04465-12370 |
US $143.56 |
||
|
47707
|
47707
47707-14010 Plate Sub-Assy, Disc Brake Torque, Front Rh[01.1982 - 12.1986] CT140,RT140,ST141,TT14#..DLX,GL,STD |
47707-14010 |
US $87.36 |
||
|
47707A
|
47707A
90119-08199
Bolt, Hexagon(For Front Disc Brake Torque Plate)
[01.1982 - 09.1983] CT140,RT140,TT14#..DLX,GL,STD SLIDE BUSH L=51.5 |
90119-08199 |
— | ||
|
47707A
|
47707A
90119-08431 Bolt, Hexagon(For Front Disc Brake Torque Plate)[09.1983 - 12.1986] CT140,RT140,ST141,TT14#..DLX,GL,STD SLIDE BUSH L=50 |
90119-08431 |
US $3.52 |
||
|
47708
|
47708
47708-14010 Plate Sub-Assy, Disc Brake Torque, Front Lh[01.1982 - 12.1986] CT140,RT140,ST141,TT14#..DLX,GL,STD |
47708-14010 |
US $87.36 |
||
|
47710A
|
47710A
90101-12064 Bolt, Hexagon(For Front Disc Brake Caliper)[01.1982 - 12.1986] CT140,RT140,ST141,TT14#..DLX,GL,STD |
90101-12064 |
US $4.32 |
||
|
47713
|
47713
47547-20010 Plug, Bleeder(For Release Cylinder)[01.1982 - 07.1999] CT14#,RT140,ST141,TT14#,YT140..DLX,GL,STD |
47547-20010 |
from US $3.20 |
||
|
47714
|
47714
31478-30010 Bleeder Plug Cap[01.1982 - 07.1999] CT140,RT140,ST141,TT14#..DLX,GL,STD |
31478-30010 |
from US $1.66 |
||
|
47716
|
47716
47716-14080 Plate, Pad Support, No.1(For Front Disc Brake)[01.1982 - 12.1986] CT140,RT140,ST141,TT14#..DLX,GL,STD |
47716-14080 |
US $5.12 |
||
|
47719
|
47719
47736-12010
Plate, Front Disc Brake Pad Guide
[01.1982 - 12.1986] CT140,RT140,ST141,TT14#..DLX,GL,STD |
47736-12010 |
— | ||
|
47730
|
47730
47730-12250 Cylinder Assy, Front Disc Brake, Rh[09.1983 - 10.1983] CT140,RT140,TT14#..DLX,GL,STD |
47730-12250 |
US $595.50 |
||
|
47730
|
47730
47730-14050 Cylinder Assy, Front Disc Brake, Rh[01.1982 - 09.1983] CT140,RT140,TT14#..DLX,GL,STD |
47730-14050 |
US $594.05 |
||
| replacement | |||||
|
47730
|
47730
47730-12250 Cylinder Assy, Front Disc Brake, Rh[01.1982 - 09.1983] CT140,RT140,TT14#..DLX,GL,STD |
47730-12250 |
US $595.50 |
||
|
47731
|
47731
47731-14070 Piston, Front Disc Brake[01.1982 - 12.1986] CT140,RT140,ST141,TT14#..DLX,GL,STD |
47731-14070 |
US $42.56 |
||
|
47731A
|
47731A
90522-60004 Ring, Set(For Front Disc Brake Piston)[01.1982 - 12.1986] CT140,RT140,ST141,TT14#..DLX,GL,STD |
90522-60004 |
US $2.33 |
||
|
47743
|
47743
47743-12010
Spring, Anti-Rattle, No.2(For Front Disc Brake)
[01.1982 - 12.1986] CT140,RT140,ST141,TT14#..DLX,GL,STD LH |
47743-12010 |
— | ||
|
47743
|
47743
47748-12050
Spring, Anti-Rattle, No.2(For Front Disc Brake)
[01.1982 - 12.1986] CT140,RT140,ST141,TT14#..DLX,GL,STD RH |
47748-12050 |
— | ||
|
47744
|
47744
47744-14050
Shim, Anti-Squeal, No.1(For Front Disc Brake)
[01.1982 - 12.1986] CT140,RT140,ST141,TT14#..DLX,GL,STD |
47744-14050 |
— | ||
|
47748
|
47748
47743-14040 Spring, Anti-Rattle, No.2(For Front Disc Brake)[01.1982 - 12.1986] CT140,RT140,ST141,TT14#..DLX,GL,STD LWR |
47743-14040 |
from US $5.12 |
||
|
47748
|
47748
47748-14050 Spring, Anti-Rattle, No.2(For Rear Disc Brake)[01.1982 - 12.1986] CT140,RT140,ST141,TT14#..DLX,GL,STD UPR |
47748-14050 |
from US $5.56 |
||
|
47750
|
47750
47750-12250 Cylinder Assy, Disc Brake, Lh[09.1983 - 10.1983] CT140,RT140,TT14#..DLX,GL,STD |
47750-12250 |
US $595.50 |
||
|
47750
|
47750
47750-14130 Cylinder Assy, Disc Brake, Lh[01.1982 - 09.1983] CT140,RT140,TT14#..DLX,GL,STD |
47750-14130 |
US $594.05 |
||
| replacement | |||||
|
47750
|
47750
47750-12250 Cylinder Assy, Disc Brake, Lh[01.1982 - 09.1983] CT140,RT140,TT14#..DLX,GL,STD |
47750-12250 |
US $595.50 |
||
|
47769
|
47769
47769-14010
Bush, Cylinder Slide, No.1(For Front Disc Brake)
[01.1982 - 09.1983] CT140,RT140,TT14#..DLX,GL,STD L=51.5 |
47769-14010 |
— | ||
| replacements | |||||
|
47769
|
47769
47769-28H00
Bush, Cylinder Slide, No.1(for Front Disc Brake)
[01.1982 - 09.1983] CT140,RT140,TT14#..DLX,GL,STD L=51.5 |
47769-28H00 |
— | ||
|
47769
|
47769
47769-28H01
Bush, Cylinder Slide, No.1(for Front Disc Brake)
[01.1982 - 09.1983] CT140,RT140,TT14#..DLX,GL,STD L=51.5 |
47769-28H01 |
— | ||
|
47769
|
47769
47769-28010 Bush, Cylinder Slide, No.1(For Front Disc Brake)[09.1983 - 12.1986] CT140,RT140,ST141,TT14#..DLX,GL,STD L=50 |
47769-28010 |
from US $7.14 |
||
|
47775
|
47775
47775-14010 Boot, Bush Dust(For Front Disc Brake)[01.1982 - 10.1983] CT140,RT140,TT14#..DLX,GL,STD |
47775-14010 |
US $12.48 |
||
|
47775A
|
47775A
47776-14010 Boot, Pin[01.1982 - 12.1986] CT140,RT140,ST141,TT14#..DLX,GL,STD |
47776-14010 |
US $10.72 |
||
|
47781
|
47781
47703-14080 Cover, Disc Brake Dust, Front Rh[01.1982 - 12.1986] CT140,RT140,ST141,TT14#..DLX,GL,STD |
47703-14080 |
US $74.26 |
||
|
47781A
|
47781A
90101-10062 Bolt, Hexagon(For Front Disc Brake Caliper)[01.1982 - 12.1986] CT140,RT140,ST141,TT14#..DLX,GL,STD |
90101-10062 |
US $1.18 |
||
|
47782
|
47782
47704-14080 Cover, Disc Brake Dust, Front Lh[01.1982 - 12.1986] CT140,RT140,ST141,TT14#..DLX,GL,STD |
47704-14080 |
US $70.47 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.44 |
||
|
9453101200
|
9453101200
94531-01200 WASHER |
94531-01200 |
from US $0.80 |
||
