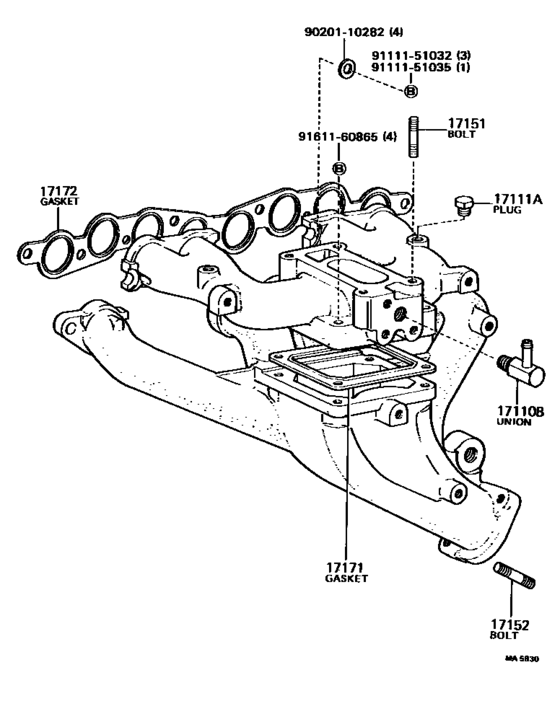

Manifold ([06.1982 - 12.1983] (8206-8312)12RM) Diagram Toyota CORONA FR
- Year
- 1982 - 1983
- Sales region
- Europe
- Frame
- RT140
- grade
- DLX
- body
- SED
- ENGINE
- 12RM
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- From
- 01.1982
- To
- 12.1983
- Gear Shift Type
- 4F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17110B
|
17110B
90407-09002 Union(For Ventilation Hose To Manifold)[06.1982 - 12.1983] 12RM..RT140 |
90407-09002 |
US $8.01 |
||
|
17111A
|
17111A
90345-51025 Plug, W/head Taper Screw, No.2[06.1982 - 12.1983] 12RM..RT140 |
90345-51025 |
US $3.36 |
||
|
17151
|
17151
90116-08320
Bolt, Stud(For Manifold To Carburetor)
[06.1982 - 12.1983] 12RM..RT140 L=39,S=13&13 |
90116-08320 |
— | ||
|
17152
|
17152
90116-10042 Bolt, Stud(For Manifold To Exhaust Pipe)[06.1982 - 12.1983] 12RM..RT140 L=37,S=20&13 |
90116-10042 |
US $4.32 |
||
|
17171
|
17171
17171-44010
Gasket, Intake To Exhaust Manifold
[06.1982 - 12.1983] 12RM..RT140 |
17171-44010 |
— | ||
| replacement | |||||
|
17171
|
17171
17171-44011 Gasket, Intake To Exhaust Manifold[06.1982 - 12.1983] 12RM..RT140 |
17171-44011 |
US $9.03 |
||
|
17172
|
17172
17172-31020 Gasket, Manifold To Cylinder HeadMANIFOLD TO CYLINDER HEAD [06.1982 - 12.1983] 12RM..RT140 |
17172-31020 |
US $12.52 |
||
|
9020110282
|
9020110282
90201-10282 Gasket(For Vacuum Pump Union) |
90201-10282 |
US $1.49 |
||
|
9111151032
|
9111151032
91111-51032
Pin Or Bolt(For Steering Worm Yoke)
|
91111-51032 |
— | ||
| replacement | |||||
|
9111151032
|
9111151032
91112-61032
Pin Or Bolt(For Steering Worm Yoke)
|
91112-61032 |
— | ||
|
9111151035
|
9111151035
91111-51035
Bolt Or Stud Bolt(For Brake Master Cylinder Setting)
|
91111-51035 |
— | ||
|
9161160865
|
9161160865
91611-60865 Bolt(For Rocker Support Set) |
91611-60865 |
US $1.92 |
||
