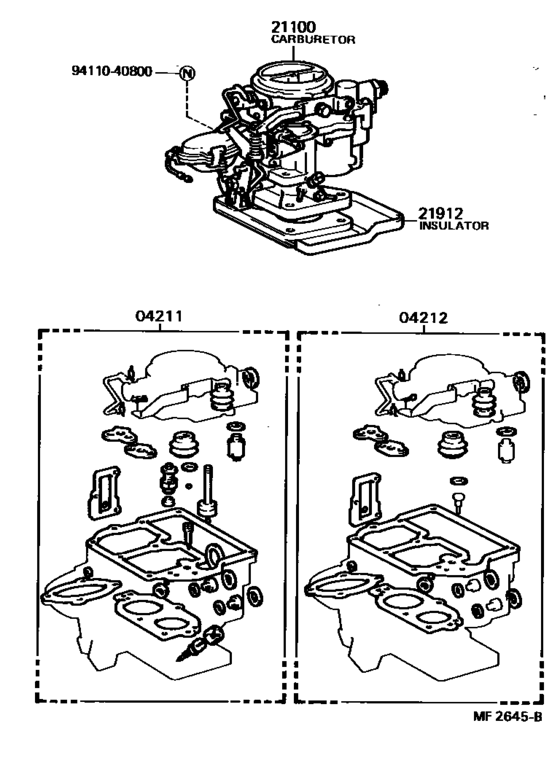

Carburetor Assembly ([06.1982 - 12.1983] (8206-8312)12RM) Diagram Toyota CORONA FR
- Year
- 1982 - 1983
- Sales region
- General
- Frame
- RT140
- grade
- DLX
- body
- SED
- ENGINE
- 12RM
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- From
- 01.1982
- To
- 12.1983
- Gear Shift Type
- 4F
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04211
|
04211
04211-31350 Carburetor Kit[06.1982 - 12.1983] 12RM..RT140 |
04211-31350 |
US $117.94 |
||
|
04212
|
04212
04212-28012
Gasket Kit, Carburetor
[06.1982 - 12.1983] 12RM..RT140 |
04212-28012 |
— | ||
|
21100
|
21100
21100-31532
Carburetor Assy
[06.1982 - 12.1983] 12RM..RT140 |
21100-31532 |
— | ||
|
21912
|
21912
21912-31080
Insulator, Carburetor Heat
[06.1982 - 12.1983] 12RM..RT140 |
21912-31080 |
— | ||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.90 |
||
