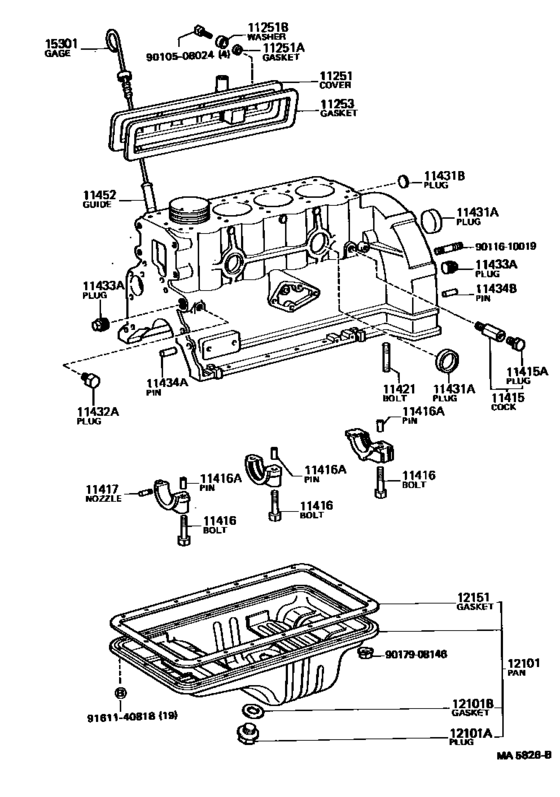

Cylinder Block ([06.1982 - 12.1983] (8206-8312)12RM) Diagram Toyota CORONA FR
- Year
- 1982 - 1983
- Sales region
- General
- Frame
- RT140
- grade
- DLX
- body
- SED
- ENGINE
- 12RM
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- From
- 01.1982
- To
- 12.1983
- Gear Shift Type
- 4F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11251
|
11251
11203-31011
Cover, Valve Push Rod
[06.1982 - 12.1983] 12RM..RT140 |
11203-31011 |
— | ||
|
11251A
|
11251A
90430-07002
Gasket(For Valve Push Rod Cover Bolt)
[06.1982 - 12.1983] 12RM..RT140 |
90430-07002 |
— | ||
|
11251B
|
11251B
90210-08006 Washer, Seal(For Valve Push Rod Cover Bolt)[06.1982 - 12.1983] 12RM..RT140 |
90210-08006 |
US $2.48 |
||
|
11253
|
11253
11253-31011
Gasket, Valve Push Rod Cover
[06.1982 - 12.1983] 12RM..RT140 |
11253-31011 |
— | ||
|
11415
|
11415
96431-03833
Cock Sub-Assy, Water Drain(For Cylinder Block)
[01.1982 - 08.1985] 12RM..RT140; 2T,3T..TT14# |
96431-03833 |
— | ||
| replacement | |||||
|
11415
|
11415
96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)[01.1982 - 08.1985] 12RM..RT140; 2T,3T..TT14# |
96431-53828 |
US $9.96 |
||
|
11415A
|
11415A
96431-23814 Plug, Water Drain Cock(For Cylinder Block)[01.1982 - 08.1985] 12RM..RT140; 2T,3T..TT14# |
96431-23814 |
from US $7.29 |
||
|
11416
|
11416
90910-02064 Bolt(For Crankshaft Bearing Cap Set)[06.1982 - 12.1983] 12RM..RT140 *12-1.25PX62-21 |
90910-02064 |
US $4.22 |
||
| replacement | |||||
|
11416
|
11416
90910-02032 Bolt(For Crankshaft Bearing Cap Set)[06.1982 - 12.1983] 12RM..RT140 *12-1.25PX62-21 |
90910-02032 |
US $4.89 |
||
|
11416A
|
11416A
90253-15005 Pin, Ring(For Crankshaft Bearing Cap Set)[06.1982 - 12.1983] 12RM..RT140 |
90253-15005 |
US $3.68 |
||
|
11417
|
11417
90915-01002 Nozzle, Oil[06.1982 - 12.1983] 12RM..RT140 |
90915-01002 |
US $4.51 |
||
|
11421
|
11421
90116-08229 Bolt, Stud(For Oil Pan)[06.1982 - 12.1983] 12RM..RT140 L=27,S=9&14 |
90116-08229 |
US $2.48 |
||
|
11431A
|
11431A
96411-45000 Plug, Tight, No.1(For Cam Housing)[01.1982 - 08.1985] 12RM..RT140 OD=50; 2T,3T..TT14# OD=50 |
96411-45000 |
from US $3.86 |
||
|
11431B
|
11431B
96411-43000 Plug, Tight, No.1[01.1982 - 12.1983] 1C..CT140 OD=30; 12RM..RT140 OD=30 |
96411-43000 |
from US $3.84 |
||
|
11432A
|
11432A
90345-51006 Plug, W/head Taper Screw, No.2[10.1982 - 12.1983] 12RM..RT140 |
90345-51006 |
US $0.96 |
||
|
11432A
|
11432A
90345-51025 Plug, W/head Taper Screw, No.2[06.1982 - 10.1982] 12RM..RT140 |
90345-51025 |
US $3.36 |
||
|
11433A
|
11433A
90344-53011 Plug, W/head Taper Screw, No.1[06.1982 - 12.1983] 12RM..RT140 |
90344-53011 |
from US $3.84 |
||
|
11434A
|
11434A
90250-10192 Pin, Straight(For Timing Gear Cover Set)[06.1982 - 12.1983] 12RM..RT140 L=22,OD=10,L=22,OD=10 |
90250-10192 |
from US $1.05 |
||
|
11434B
|
11434B
90250-10192 Pin, Straight(For Timing Gear Cover Set)[06.1982 - 12.1983] 12RM..RT140 L=22,OD=10,L=22,OD=10 |
90250-10192 |
from US $1.05 |
||
|
11452
|
11452
11452-31020 Guide, Oil Level Gage[06.1982 - 12.1983] 12RM..RT140 |
11452-31020 |
US $12.23 |
||
|
12101
|
12101
12101-39255
Pan Sub-Assy, Oil
[06.1982 - 12.1983] 12RM..RT140 |
12101-39255 |
— | ||
| replacement | |||||
|
12101
|
12101
12101-39256
Pan Sub-Assy, Oil
[06.1982 - 12.1983] 12RM..RT140 |
12101-39256 |
— | ||
|
12101A
|
12101A
90341-18089
Plug(For Oil Pan Drain)
[01.1982 - 07.1999] 1C,2C..CT14#; 12RM..RT140; 2S#..ST141; 2T,3T..TT14# |
90341-18089 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90033-41020 Plug(For Oil Pan Drain)[01.1982 - 07.1999] 1C,2C..CT14#; 12RM..RT140; 2S#..ST141; 2T,3T..TT14# |
90033-41020 |
from US $2.48 |
||
|
12101B
|
12101B
90430-18244
Gasket(For Oil Pan Drain Plug)
[01.1982 - 08.1986] 12RM..RT140; 2S#..ST141; 2T,3T..TT14#; 1C,2C..CT14# |
90430-18244 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-18023 Gasket(For Oil Pan)[01.1982 - 08.1986] 12RM..RT140; 2S#..ST141; 2T,3T..TT14#; 1C,2C..CT14# |
90430-18023 |
from US $1.07 |
||
|
12151
|
12151
12151-30010
Gasket, Oil Pan
[06.1982 - 12.1983] 12RM..RT140 |
12151-30010 |
— | ||
|
15301
|
15301
15301-31050 Gage Sub-Assy, Oil Level[06.1982 - 12.1983] 12RM..RT140 |
15301-31050 |
US $12.23 |
||
|
9010508024
|
9010508024
90105-08024 New Genuine Part |
90105-08024 |
US $1.75 |
||
|
9011610019
|
9011610019
90116-10019 Bolt, Stud(For Manifold To Exhaust Pipe) |
90116-10019 |
US $2.48 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9161140818
|
9161140818
91611-40818
Bolt(for Oil Receiver Pipe)
|
91611-40818 |
— | ||
| replacement | |||||
|
9161140818
|
9161140818
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.60 |
||
