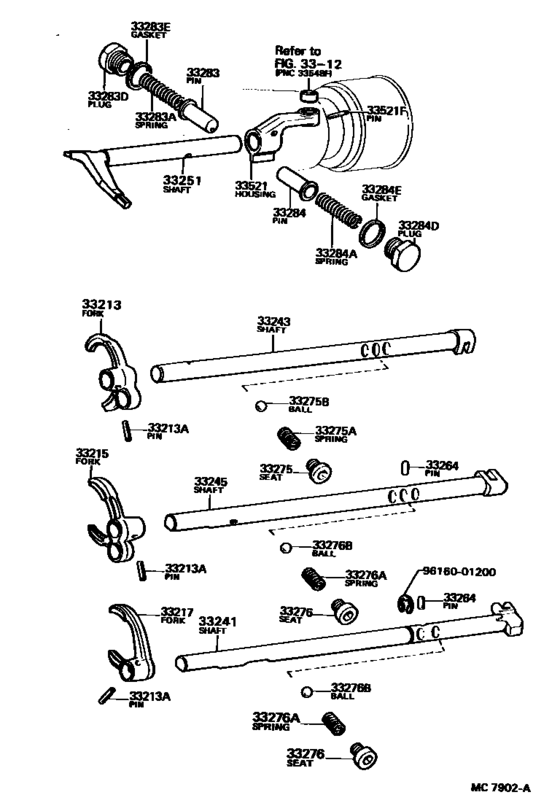

Gear Shift Fork & Lever Shaft (Mtm) ([06.1982 - 12.1983] (8206-8312)RT140) Diagram Toyota CORONA FR
- Year
- 1982 - 1983
- Sales region
- General
- Frame
- RT140
- grade
- DLX
- body
- SED
- ENGINE
- 12RM
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- From
- 01.1982
- To
- 12.1983
- Gear Shift Type
- 4F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33213
|
33213
33212-20050
Fork, 1St & 2Nd Shift
[01.1982 - 12.1983] CT140,RT140 |
33212-20050 |
— | ||
|
33213A
|
33213A
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[01.1982 - 08.1985] CT140,RT140,TT14#..4F,5F |
90254-05001 |
from US $1.03 |
||
|
33215
|
33215
33213-31010
Fork, 3Rd & 4Th Shift
[01.1982 - 12.1983] CT140,RT140 |
33213-31010 |
— | ||
|
33217
|
33217
33214-20011
Fork, 5Th & Reverse Shift
[01.1982 - 12.1983] CT140,RT140 |
33214-20011 |
— | ||
|
33241
|
33241
33244-30030
Shaft, Reverse Shift Fork
[06.1982 - 12.1983] RT140 |
33244-30030 |
— | ||
|
33243
|
33243
33242-20060 Shaft, 1St & 2Nd Shift Fork[01.1982 - 12.1983] CT140,RT140 |
33242-20060 |
US $48.48 |
||
|
33245
|
33245
33243-20031 Shaft, 3Rd & 4Th Shift Fork[01.1982 - 12.1983] CT140,RT140 |
33243-20031 |
US $50.96 |
||
|
33251
|
33251
33251-20040 Shaft Sub-Assy, Shift Lever, No.1[01.1982 - 12.1983] CT140,RT140 |
33251-20040 |
US $63.77 |
||
|
33264
|
33264
33264-31010
Pin, Or Ball, Shift Inter Lock, No.1
[01.1982 - 12.1983] CT140,RT140 |
33264-31010 |
— | ||
|
33275
|
33275
90341-10004
Plug, W/head Straight Screw, No.1(For Cylinder Block)
[01.1982 - 12.1983] CT140,RT140 |
90341-10004 |
— | ||
|
33275A
|
33275A
90501-13001
Spring, Compression (For Shift Detent Ball Low Side)
[01.1982 - 12.1983] CT140,RT140 L=16.5 |
90501-13001 |
— | ||
|
33275B
|
33275B
90360-08009 Ball, Reverse Shift Restrict[01.1982 - 12.1983] CT140,RT140 |
90360-08009 |
US $1.40 |
||
|
33276
|
33276
90341-10064
Seat, Shift Detent Ball Spring, No.2
[01.1982 - 12.1983] CT140,RT140 |
90341-10064 |
— | ||
|
33276A
|
33276A
90501-13001
Spring, Compression (For Shift Detent Ball Low Side)
[01.1982 - 12.1983] CT140,RT140 |
90501-13001 |
— | ||
|
33276B
|
33276B
90360-08009 Ball, Reverse Shift Restrict[01.1982 - 12.1983] CT140,RT140 |
90360-08009 |
US $1.40 |
||
|
33283
|
33283
33283-22010 Pin, Reverse Restrict, No.1[01.1982 - 12.1983] CT140,RT140 |
33283-22010 |
US $14.27 |
||
|
33283A
|
33283A
90501-16002
Spring, Compression (For Reverse Restrict Pin)
[01.1982 - 12.1983] CT140,RT140 |
90501-16002 |
— | ||
|
33283D
|
33283D
90341-20086 Plug, W/head Straight Screw[01.1982 - 12.1983] CT140,RT140 |
90341-20086 |
US $5.39 |
||
|
33283E
|
33283E
90430-21224
Gasket (For Reverse Restrict Pin)
[01.1982 - 12.1983] CT140,RT140 |
90430-21224 |
— | ||
|
33284
|
33284
33283-22010 Pin, Reverse Restrict, No.1[01.1982 - 12.1983] CT140,RT140 |
33283-22010 |
US $14.27 |
||
|
33284A
|
33284A
90501-16001
Spring, Compression (For Low Restrict Pin)
[01.1982 - 12.1983] CT140,RT140 |
90501-16001 |
— | ||
|
33284D
|
33284D
90341-20086 Plug, W/head Straight Screw[01.1982 - 12.1983] CT140,RT140 |
90341-20086 |
US $5.39 |
||
|
33284E
|
33284E
90430-21224
Gasket (For Reverse Restrict Pin)
[01.1982 - 12.1983] CT140,RT140 |
90430-21224 |
— | ||
|
33521
|
33521
33521-20140
Housing, Shift Lever
[01.1982 - 01.1983] CT140,RT140 |
33521-20140 |
— | ||
| replacement | |||||
|
33521
|
33521
33521-20141
Housing, Shift Lever
[01.1982 - 01.1983] CT140,RT140 |
33521-20141 |
— | ||
|
33521
|
33521
33521-20141
Housing, Shift Lever
[01.1983 - 12.1983] CT140,RT140 |
33521-20141 |
— | ||
|
33521F
|
33521F
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[01.1982 - 12.1983] CT140,RT140 |
90254-05016 |
from US $2.05 |
||
|
9616001200
|
9616001200
96160-01200 Ring, E(For Clutch Release Cable) |
96160-01200 |
from US $1.60 |
||
