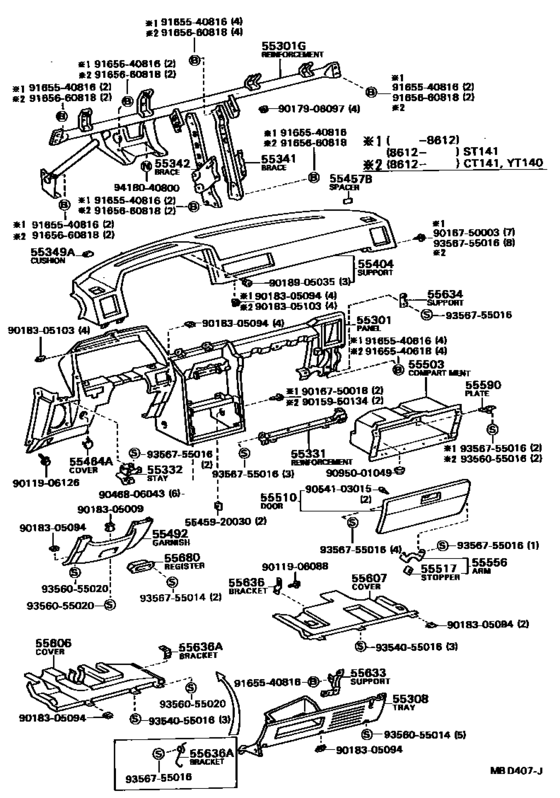

Instrument Panel & Glove Compartment ([01.1982 - ] (8201- )LHD) Diagram Toyota CORONA FR
- Year
- 1982 - 1983
- Sales region
- General
- Frame
- RT140
- grade
- DLX
- body
- SED
- ENGINE
- 12RM
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- From
- 01.1982
- To
- 12.1983
- Gear Shift Type
- 4F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55301
|
55301
55312-20130-01
Panel Sub-Assy, Instrument
[01.1982 - 07.1999] CT140,RT140,ST141,TT14#..LHD BLACK,BLACK |
55312-20130-01 |
— | ||
| replacement | |||||
|
55301
|
55301
55312-20130-C0
Panel Sub-Assy, Instrument
[01.1982 - 07.1999] CT140,RT140,ST141,TT14#..LHD BLACK,BLACK |
55312-20130-C0 |
— | ||
|
55301
|
55301
55312-20130-04
Panel Sub-Assy, Instrument
[01.1982 - 08.1985] CT140,RT140,TT14#..SED..LHD BLUE,BLUE |
55312-20130-04 |
— | ||
|
55301
|
55301
55312-20130-06
Panel Sub-Assy, Instrument
[01.1982 - 07.1999] CT140,RT140,ST141,TT14#..LHD SADDLE BROWN,BROWN |
55312-20130-06 |
— | ||
|
55301G
|
55301G
55305-14070
Reinforcement Sub-Assy, Instrument Panel
[01.1982 - 07.1999] CT140,RT140,ST141,TT14#..LHD..(3FC,4F,5F) |
55305-14070 |
— | ||
|
55308
|
55308
55601-20040-01
Tray Sub-Assy, Instrument Panel Under
[01.1982 - 07.1999] CT140,RT140,ST141,TT14#..LHD BLACK,BLACK |
55601-20040-01 |
— | ||
|
55308
|
55308
55601-20040-04 Tray Sub-Assy, Instrument Panel UnderINSTRUMENT PANEL UNDER [01.1982 - 08.1985] CT140,RT140,TT14#..SED..LHD BLUE,BLUE |
55601-20040-04 |
US $82.99 |
||
|
55308
|
55308
55601-20040-06
Tray Sub-Assy, Instrument Panel Under
[01.1982 - 07.1999] CT140,RT140,ST141,TT14#..LHD SADDLE BROWN,BROWN |
55601-20040-06 |
— | ||
| replacement | |||||
|
55308
|
55308
55601-20040-01
Tray Sub-Assy, Instrument Panel Under
[01.1982 - 07.1999] CT140,RT140,ST141,TT14#..LHD SADDLE BROWN,BROWN |
55601-20040-01 |
— | ||
|
55331
|
55331
55332-20090
Reinforcement, Instrument Panel
[01.1982 - 07.1999] CT140,RT140,ST141,TT14#..LHD |
55332-20090 |
— | ||
| replacement | |||||
|
55331
|
55331
55332-20091
Reinforcement, Instrument Panel
[01.1982 - 07.1999] CT140,RT140,ST141,TT14#..LHD |
55332-20091 |
— | ||
|
55332
|
55332
55303-20060 Stay, Instrument PanelINSTRUMENT PANEL [01.1982 - 07.1999] CT140,RT140,ST141,TT14#..LHD |
55303-20060 |
US $15.58 |
||
|
55341
|
55341
55306-14080 Brace, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [01.1982 - 07.1999] CT140,RT140,ST141,TT14#..LHD |
55306-14080 |
US $33.63 |
||
|
55342
|
55342
55307-14120 Brace, Instrument Panel, No.2INSTRUMENT PANEL, NO.2 [01.1982 - 07.1999] CT140,RT140,ST141,TT14#..LHD |
55307-14120 |
US $33.63 |
||
|
55349A
|
55349A
55349-14050
Cushion, Instrument Panel
[01.1982 - 12.1986] CT14#,RT14#,ST141,TT14# |
55349-14050 |
— | ||
|
55404
|
55404
55401-20410-01
Safety Pad Sub-Assy, Instrument Panel, Upper
[01.1982 - 07.1999] CT140,RT140,ST141,TT14#..LHD BLACK,BLACK |
55401-20410-01 |
— | ||
|
55404
|
55404
55401-20410-04
Safety Pad Sub-Assy, Instrument Panel, Upper
[01.1982 - 08.1985] CT140,RT140,TT14#..SED..LHD BLUE,BLUE |
55401-20410-04 |
— | ||
|
55404
|
55404
55401-20410-06
Safety Pad Sub-Assy, Instrument Panel, Upper
[01.1982 - 07.1999] CT140,RT140,ST141,TT14#..LHD SADDLE BROWN,BROWN |
55401-20410-06 |
— | ||
|
55457B
|
55457B
55457-20060 Spacer, Instrument Panel Safety Pad[02.1983 - 12.1986] CT14#,RT14#,ST141,TT14# 20X130 |
55457-20060 |
US $3.93 |
||
|
55457B
|
55457B
55457-22030 Spacer, Instrument Panel Safety Pad[01.1982 - 12.1986] CT14#,RT14#,ST141,TT14# 16X30 |
55457-22030 |
US $2.48 |
||
|
55492
|
55492
55432-20120-01 Garnish Or Safety Pad, Lower, RhLOWER, RH [01.1982 - 07.1999] CT140,RT140,ST141,TT14#..LHD..(3FC,4F,5F) BLACK,BLACK |
55432-20120-01 |
US $34.80 |
||
|
55492
|
55492
55432-20120-04
Garnish Or Safety Pad, Lower, Rh
[01.1982 - 08.1985] CT140,RT140,TT14#..SED..LHD..(3FC,4F,5F) BLUE,BLUE |
55432-20120-04 |
— | ||
|
55492
|
55492
55432-20120-06 Garnish Or Safety Pad, Lower, RhLOWER, RH [01.1982 - 07.1999] CT140,RT140,ST141,TT14#..LHD..(3FC,4F,5F) SADDLE BROWN,BROWN |
55432-20120-06 |
US $38.15 |
||
|
55503
|
55503
55581-20070 Compartment Sub-Assy, GloveGLOVE [01.1982 - 07.1999] CT140,RT140,ST141,TT14#..LHD |
55581-20070 |
US $42.95 |
||
|
55510
|
55510
55550-20080-01
Door Assy, Glove Compartment
[01.1982 - 07.1999] CT140,RT140,ST141,TT14#..LHD BLACK,BLACK |
55550-20080-01 |
— | ||
|
55510
|
55510
55550-20080-04
Door Assy, Glove Compartment
[01.1982 - 08.1985] CT140,RT140,TT14#..SED..LHD BLUE,BLUE |
55550-20080-04 |
— | ||
| replacement | |||||
|
55510
|
55510
55550-20080-01
Door Assy, Glove Compartment
[01.1982 - 08.1985] CT140,RT140,TT14#..SED..LHD BLUE,BLUE |
55550-20080-01 |
— | ||
|
55510
|
55510
55550-20080-06
Door Assy, Glove Compartment
[01.1982 - 07.1999] CT140,RT140,ST141,TT14#..LHD SADDLE BROWN,BROWN |
55550-20080-06 |
— | ||
|
55517
|
55517
55517-14010
Stopper, Glove Compartment Door Arm
[01.1982 - 12.1986] CT14#,RT14#,ST141,TT14# |
55517-14010 |
— | ||
|
55556
|
55556
55556-14080
Arm, Glove Compartment Door Check
[01.1982 - 12.1986] CT14#,RT14#,ST141,TT14# |
55556-14080 |
— | ||
|
55590
|
55590
55590-14010
Plate Assy, Grove Compartment Door Lock Striker
[01.1982 - 12.1984] CT140,RT14#,ST141,TT14# |
55590-14010 |
— | ||
| replacement | |||||
|
55590
|
55590
55590-14020 Plate Assy, Grove Compartment Door Lock Striker[01.1982 - 12.1984] CT140,RT14#,ST141,TT14# |
55590-14020 |
US $14.56 |
||
|
55633
|
55633
55633-20030
Support, Instrument Panel Under Tray, No.2
[01.1982 - 07.1999] CT140,RT140,ST141,TT14#..LHD |
55633-20030 |
— | ||
|
55634
|
55634
55634-20010 Support, Instrument Panel Under Tray, No.3INSTRUMENT PANEL UNDER TRAY, NO.3 [01.1982 - 07.1999] CT140,RT140,ST141,TT14#..LHD |
55634-20010 |
US $2.77 |
||
|
5545920030
|
5545920030
55459-20030 Base, Transmission Control Switch |
55459-20030 |
US $9.17 |
||
|
9011906088
|
9011906088
90119-06088 Bolt, W/washer (For Floor Shift) |
90119-06088 |
US $1.14 |
||
|
9011906126
|
9011906126
90119-06126 BOLT |
90119-06126 |
from US $1.12 |
||
| replacement | |||||
|
9011906126
|
9011906126
90080-11157
Bolt with Washer
|
90080-11157 |
— | ||
|
9015950134
|
9015950134
90159-50134 SCREW |
90159-50134 |
US $1.92 |
||
|
9016750003
|
9016750003
90167-50003 New Genuine Part |
90167-50003 |
US $1.75 |
||
| replacement | |||||
|
9016750003
|
9016750003
93568-55016 Screw |
93568-55016 |
from US $0.60 |
||
|
9016750018
|
9016750018
90167-50018 New Genuine Part |
90167-50018 |
US $0.70 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9018305009
|
9018305009
90183-05009 New Genuine Part |
90183-05009 |
US $1.44 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.98 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9018905035
|
9018905035
90189-05035 New Genuine Part |
90189-05035 |
US $1.75 |
||
|
9046806043
|
9046806043
90468-06043 New Genuine Part |
90468-06043 |
US $1.89 |
||
|
9054103015
|
9054103015
90541-03015 Cushion, Instrument Panel Box |
90541-03015 |
from US $1.62 |
||
|
9095001049
|
9095001049
90950-01049
New Genuine Part
|
90950-01049 |
— | ||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9165540618
|
9165540618
91655-40618
New Genuine Part
|
91655-40618 |
— | ||
| replacement | |||||
|
9165540618
|
9165540618
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9165540816
|
9165540816
91655-40816 New Genuine Part |
91655-40816 |
US $1.89 |
||
| replacement | |||||
|
9165540816
|
9165540816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9165660818
|
9165660818
91656-60818 Clamp Or Clip, Hose(for Radiator Outlet No.1) |
91656-60818 |
US $1.89 |
||
| replacement | |||||
|
9165660818
|
9165660818
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
|
9354055016
|
9354055016
93540-55016 SCREW |
93540-55016 |
US $1.12 |
||
|
9356055014
|
9356055014
93560-55014 SCREW |
93560-55014 |
from US $0.70 |
||
|
9356055016
|
9356055016
93560-55016 Screw(For Mat Set Plate) |
93560-55016 |
from US $0.70 |
||
|
9356055020
|
9356055020
93560-55020 SCREW |
93560-55020 |
US $1.92 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.60 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.54 |
||
