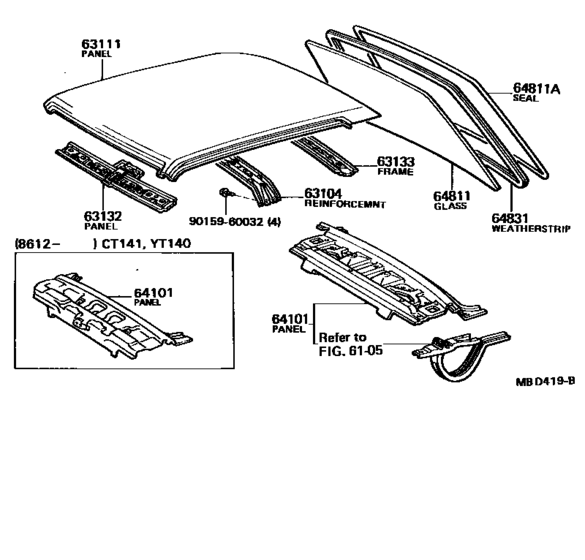

Roof Panel & Back Window Glass ([01.1982 - ] (8201- )SED) Diagram Toyota CORONA FR
- Year
- 1982 - 1983
- Sales region
- General
- Frame
- RT140
- grade
- DLX
- body
- SED
- ENGINE
- 12RM
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- From
- 01.1982
- To
- 12.1983
- Gear Shift Type
- 4F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63104
|
63104
63103-20020
Reinforcement Sub-Assy, Roof Panel, Center
[01.1982 - 10.1983] CT140,RT140,ST141,TT14#..SED..(ARL,GEN,PHL) W/SUSPENDED HEADLINING |
63103-20020 |
— | ||
|
63111
|
63111
63111-20120 Panel, Roof[01.1982 - 12.1986] CT14#,RT14#,ST141,TT14#..SED |
63111-20120 |
US $474.66 |
||
|
63132
|
63132
63102-14030 Panel, Windshield Header, Inner[01.1982 - 07.1999] CT140,RT14#,ST141,TT14# |
63102-14030 |
US $44.99 |
||
|
63133
|
63133
63133-20080 Frame, Back Window Opening, Upper[01.1982 - 12.1986] CT14#,RT14#,ST141,TT14#..SED |
63133-20080 |
US $37.13 |
||
|
64101
|
64101
64101-20160
Panel Sub-Assy, Upper Back
[01.1982 - 08.1985] CT140,RT140,TT14#..SED W/O RECLINING RR SEAT |
64101-20160 |
— | ||
|
64811
|
64811
64801-20010 Glass, Back Window[01.1982 - 08.1985] CT140,RT140,TT14#..SED *EHTT,T=3.5,*EHTT,T=3.5 |
64801-20010 |
US $717.81 |
||
|
64811
|
64811
64811-20410 Glass, Back WindowBACK WINDOW [01.1982 - 08.1985] CT140,RT140,TT14#..SED..(DLX,GL,TAX) *TT,T=3.5 |
64811-20410 |
US $398.94 |
||
| replacement | |||||
|
64811
|
64811
64801-20010 Glass, Back Window[01.1982 - 08.1985] CT140,RT140,TT14#..SED..(DLX,GL,TAX) *TT,T=3.5 |
64801-20010 |
US $717.81 |
||
|
64811A
|
64811A
64814-14020
Seal, Back Window Glass Weatherstrip
[01.1982 - 07.1999] CT14#,RT14#,ST141,TT14#..SED |
64814-14020 |
— | ||
| replacement | |||||
|
64811A
|
64811A
64814-20020
Seal, Back Window Glass Weatherstrip
[01.1982 - 07.1999] CT14#,RT14#,ST141,TT14#..SED |
64814-20020 |
— | ||
|
64831
|
64831
64812-20010 Weatherstrip, Back Window Glass[01.1982 - 12.1986] CT14#,RT14#,ST141,TT14#..SED |
64812-20010 |
US $149.97 |
||
|
9015960032
|
9015960032
90159-60032 Screw W Washer |
90159-60032 |
US $0.96 |
||
