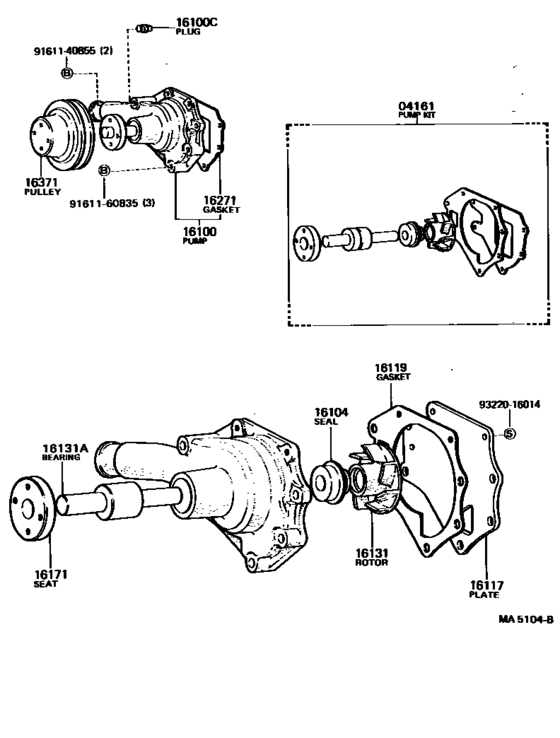

Water Pump ([06.1982 - 12.1983] (8206-8312)12RM) Diagram Toyota CORONA FR
- Year
- 1982 - 1983
- Sales region
- General
- Frame
- RT140
- grade
- DLX
- body
- SED
- ENGINE
- 12RM
- TRANSMISSION
- MTM
- DESTINATION
- PHL
- From
- 01.1982
- To
- 12.1983
- Gear Shift Type
- 4F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04161
|
04161
04161-31023
Pump Kit, Water
[06.1982 - 12.1983] 12RM..RT140 |
04161-31023 |
— | ||
|
16100
|
16100
16100-39116
Pump Assy, Engine Water
[06.1982 - 12.1983] 12RM..RT140 |
16100-39116 |
— | ||
|
16100C
|
16100C
90345-54005 Plug, W/head Taper Screw, No.1[06.1982 - 12.1983] 12RM..RT140 |
90345-54005 |
US $4.32 |
||
|
16104
|
16104
16104-41111
Seal Set, Water Pump
[06.1982 - 12.1983] 12RM..RT140 |
16104-41111 |
— | ||
| replacement | |||||
|
16104
|
16104
16104-15020 Seal Set, Water Pump[06.1982 - 12.1983] 12RM..RT140 |
16104-15020 |
US $22.13 |
||
|
16117
|
16117
16117-31031 Plate, Water Pump[06.1982 - 12.1983] 12RM..RT140 |
16117-31031 |
US $12.52 |
||
|
16119
|
16119
16124-31031
Gasket, Water Pump Body
[06.1982 - 12.1983] 12RM..RT140 |
16124-31031 |
— | ||
| replacement | |||||
|
16119
|
16119
16124-31032
Gasket, Water Pump Body
[06.1982 - 12.1983] 12RM..RT140 |
16124-31032 |
— | ||
|
16131
|
16131
16131-31031
Rotor, Water Pump
[06.1982 - 12.1983] 12RM..RT140 |
16131-31031 |
— | ||
|
16131A
|
16131A
90369-30003 Bearing, Water Pump[06.1982 - 12.1983] 12RM..RT140 |
90369-30003 |
US $54.31 |
||
| replacement | |||||
|
16131A
|
16131A
90369-30022
Bearing, Water Pump
[06.1982 - 12.1983] 12RM..RT140 |
90369-30022 |
— | ||
|
16171
|
16171
16171-24031 Seat, Water Pump Pulley[06.1982 - 12.1983] 12RM..RT140 |
16171-24031 |
US $14.71 |
||
|
16271
|
16271
16271-31010
Gasket, Water Pump
[06.1982 - 12.1983] 12RM..RT140 |
16271-31010 |
— | ||
|
16371
|
16371
16371-31022 Pulley, Fan[06.1982 - 12.1983] 12RM..RT140 |
16371-31022 |
US $21.55 |
||
|
9161140855
|
9161140855
91611-40855
Bolt(For Rocker Support Set)
|
91611-40855 |
— | ||
| replacement | |||||
|
9161140855
|
9161140855
91611-60855 Bolt(For Rocker Support Set) |
91611-60855 |
US $1.60 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.44 |
||
|
9322016014
|
9322016014
93220-16014 SCREW |
93220-16014 |
US $1.60 |
||
