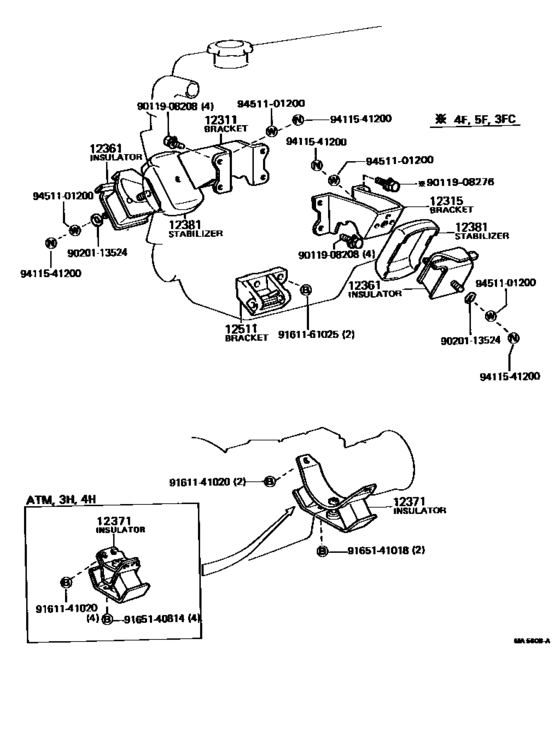

Mounting ([01.1982 - 08.1985] (8201-8508)2T,3T) Diagram Toyota CORONA FR
- Year
- 1982 - 1984
- Sales region
- General
- Frame
- TT140
- grade
- DLX
- body
- SED
- ENGINE
- 2T
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 01.1982
- To
- 12.1984
- Gear Shift Type
- 4F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-25051
Bracket, Engine Mounting, Front No.1 Rh
[01.1982 - 08.1985] 2T,3T..TT14# |
12311-25051 |
— | ||
|
12315
|
12315
12312-25041
Bracket, Engine Mounting, Front No.1 Lh
[01.1982 - 02.1982] 2T..TT140 |
12312-25041 |
— | ||
|
12361
|
12361
12361-18010
Insulator, Engine Mounting, Front
[01.1982 - 08.1985] 2T,3T..TT14# MARUYASU,TOKAIGOMU |
12361-18010 |
— | ||
|
12361
|
12361
12361-18020 Insulator, Engine Mounting, Front[01.1982 - 08.1985] 2T,3T..TT14# TOYOGOMU |
12361-18020 |
US $71.05 |
||
|
12361
|
12361
12361-18030 Insulator, Engine Mounting, Front[01.1982 - 08.1985] 2T,3T..TT14# TOYOTA GOSEI |
12361-18030 |
US $71.05 |
||
|
12371
|
12371
12371-33010 Insulator, Engine Mounting, Rear No.1[01.1982 - 08.1985] 2T,3T..TT14#..4F,5F |
12371-33010 |
US $54.87 |
||
|
12381
|
12381
12381-18010 Stabilizer, Engine Mounting[01.1982 - 08.1985] 2T,3T..TT14# MARUYASU,TOKAIGOMU |
12381-18010 |
US $21.26 |
||
|
12381
|
12381
12381-18020
Stabilizer, Engine Mounting
[01.1982 - 08.1985] 2T,3T..TT14# TOYOGOMU |
12381-18020 |
— | ||
|
12381
|
12381
12381-18050
Stabilizer, Engine Mounting
[01.1982 - 08.1985] 2T,3T..TT14# TOYOTA GOSEI |
12381-18050 |
— | ||
|
12511
|
12511
12511-25010
Bracket, Alternator, No.1
[01.1982 - 08.1985] 2T,3T..TT14# |
12511-25010 |
— | ||
|
9011908208
|
9011908208
90119-08208 Bolt (For Roller Bearing Retainer) |
90119-08208 |
US $0.87 |
||
|
9011908276
|
9011908276
90119-08276
New Genuine Part
|
90119-08276 |
— | ||
| replacement | |||||
|
9011908276
|
9011908276
90119-08336 BOLT |
90119-08336 |
US $2.56 |
||
|
9020113524
|
9020113524
90201-13524 New Genuine Part |
90201-13524 |
US $3.06 |
||
|
9161141020
|
9161141020
91611-41020
Bolt(for Transaxle & Engine Setting)
|
91611-41020 |
— | ||
| replacement | |||||
|
9161141020
|
9161141020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.13 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.42 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165141018
|
9165141018
91651-41018
New Genuine Part
|
91651-41018 |
— | ||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $1.03 |
||
|
9451101200
|
9451101200
94511-01200 WASHER |
94511-01200 |
from US $0.68 |
||
