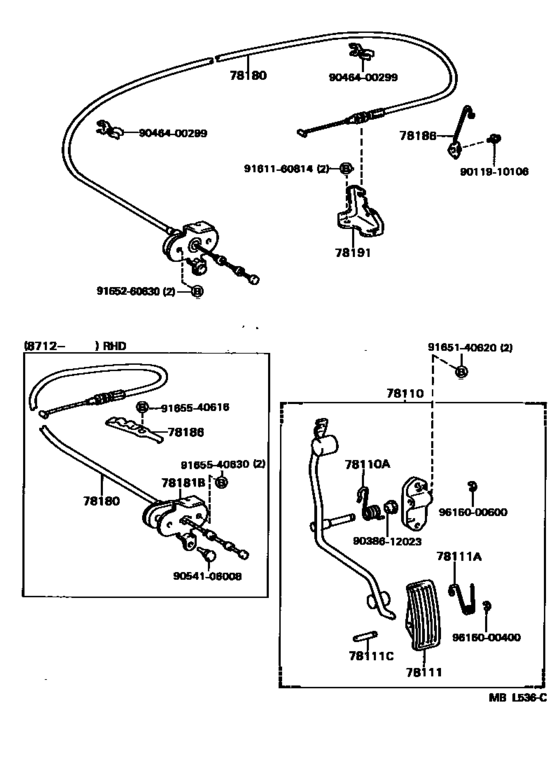

Accelerator Link ([12.1986 - ] (8612- )YT140) Diagram Toyota CORONA FR
- Year
- 1988 - 1999
- Sales region
- Europe
- Frame
- YT140
- grade
- STD
- body
- SED
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 01.1988
- To
- 07.1999
- Gear Shift Type
- 4F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110
|
78110
78120-20200 Rod Assy, Accelerator Pedal[01.1988 - 07.1999] YT140..RHD |
78120-20200 |
US $94.64 |
||
|
78110A
|
78110A
90508-26048 Spring (For Accelerator Pedal Rod)[01.1988 - 07.1999] YT140..RHD |
90508-26048 |
US $7.28 |
||
|
78111
|
78111
78111-12100 Pedal, Accelerator[12.1986 - 07.1999] CT141,YT140 |
78111-12100 |
from US $14.70 |
||
|
78111A
|
78111A
90508-23003
Spring (For Accelerator Pedal)
[12.1986 - 07.1999] CT141,YT140 |
90508-23003 |
— | ||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[12.1986 - 07.1999] CT141,YT140 |
90249-05001 |
US $3.32 |
||
|
78180
|
78180
78180-2B310 Wire Assy, AcceleratorACCELERATOR [01.1988 - 07.1999] YT140..RHD |
78180-2B310 |
US $45.43 |
||
|
78181B
|
78181B
78181-14060 Stopper, Accelerator Idle Adjusting[01.1988 - 07.1999] YT140..RHD |
78181-14060 |
US $18.05 |
||
|
78186
|
78186
78186-14080 Support, Accelerator Control Cable, No.1[01.1988 - 07.1999] YT140..RHD |
78186-14080 |
US $8.74 |
||
|
78191
|
78191
78184-95J00 Bracket Sub-Assy, Accelerator Control Cable[12.1986 - 07.1999] YT140 |
78184-95J00 |
US $16.95 |
||
|
9011910106
|
9011910106
90119-10106 New Genuine Part |
90119-10106 |
US $3.68 |
||
|
9038612023
|
9038612023
90386-12023 Bush (For Accelerator Pedal Rod) |
90386-12023 |
US $2.33 |
||
|
9046400299
|
9046400299
90464-00299 New Genuine Part |
90464-00299 |
US $4.80 |
||
|
9054106008
|
9054106008
90541-06008 Cushion, No.1(For Clutch Pedal) |
90541-06008 |
from US $1.60 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165260630
|
9165260630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9165540630
|
9165540630
91655-40630 New Genuine Part |
91655-40630 |
US $1.89 |
||
| replacement | |||||
|
9165540630
|
9165540630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $1.07 |
||
