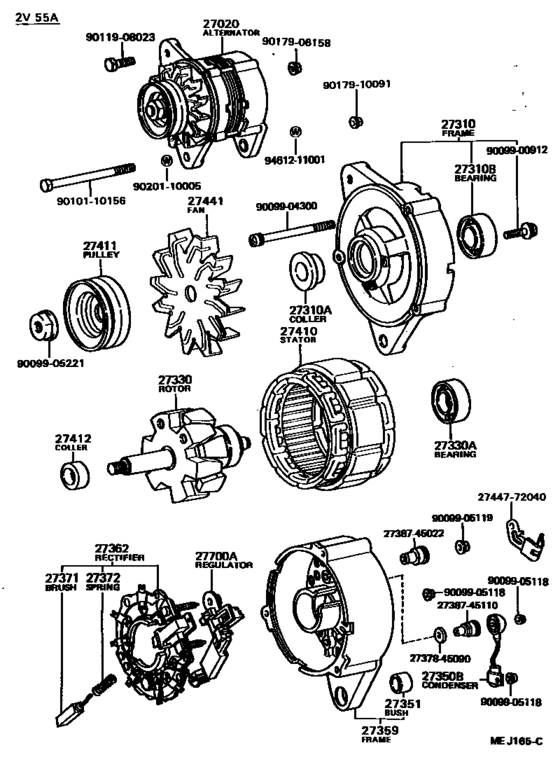

Alternator ([12.1986 - 02.1989] (8612-8902)2Y) Diagram Toyota CORONA FR
- Year
- 1988 - 1999
- Sales region
- Europe
- Frame
- YT140
- grade
- STD
- body
- SED
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 01.1988
- To
- 07.1999
- Gear Shift Type
- 4F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-72020 Alternator Assy[12.1986 - 02.1989] 2Y..YT140 12V 55A,12V 55A |
27060-72020 |
US $1,281.28 |
||
|
27020
|
27020
27060-72220 Alternator Assy[02.1989 - 07.1999] 2Y..YT140 12V 60A,12V 60A |
27060-72220 |
US $1,470.56 |
||
|
27310
|
27310
27310-72041
Frame Assy, Drive End, Alternator
[12.1986 - 02.1989] 2Y..YT140 12V 55A |
27310-72041 |
— | ||
|
27310
|
27310
27310-72250
Frame Assy, Drive End, Alternator
[02.1989 - 07.1999] 2Y..YT140 12V 60A |
27310-72250 |
— | ||
|
27310A
|
27310A
27412-16040
Ring, Space(For Alternator Rotor)
[04.1986 - 02.1989] 2S,2Y..ST141,YT140 12V 55A |
27412-16040 |
— | ||
|
27310B
|
27310B
90099-10142
Bearing(For Alternator Drive End Frame)
[08.1985 - 02.1989] 2S,2Y..ST141,YT140 12V 55A |
90099-10142 |
— | ||
|
27310B
|
27310B
90099-10177
Bearing(For Alternator Drive End Frame)
[02.1989 - 07.1999] 2Y..YT140 12V 60A |
90099-10177 |
— | ||
|
27330
|
27330
27330-43040
Rotor Assy, Alternator
[12.1986 - 02.1989] 2Y..YT140 12V 55A |
27330-43040 |
— | ||
|
27330
|
27330
27330-43132
Rotor Assy, Alternator
[02.1989 - 07.1999] 2Y..YT140 12V 60A |
27330-43132 |
— | ||
|
27330A
|
27330A
90099-10116
Bearing(For Alternator Rotor)
[01.1982 - 02.1989] 2S,2T,3T,2Y..ST141,TT14#,YT140 12V 50A,55A |
90099-10116 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[02.1989 - 07.1999] 2Y..YT140 12V 60A |
90099-10140 |
from US $9.43 |
||
|
27350B
|
27350B
90099-52065 Condenser, Alternator[01.1982 - 02.1989] 2S,2T,3T,2Y..ST141,TT14#,YT140 12V 50A,55A |
90099-52065 |
US $3.45 |
||
| replacement | |||||
|
27350B
|
27350B
90099-52034
Condenser, Alternator
[01.1982 - 02.1989] 2S,2T,3T,2Y..ST141,TT14#,YT140 12V 50A,55A |
90099-52034 |
— | ||
|
27351
|
27351
27351-38051
Bush(For Alternator Rectifier End Frame)
[01.1982 - 02.1989] 2S,2T,3T,2Y..ST141,TT14#,YT140 12V 50A,55A |
27351-38051 |
— | ||
|
27359
|
27359
27359-72040
Frame, Alternator Rectifier End
[12.1986 - 02.1989] 2Y..YT140 12V 55A |
27359-72040 |
— | ||
|
27359
|
27359
27359-72250
Frame, Alternator Rectifier End
[02.1989 - 07.1999] 2Y..YT140 12V 60A |
27359-72250 |
— | ||
|
27362
|
27362
27362-72040
Rectifier Assy, W/brush
[12.1986 - 02.1989] 2Y..YT140 12V 55A |
27362-72040 |
— | ||
|
27371
|
27371
27371-44071
Brush, Alternator
[12.1986 - 02.1989] 2Y..YT140 12V 55A |
27371-44071 |
— | ||
|
27371
|
27371
27371-72161
Brush, Alternator
[02.1989 - 07.1999] 2Y..YT140 12V 60A |
27371-72161 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-70300 Brush, Alternator[02.1989 - 07.1999] 2Y..YT140 12V 60A |
27371-70300 |
from US $2.97 |
||
|
27372
|
27372
27372-31011
Spring, Alternator Brush
[12.1987 - 02.1989] 2Y..YT140 12V 55A |
27372-31011 |
— | ||
|
27372
|
27372
27372-63020
Spring, Alternator Brush
[02.1989 - 07.1999] 2Y..YT140 12V 60A |
27372-63020 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[02.1989 - 07.1999] 2Y..YT140 12V 60A |
27372-87501 |
— | ||
|
27410
|
27410
27410-72040
Stator Assy, Alternator
[12.1986 - 02.1989] 2Y..YT140 12V 55A |
27410-72040 |
— | ||
|
27411
|
27411
27411-72040
Pulley, Alternator
[12.1986 - 02.1989] 2Y..YT140 12V 55A |
27411-72040 |
— | ||
|
27411
|
27411
27411-72130
Pulley, Alternator
[02.1989 - 07.1999] 2Y..YT140 12V 60A |
27411-72130 |
— | ||
|
27412
|
27412
27412-45070
Ring, Space(For Alternator Rotor)
[12.1986 - 02.1989] 2Y..YT140 12V 55A |
27412-45070 |
— | ||
|
27441
|
27441
27441-70040
Fan, Alternator
[12.1986 - 02.1989] 2Y..YT140 12V 55A |
27441-70040 |
— | ||
|
27700A
|
27700A
27700-72050 Regulator Assy, Generator[12.1986 - 02.1989] 2Y..YT140 12V 55A |
27700-72050 |
US $269.36 |
||
| replacement | |||||
|
27700A
|
27700A
27700-63030
Regulator Assy, Generator
[12.1986 - 02.1989] 2Y..YT140 12V 55A |
27700-63030 |
— | ||
|
27700A
|
27700A
27700-72080 Regulator Assy, Generator[02.1989 - 07.1999] 2Y..YT140 12V 60A |
27700-72080 |
US $264.99 |
||
|
2737845090
|
2737845090
27378-45090
Insulator, Alternator, No.1
|
27378-45090 |
— | ||
|
2738745022
|
2738745022
27387-45022
Insulator, Terminal
|
27387-45022 |
— | ||
|
2738745110
|
2738745110
27387-45110
Insulator, Terminal
|
27387-45110 |
— | ||
|
2744772040
|
2744772040
27447-72040
Clip, Alternator Cord
|
27447-72040 |
— | ||
|
9009900912
|
9009900912
90099-00912
New Genuine Part
|
90099-00912 |
— | ||
|
9009904300
|
9009904300
90099-04300
New Genuine Part
|
90099-04300 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905221
|
9009905221
90099-05221
New Genuine Part
|
90099-05221 |
— | ||
|
9010110156
|
9010110156
90101-10156 Bolt(For Alternator) |
90101-10156 |
US $6.24 |
||
|
9011908023
|
9011908023
90119-08023 BOLT |
90119-08023 |
US $2.48 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9017910091
|
9017910091
90179-10091 Nut (For Front Lower Ball Joint Setting) |
90179-10091 |
US $2.77 |
||
| replacement | |||||
|
9017910091
|
9017910091
90179-10088 Nut |
90179-10088 |
from US $1.13 |
||
|
9020110005
|
9020110005
90201-10005 Washer, Plate(For Cylinder Head Set) |
90201-10005 |
from US $2.56 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $0.96 |
||
