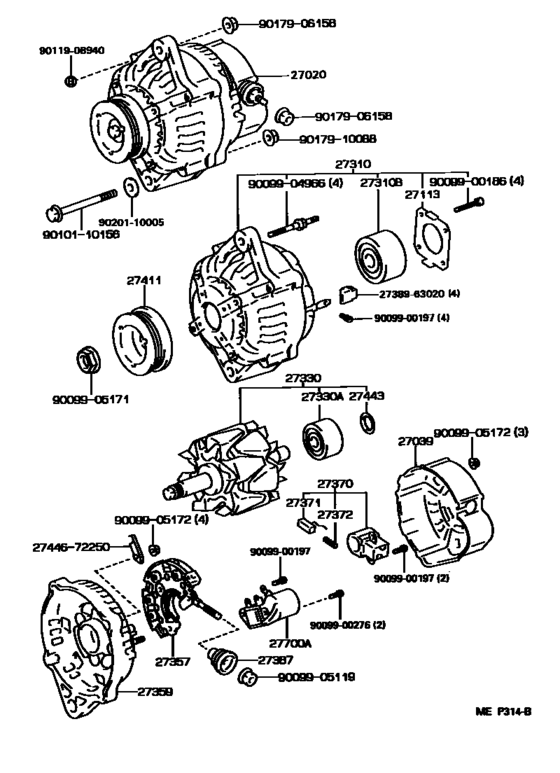

Alternator ([02.1989 - ] 12V 60A (8902- )2Y) Diagram Toyota CORONA FR
- Year
- 1988 - 1999
- Sales region
- Europe
- Frame
- YT140
- grade
- STD
- body
- SED
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 01.1988
- To
- 07.1999
- Gear Shift Type
- 4F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-72020 Alternator Assy[12.1986 - 02.1989] 2Y..YT140 12V 55A,12V 55A |
27060-72020 |
US $1,281.28 |
||
|
27020
|
27020
27060-72220 Alternator Assy[02.1989 - 07.1999] 2Y..YT140 12V 60A,12V 60A |
27060-72220 |
US $1,470.56 |
||
|
27039
|
27039
27039-15170
Cover, Alternator Rear End
[09.1991 - 01.1997] 2Y..YT140 12V 60A |
27039-15170 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-15171
Cover, Alternator Rear End
[09.1991 - 01.1997] 2Y..YT140 12V 60A |
27039-15171 |
— | ||
|
27039
|
27039
27039-15171
Cover, Alternator Rear End
[01.1997 - 07.1999] 2Y..YT140 12V 60A |
27039-15171 |
— | ||
|
27039
|
27039
27039-72010
Cover, Alternator Rear End
[02.1989 - 09.1991] 2Y..YT140 12V 60A |
27039-72010 |
— | ||
| replacement | |||||
|
27039
|
27039
27039-15171
Cover, Alternator Rear End
[02.1989 - 09.1991] 2Y..YT140 12V 60A |
27039-15171 |
— | ||
|
27113
|
27113
27312-70200
Plate, Bearing Retainer, Alternator
[02.1989 - 07.1999] 2Y..YT140 12V 60A |
27312-70200 |
— | ||
|
27310
|
27310
27310-72041
Frame Assy, Drive End, Alternator
[12.1986 - 02.1989] 2Y..YT140 12V 55A |
27310-72041 |
— | ||
|
27310
|
27310
27310-72250
Frame Assy, Drive End, Alternator
[02.1989 - 07.1999] 2Y..YT140 12V 60A |
27310-72250 |
— | ||
|
27310B
|
27310B
90099-10142
Bearing(For Alternator Drive End Frame)
[08.1985 - 02.1989] 2S,2Y..ST141,YT140 12V 55A |
90099-10142 |
— | ||
|
27310B
|
27310B
90099-10177
Bearing(For Alternator Drive End Frame)
[02.1989 - 07.1999] 2Y..YT140 12V 60A |
90099-10177 |
— | ||
|
27330
|
27330
27330-43040
Rotor Assy, Alternator
[12.1986 - 02.1989] 2Y..YT140 12V 55A |
27330-43040 |
— | ||
|
27330
|
27330
27330-43132
Rotor Assy, Alternator
[02.1989 - 07.1999] 2Y..YT140 12V 60A |
27330-43132 |
— | ||
|
27330A
|
27330A
90099-10116
Bearing(For Alternator Rotor)
[01.1982 - 02.1989] 2S,2T,3T,2Y..ST141,TT14#,YT140 12V 50A,55A |
90099-10116 |
— | ||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[02.1989 - 07.1999] 2Y..YT140 12V 60A |
90099-10140 |
from US $9.43 |
||
|
27357
|
27357
27357-63020 Holder, Alternator, W/rectifier[02.1989 - 07.1999] 2Y..YT140 12V 60A |
27357-63020 |
US $152.01 |
||
|
27359
|
27359
27359-72040
Frame, Alternator Rectifier End
[12.1986 - 02.1989] 2Y..YT140 12V 55A |
27359-72040 |
— | ||
|
27359
|
27359
27359-72250
Frame, Alternator Rectifier End
[02.1989 - 07.1999] 2Y..YT140 12V 60A |
27359-72250 |
— | ||
|
27370
|
27370
27370-35060 Holder Assy, Alternator Brush[07.1992 - 07.1999] 2Y..YT140 12V 60A |
27370-35060 |
from US $23.41 |
||
|
27370
|
27370
27370-70300
Holder Assy, Alternator Brush
[02.1991 - 07.1992] 2Y..YT140 12V 60A |
27370-70300 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-35060 Holder Assy, Alternator Brush[02.1991 - 07.1992] 2Y..YT140 12V 60A |
27370-35060 |
from US $23.41 |
||
|
27370
|
27370
27370-72161
Holder Assy, Alternator Brush
[02.1989 - 02.1991] 2Y..YT140 12V 60A |
27370-72161 |
— | ||
| replacement | |||||
|
27370
|
27370
27370-35060 Holder Assy, Alternator Brush[02.1989 - 02.1991] 2Y..YT140 12V 60A |
27370-35060 |
from US $23.41 |
||
|
27371
|
27371
27371-44071
Brush, Alternator
[12.1986 - 02.1989] 2Y..YT140 12V 55A |
27371-44071 |
— | ||
|
27371
|
27371
27371-72161
Brush, Alternator
[02.1989 - 07.1999] 2Y..YT140 12V 60A |
27371-72161 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-70300 Brush, Alternator[02.1989 - 07.1999] 2Y..YT140 12V 60A |
27371-70300 |
from US $2.97 |
||
|
27372
|
27372
27372-31011
Spring, Alternator Brush
[12.1987 - 02.1989] 2Y..YT140 12V 55A |
27372-31011 |
— | ||
|
27372
|
27372
27372-63020
Spring, Alternator Brush
[02.1989 - 07.1999] 2Y..YT140 12V 60A |
27372-63020 |
— | ||
| replacement | |||||
|
27372
|
27372
27372-87501
Spring, Alternator Brush
[02.1989 - 07.1999] 2Y..YT140 12V 60A |
27372-87501 |
— | ||
|
27387
|
27387
27387-70170
Insulator, Terminal
[02.1989 - 09.1997] 2Y..YT140 12V 60A |
27387-70170 |
— | ||
|
27387
|
27387
27387-70171
Insulator, Terminal
[09.1997 - 07.1999] 2Y..YT140 12V 60A |
27387-70171 |
— | ||
|
27411
|
27411
27411-72040
Pulley, Alternator
[12.1986 - 02.1989] 2Y..YT140 12V 55A |
27411-72040 |
— | ||
|
27411
|
27411
27411-72130
Pulley, Alternator
[02.1989 - 07.1999] 2Y..YT140 12V 60A |
27411-72130 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[02.1989 - 07.1999] 2Y..YT140 12V 60A |
27443-63020 |
from US $1.12 |
||
|
27700A
|
27700A
27700-72050 Regulator Assy, Generator[12.1986 - 02.1989] 2Y..YT140 12V 55A |
27700-72050 |
US $269.36 |
||
| replacement | |||||
|
27700A
|
27700A
27700-63030
Regulator Assy, Generator
[12.1986 - 02.1989] 2Y..YT140 12V 55A |
27700-63030 |
— | ||
|
27700A
|
27700A
27700-72080 Regulator Assy, Generator[02.1989 - 07.1999] 2Y..YT140 12V 60A |
27700-72080 |
US $264.99 |
||
|
2738963020
|
2738963020
27389-63020
Insulator, Terminal
|
27389-63020 |
— | ||
|
2744672250
|
2744672250
27446-72250
Clamp
|
27446-72250 |
— | ||
|
9009900186
|
9009900186
90099-00186
New Genuine Part
|
90099-00186 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
from US $0.28 |
||
|
9009900276
|
9009900276
90099-00276 New Genuine Part |
90099-00276 |
US $0.87 |
||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9010110156
|
9010110156
90101-10156 Bolt(For Alternator) |
90101-10156 |
US $6.24 |
||
|
9011908940
|
9011908940
90119-08940 New Genuine Part |
90119-08940 |
US $1.89 |
||
| replacement | |||||
|
9011908940
|
9011908940
91611-60840 BOLT |
91611-60840 |
from US $1.70 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $1.13 |
||
|
9020110005
|
9020110005
90201-10005 Washer, Plate(For Cylinder Head Set) |
90201-10005 |
from US $2.56 |
||
