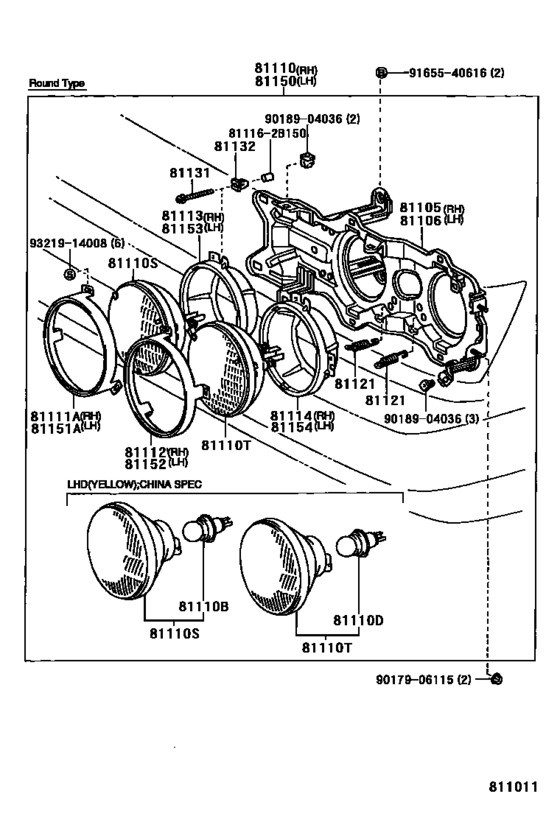

Headlamp ([12.1986 - ] (8612- )) Diagram Toyota CORONA FR
- Year
- 1988 - 1999
- Sales region
- Europe
- Frame
- YT140
- grade
- STD
- body
- SED
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 01.1988
- To
- 07.1999
- Gear Shift Type
- 4F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81105
|
81105
81105-91C01 Housing Sub-Assy, Headlamp, Rh[12.1986 - 07.1999] CT141,YT140 *ROU |
81105-91C01 |
US $59.55 |
||
|
81105
|
81105
81130-2B160 Housing Sub-Assy, Headlamp, Rh[01.1988 - 07.1999] YT140..RHD *REC |
81130-2B160 |
US $291.20 |
||
|
81106
|
81106
81106-91C01 Housing Sub-Assy, Headlamp, Lh[12.1986 - 07.1999] CT141,YT140 *ROU |
81106-91C01 |
US $59.55 |
||
|
81106
|
81106
81170-2B130 Housing Sub-Assy, Headlamp, Lh[01.1988 - 07.1999] YT140..RHD *REC |
81170-2B130 |
US $291.20 |
||
|
81110
|
81110
81110-2B160
Headlamp Assy, Rh
[12.1986 - 07.1999] CT141,YT140..RHD *REC |
81110-2B160 |
— | ||
|
81110
|
81110
81110-2B180 Headlamp Assy, Rh[12.1986 - 07.1999] CT141,YT140..RHD *ROU |
81110-2B180 |
US $190.74 |
||
| replacements | |||||
|
81110
|
81110
81130-2B180 New Genuine Part[12.1986 - 07.1999] CT141,YT140..RHD *ROU |
81130-2B180 |
US $100.46 |
||
|
81110
|
81110
90981-02051
Sealed Beam Unit, No.1
[12.1986 - 07.1999] CT141,YT140..RHD *ROU |
90981-02051 |
— | ||
|
81110
|
81110
90981-02H12 Sealed Beam unit (Set of 2)[12.1986 - 07.1999] CT141,YT140..RHD *ROU |
90981-02H12 |
US $68.10 |
||
|
81110B
|
81110B
90981-13022 Bulb(For Headlamp, No.1)[12.1986 - 07.1999] CT141,YT140..RHD 12V 65/60W,WHITE,12V 65/60W,*REC |
90981-13022 |
US $21.84 |
||
|
81110S
|
81110S
90981-02051
Sealed Beam Unit, No.1
[03.1999 - 07.1999] CT141,YT140..RHD 12V 50W,*WB,12V 50W,*ROU |
90981-02051 |
— | ||
|
81110S
|
81110S
90981-02053 Sealed Beam Unit, No.1[01.1986 - 03.1999] CT141,YT140..RHD 12V 50W,*WB,12V 50W,*ROU |
90981-02053 |
US $33.49 |
||
| replacement | |||||
|
81110S
|
81110S
90981-02051
Sealed Beam Unit, No.1
[01.1986 - 03.1999] CT141,YT140..RHD 12V 50W,*WB,12V 50W,*ROU |
90981-02051 |
— | ||
|
81110T
|
81110T
90981-02052 Sealed Beam Unit, No.2[03.1999 - 07.1999] CT141,YT140..RHD 12V 37.5/60W,*WB,12V 37.5/60W,*ROU |
90981-02052 |
US $50.09 |
||
| replacements | |||||
|
81110T
|
81110T
90981-02H12 Sealed Beam unit (Set of 2)[03.1999 - 07.1999] CT141,YT140..RHD 12V 37.5/60W,*WB,12V 37.5/60W,*ROU |
90981-02H12 |
US $68.10 |
||
|
81110T
|
81110T
90981-02H13
Sealed Beam Unit, No.2
[03.1999 - 07.1999] CT141,YT140..RHD 12V 37.5/60W,*WB,12V 37.5/60W,*ROU |
90981-02H13 |
— | ||
|
81110T
|
81110T
90981-02054 Sealed Beam Unit, No.2[01.1986 - 03.1999] CT141,YT140..RHD 12V 37.5/60W,WHITE,12V 37.5/50W,*ROU |
90981-02054 |
US $33.49 |
||
| replacements | |||||
|
81110T
|
81110T
90981-02H12 Sealed Beam unit (Set of 2)[01.1986 - 03.1999] CT141,YT140..RHD 12V 37.5/60W,WHITE,12V 37.5/50W,*ROU |
90981-02H12 |
US $68.10 |
||
|
81110T
|
81110T
90981-02H13
Sealed Beam Unit, No.2
[01.1986 - 03.1999] CT141,YT140..RHD 12V 37.5/60W,WHITE,12V 37.5/50W,*ROU |
90981-02H13 |
— | ||
|
81111A
|
81111A
81111-14261 Ring, Sealed Beam Retaining, No.1 Rh[01.1986 - 07.1999] CT141,YT140 *ROU |
81111-14261 |
US $8.48 |
||
|
81112
|
81112
81111-14261 Ring, Sealed Beam Retaining, No.1 Rh[01.1986 - 07.1999] CT141,YT140 *ROU |
81111-14261 |
US $8.48 |
||
|
81113
|
81113
81113-14100
Ring, Sealed Beam Mounting, No.1 Rh
[12.1986 - 07.1999] CT141,YT140 *ROU |
81113-14100 |
— | ||
|
81114
|
81114
81154-20170
Ring, Sealed Beam Mounting, No.2 Rh
[12.1986 - 07.1999] CT141,YT140 *ROU |
81154-20170 |
— | ||
|
81121
|
81121
90506-18018 Spring, Headlamp Tension[01.1986 - 07.1999] CT141,YT140 *ROU |
90506-18018 |
US $1.14 |
||
|
81131
|
81131
81131-16230 Screw, Headlamp Adjusting[12.1987 - 07.1999] CT141,YT140 *ROU |
81131-16230 |
US $3.04 |
||
|
81132
|
81132
90041-89003 Nut, Headlamp Self Locking[12.1987 - 07.1999] CT141,YT140 *ROU |
90041-89003 |
US $2.04 |
||
|
81150
|
81150
81150-2B130 Headlamp Assy, Lh[12.1986 - 07.1999] CT141,YT140..RHD *REC |
81150-2B130 |
US $410.59 |
||
|
81150
|
81150
81150-91C03 Headlamp Assy, Lh[12.1986 - 07.1999] CT141,YT140..RHD *ROU |
81150-91C03 |
US $190.74 |
||
| replacements | |||||
|
81150
|
81150
81170-91C03 Unit Assy, Headlamp Daytime Running Light, Lh[12.1986 - 07.1999] CT141,YT140..RHD *ROU |
81170-91C03 |
US $100.46 |
||
|
81150
|
81150
90981-02051
Sealed Beam Unit, No.1
[12.1986 - 07.1999] CT141,YT140..RHD *ROU |
90981-02051 |
— | ||
|
81150
|
81150
90981-02H12 Sealed Beam unit (Set of 2)[12.1986 - 07.1999] CT141,YT140..RHD *ROU |
90981-02H12 |
US $68.10 |
||
|
81151A
|
81151A
81111-14261 Ring, Sealed Beam Retaining, No.1 Rh[01.1986 - 07.1999] CT141,YT140 *ROU |
81111-14261 |
US $8.48 |
||
|
81152
|
81152
81111-14261 Ring, Sealed Beam Retaining, No.1 Rh[01.1986 - 07.1999] CT141,YT140 *ROU |
81111-14261 |
US $8.48 |
||
|
81153
|
81153
81153-14100
Ring, Sealed Beam Mounting, No.1 Lh
[12.1986 - 07.1999] CT141,YT140 *ROU |
81153-14100 |
— | ||
|
81154
|
81154
81114-20210
Ring, Sealed Beam Mounting, No.2 Rh
[12.1986 - 07.1999] CT141,YT140 *ROU |
81114-20210 |
— | ||
|
811162B150
|
811162B150
81116-2B150 Cover, Sealed Beam Unit |
81116-2B150 |
US $2.62 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9018904036
|
9018904036
90189-04036 Nut, Headlamp Self Locking |
90189-04036 |
from US $2.24 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9321914008
|
9321914008
93219-14008 Screw, W/washer(For Bearing Cover Setting) |
93219-14008 |
from US $2.08 |
||
