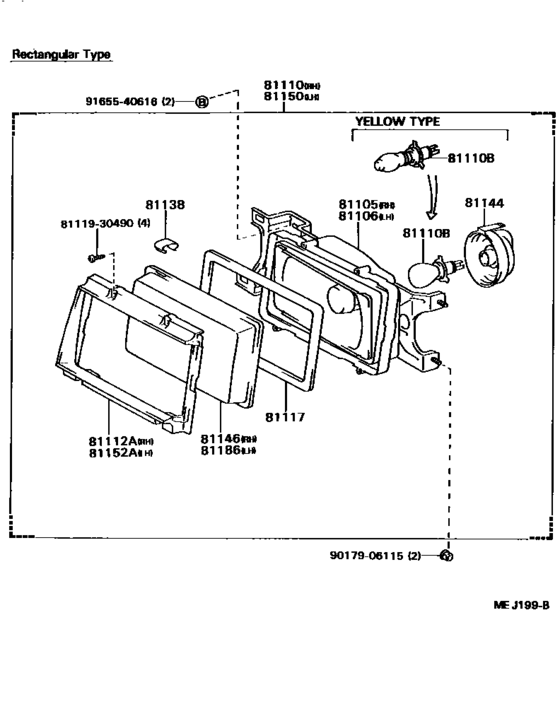

Headlamp ([12.1986 - ] (8612- )) Diagram Toyota CORONA FR
- Year
- 1988 - 1999
- Sales region
- Europe
- Frame
- YT140
- grade
- STD
- body
- SED
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 01.1988
- To
- 07.1999
- Gear Shift Type
- 4F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81105
|
81105
81105-91C01 Housing Sub-Assy, Headlamp, Rh[12.1986 - 07.1999] CT141,YT140 *ROU |
81105-91C01 |
US $59.55 |
||
|
81105
|
81105
81130-2B160 Housing Sub-Assy, Headlamp, Rh[01.1988 - 07.1999] YT140..RHD *REC |
81130-2B160 |
US $291.20 |
||
|
81106
|
81106
81106-91C01 Housing Sub-Assy, Headlamp, Lh[12.1986 - 07.1999] CT141,YT140 *ROU |
81106-91C01 |
US $59.55 |
||
|
81106
|
81106
81170-2B130 Housing Sub-Assy, Headlamp, Lh[01.1988 - 07.1999] YT140..RHD *REC |
81170-2B130 |
US $291.20 |
||
|
81110
|
81110
81110-2B160
Headlamp Assy, Rh
[12.1986 - 07.1999] CT141,YT140..RHD *REC |
81110-2B160 |
— | ||
|
81110
|
81110
81110-2B180 Headlamp Assy, Rh[12.1986 - 07.1999] CT141,YT140..RHD *ROU |
81110-2B180 |
US $190.74 |
||
| replacements | |||||
|
81110
|
81110
81130-2B180 New Genuine Part[12.1986 - 07.1999] CT141,YT140..RHD *ROU |
81130-2B180 |
US $100.46 |
||
|
81110
|
81110
90981-02051
Sealed Beam Unit, No.1
[12.1986 - 07.1999] CT141,YT140..RHD *ROU |
90981-02051 |
— | ||
|
81110
|
81110
90981-02H12 Sealed Beam unit (Set of 2)[12.1986 - 07.1999] CT141,YT140..RHD *ROU |
90981-02H12 |
US $68.10 |
||
|
81110B
|
81110B
90981-13022 Bulb(For Headlamp, No.1)[12.1986 - 07.1999] CT141,YT140..RHD 12V 65/60W,WHITE,12V 65/60W,*REC |
90981-13022 |
US $21.84 |
||
|
81112A
|
81112A
81116-2B160 Rim, Headlamp, Rh[12.1986 - 07.1999] CT141,YT140 *REC |
81116-2B160 |
US $75.71 |
||
|
81117
|
81117
81147-30490
Packing, Headlamp Housing
[12.1986 - 07.1999] CT141,YT140 *REC |
81147-30490 |
— | ||
|
81138
|
81138
81138-20550 Spring, Headlamp[12.1986 - 07.1999] CT141,YT140 *REC |
81138-20550 |
US $3.20 |
||
|
81144
|
81144
81139-30490
Cover, Sealed Beam Unit
[12.1986 - 07.1999] CT141,YT140 *REC |
81139-30490 |
— | ||
|
81146
|
81146
81146-30490 Lens, Headlamp, Rh[01.1988 - 07.1999] YT140..RHD *REC |
81146-30490 |
US $85.90 |
||
|
81150
|
81150
81150-2B130 Headlamp Assy, Lh[12.1986 - 07.1999] CT141,YT140..RHD *REC |
81150-2B130 |
US $410.59 |
||
|
81150
|
81150
81150-91C03 Headlamp Assy, Lh[12.1986 - 07.1999] CT141,YT140..RHD *ROU |
81150-91C03 |
US $190.74 |
||
| replacements | |||||
|
81150
|
81150
81170-91C03 Unit Assy, Headlamp Daytime Running Light, Lh[12.1986 - 07.1999] CT141,YT140..RHD *ROU |
81170-91C03 |
US $100.46 |
||
|
81150
|
81150
90981-02051
Sealed Beam Unit, No.1
[12.1986 - 07.1999] CT141,YT140..RHD *ROU |
90981-02051 |
— | ||
|
81150
|
81150
90981-02H12 Sealed Beam unit (Set of 2)[12.1986 - 07.1999] CT141,YT140..RHD *ROU |
90981-02H12 |
US $68.10 |
||
|
81152A
|
81152A
81156-2B130 Rim, Headlamp, Lh[12.1986 - 07.1999] CT141,YT140 *REC |
81156-2B130 |
US $74.26 |
||
|
81186
|
81186
81186-30600
Lens, Headlamp, Lh
[01.1988 - 07.1999] YT140..RHD *REC |
81186-30600 |
— | ||
|
8111930490
|
8111930490
81119-30490 Screw, Headlamp |
81119-30490 |
US $2.33 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
