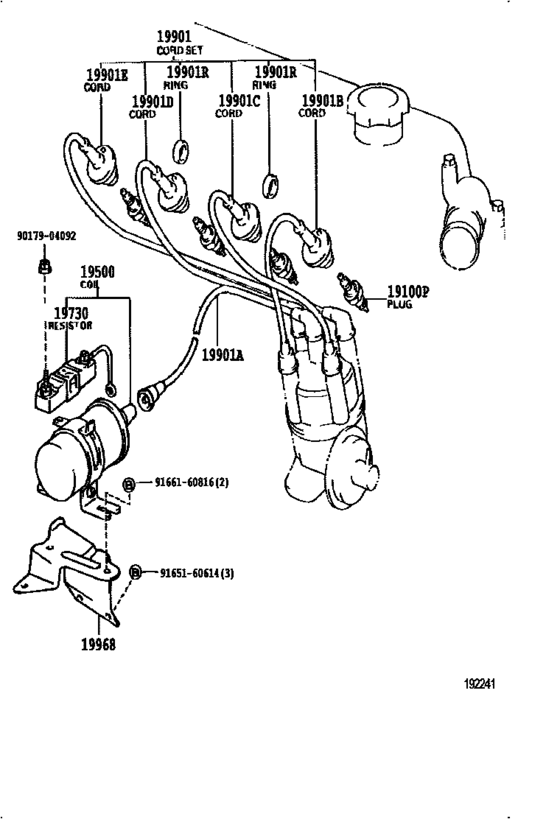

Ignition Coil & Spark Plug ([12.1986 - ] (8612- )2Y) Diagram Toyota CORONA FR
- Year
- 1988 - 1999
- Sales region
- Europe
- Frame
- YT140
- grade
- STD
- body
- SED
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 01.1988
- To
- 07.1999
- Gear Shift Type
- 4F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100P
|
19100P
90919-01059 Plug, Spark[12.1986 - 07.1999] 2Y..YT140 W16EX-U,W16EX-U |
90919-01059 |
US $2.59 |
||
| replacement | |||||
|
19100P
|
19100P
90919-01064 Plug, Spark[12.1986 - 07.1999] 2Y..YT140 W16EX-U,W16EX-U |
90919-01064 |
from US $2.44 |
||
|
19500
|
19500
90919-02156
Coil Assy, Ignition
[12.1986 - 07.1999] 2Y..YT140 |
90919-02156 |
— | ||
|
19730
|
19730
90919-04033
Resistor, Ignition Coil
[12.1986 - 07.1999] 2Y..YT140 |
90919-04033 |
— | ||
| replacement | |||||
|
19730
|
19730
90919-04027 Resistor, Ignition Coil[12.1986 - 07.1999] 2Y..YT140 |
90919-04027 |
US $23.94 |
||
|
19901
|
19901
90919-21495 Cord Set, Coil & Spark, W/resistiveCOIL & SPARK, W/RESISTIVE [12.1986 - 07.1999] 2Y..YT140 |
90919-21495 |
US $119.39 |
||
|
19901A
|
19901A
90919-13039
Cord, Coil Resistive
[12.1986 - 07.1999] 2Y..YT140 |
90919-13039 |
— | ||
|
19901B
|
19901B
90919-12469
Cord, Spark Plug Resistive, No.1
[12.1986 - 07.1999] 2Y..YT140 |
90919-12469 |
— | ||
|
19901C
|
19901C
90919-12470
Cord, Spark Plug Resistive, No.2
[12.1986 - 07.1999] 2Y..YT140 |
90919-12470 |
— | ||
|
19901D
|
19901D
90919-12471
Cord, Spark Plug Resistive, No.3
[12.1986 - 07.1999] 2Y..YT140 |
90919-12471 |
— | ||
|
19901E
|
19901E
90919-12472
Cord, Spark Plug Resistive, No.4
[12.1986 - 07.1999] 2Y..YT140 |
90919-12472 |
— | ||
|
19901R
|
19901R
90202-11067 Ring, Rubber Spark Plug Resistive Cord[12.1986 - 07.1999] 2Y..YT140 |
90202-11067 |
US $1.49 |
||
|
19968
|
19968
19968-72030
Bracket, Ignition Coil
[01.1988 - 07.1999] 2Y..YT140..RHD |
19968-72030 |
— | ||
|
9017904092
|
9017904092
90179-04092
NUT
|
90179-04092 |
— | ||
| replacement | |||||
|
9017904092
|
9017904092
90179-04001 NUT |
90179-04001 |
US $2.88 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9166160816
|
9166160816
91661-60816 Bolt |
91661-60816 |
US $2.08 |
||
