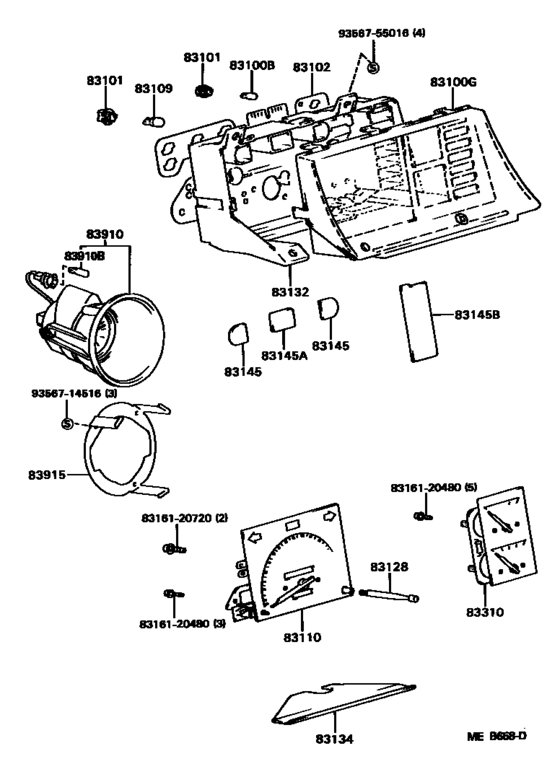

Meter ([01.1986 - ] (8201-8310)3H ; (8601- )CT141,YT140..RHD) Diagram Toyota CORONA FR
- Year
- 1988 - 1999
- Sales region
- Europe
- Frame
- YT140
- grade
- STD
- body
- SED
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 01.1988
- To
- 07.1999
- Gear Shift Type
- 4F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[01.1982 - 07.1999] CT14#,RT14#,ST141,TT14#,YT140 12V 1.2W W/O SOCKET,12V 1.4W |
90981-11018 |
from US $2.07 |
||
|
83100B
|
83100B
90981-11035 Bulb, Combination Meter, No.1[07.1988 - 07.1999] CT141,YT140..RHD 14V 3.4W,12V 3.4W,LONG LIFE TYPE |
90981-11035 |
from US $1.38 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[01.1982 - 07.1999] CT14#,RT14#,ST141,TT14#,YT140 12V 3.4W,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[01.1982 - 07.1999] CT14#,RT14#,ST141,TT14#,YT140 12V 3.4W,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83138-2B040 Glass, Combination Meter[01.1988 - 07.1999] YT140..RHD |
83138-2B040 |
US $152.88 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[01.1982 - 07.1999] CT14#,RT14#,ST141,TT14#,YT140 BULB:12V 1.4W(OD=11.3) |
83101-14040 |
US $2.98 |
||
|
83101
|
83101
83101-20040 Socket, Bulb(For Map Lamp)[01.1982 - 07.1999] CT14#,RT142,ST141,TT14#,YT140..RHD BULB:12V 3.4W(OD=18) |
83101-20040 |
from US $1.77 |
||
|
83101
|
83101
83101-20070 Socket Sub-Assy, Combination Meter Bulb[07.1988 - 07.1999] CT141,YT140..RHD BULB:12V 3.4W,LONG LIFE TYPE |
83101-20070 |
US $7.84 |
||
|
83102
|
83102
83247-2D020
Plate Sub-Assy, Combination Meter Circuit, No.1
[01.1988 - 07.1999] YT140..RHD |
83247-2D020 |
— | ||
|
83109
|
83109
83109-20060 Bulb, Combination Meter, No.2[01.1986 - 07.1988] CT141,YT140..RHD GREEN CAP BULB,12V 3.4W |
83109-20060 |
US $6.84 |
||
|
83109
|
83109
83109-94350 Bulb, Combination Meter, No.1[07.1988 - 07.1999] CT141,YT140..RHD 14V 3.4W W(GREEN CAP),GREEN CAP BULB,12V 3.4W |
83109-94350 |
US $8.59 |
||
|
83110
|
83110
83110-2B690
Speedometer Assy
[01.1988 - 07.1999] YT140..RHD |
83110-2B690 |
— | ||
|
83110
|
83110
83110-2B700 Speedometer Assy[01.1988 - 07.1999] YT140..RHD MILE & KM |
83110-2B700 |
US $403.31 |
||
|
83128
|
83128
83128-20710 Knob, Trip Counter[01.1986 - 07.1999] CT141,YT140..RHD |
83128-20710 |
US $8.74 |
||
|
83132
|
83132
83132-2B380 Case, Combination Meter[01.1986 - 07.1988] CT141,YT140..RHD |
83132-2B380 |
US $65.96 |
||
|
83134
|
83134
83134-2B340 Cover, Combination Meter, No.1[01.1986 - 07.1999] CT141,YT140..RHD |
83134-2B340 |
US $23.44 |
||
|
83145
|
83145
83145-2B060 Lens, Meter, No.1[01.1982 - 07.1999] CT14#,RT142,TT14#,YT140..RHD TURN |
83145-2B060 |
US $4.22 |
||
|
83145A
|
83145A
83145-2B080 Lens, Meter, No.2[01.1982 - 07.1999] CT14#,RT142,TT14#,YT140..RHD BEAM |
83145-2B080 |
US $4.22 |
||
|
83145B
|
83145B
83145-2D020
Lens, Meter, No.3
[01.1988 - 07.1999] YT140..RHD |
83145-2D020 |
— | ||
|
83310
|
83310
83243-2B160 Gage Assy, Fuel ReceiverFUEL RECEIVER [01.1988 - 07.1999] YT140..RHD |
83243-2B160 |
US $182 |
||
|
83910
|
83910
83920-20010 Clock Assy[01.1986 - 07.1999] CT141,YT140..RHD |
83920-20010 |
US $334.88 |
||
|
83910B
|
83910B
84999-50010 Bulb, Indicator Lamp[01.1986 - 07.1999] CT141,YT140..RHD 12V 3.4W,12V 3.4W |
84999-50010 |
US $3.14 |
||
|
83915
|
83915
83915-20020 Bracket, Clock[01.1986 - 07.1999] CT141,YT140..RHD |
83915-20020 |
US $19.80 |
||
|
8316120480
|
8316120480
83161-20480 Case, Combination Meter Mirror, No.1 |
83161-20480 |
US $1.46 |
||
|
8316120720
|
8316120720
83161-20720 Case, Combination Meter Mirror, No.1 |
83161-20720 |
US $1.46 |
||
|
9356714516
|
9356714516
93567-14516 New Genuine Part |
93567-14516 |
US $0.87 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
