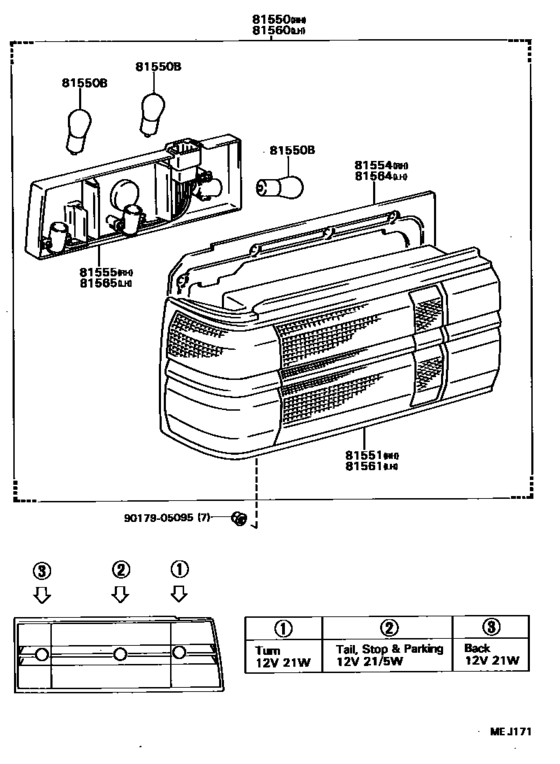

Rear Combination Lamp ([12.1986 - ] (8612- )) Diagram Toyota CORONA FR
- Year
- 1988 - 1999
- Sales region
- Europe
- Frame
- YT140
- grade
- STD
- body
- SED
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 01.1988
- To
- 07.1999
- Gear Shift Type
- 4F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-20750
Lamp Assy, Rear Combination, Rh
[12.1986 - 07.1999] CT141,YT140 |
81550-20750 |
— | ||
|
81550
|
81550
81550-20830
Lamp Assy, Rear Combination, Rh
[12.1986 - 07.1999] CT141,YT140 CHROME PLATED |
81550-20830 |
— | ||
|
81550B
|
81550B
99132-11210 Bulb (12V 21W)[12.1986 - 07.1999] CT141,YT140 12V 21W,12V 21W |
99132-11210 |
from US $2.72 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[08.1985 - 07.1999] CT141,ST141,YT140..SED..GEN 12V 21/5W,12V 21/5W |
99132-21210 |
from US $2.81 |
||
|
81551
|
81551
81551-20750
Lens, Rear Combination Lamp, Rh
[12.1986 - 07.1999] CT141,YT140 |
81551-20750 |
— | ||
|
81551
|
81551
81551-20830
Lens, Rear Combination Lamp, Rh
[12.1986 - 07.1999] CT141,YT140 CHROME PLATED |
81551-20830 |
— | ||
|
81554
|
81554
81552-20750 Gasket, Rear Combination Lamp Body, Rh[12.1986 - 07.1999] CT141,YT140 |
81552-20750 |
US $17.04 |
||
|
81555
|
81555
81555-20750 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[12.1986 - 07.1999] CT141,YT140 |
81555-20750 |
US $42.37 |
||
|
81560
|
81560
81560-20690 Lamp Assy, Rear Combination, Lh[12.1986 - 07.1999] CT141,YT140 |
81560-20690 |
US $331.97 |
||
| replacement | |||||
|
81560
|
81560
81561-20690
Lens, Rear Combination Lamp, Lh
[12.1986 - 07.1999] CT141,YT140 |
81561-20690 |
— | ||
|
81560
|
81560
81560-20760
Lamp Assy, Rear Combination, Lh
[12.1986 - 07.1999] CT141,YT140 CHROME PLATED |
81560-20760 |
— | ||
|
81561
|
81561
81561-20690
Lens, Rear Combination Lamp, Lh
[12.1986 - 07.1999] CT141,YT140 |
81561-20690 |
— | ||
|
81561
|
81561
81561-20760 Lens, Rear Combination Lamp, Lh[12.1986 - 07.1999] CT141,YT140 CHROME PLATED |
81561-20760 |
US $269.36 |
||
|
81564
|
81564
81562-20690 Gasket, Rear Combination Lamp Body, Lh[12.1986 - 07.1999] CT141,YT140 |
81562-20690 |
US $17.04 |
||
|
81565
|
81565
81565-20690 Socket & Wire Sub-Assy, Rear Combination Lamp, Lh[12.1986 - 07.1999] CT141,YT140 |
81565-20690 |
US $42.37 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
