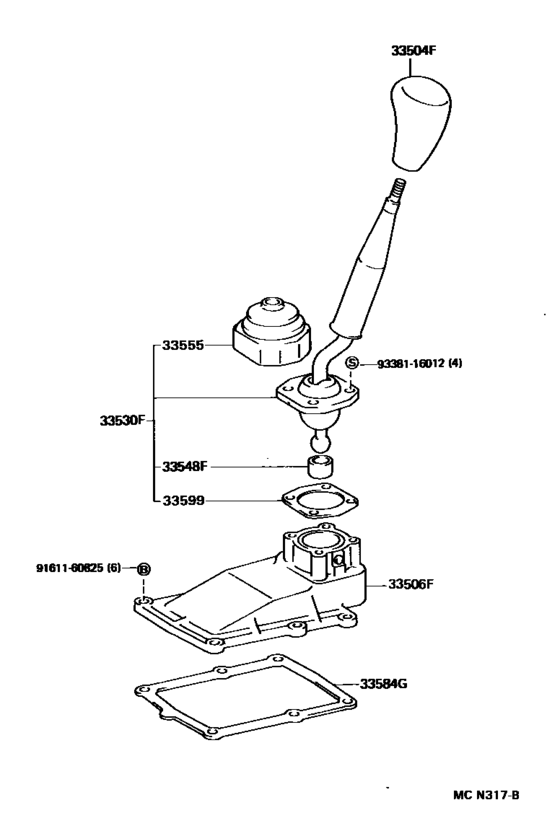

Shift Lever & Retainer ([10.1991 - ] (9110- )) Diagram Toyota CORONA FR
- Year
- 1988 - 1999
- Sales region
- Europe
- Frame
- YT140
- grade
- STD
- body
- SED
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 01.1988
- To
- 07.1999
- Gear Shift Type
- 4F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-14040-01 Knob Sub-Assy, Shift Lever[01.1988 - 07.1999] YT140 BLACK,BLACK |
33504-14040-01 |
US $39.89 |
||
| replacement | |||||
|
33504F
|
33504F
33504-14040-22
Knob Sub-Assy, Shift Lever (Black)
[01.1988 - 07.1999] YT140 BLACK,BLACK |
33504-14040-22 |
— | ||
|
33504F
|
33504F
33504-14060-01 Knob Sub-Assy, Shift Lever[01.1988 - 07.1999] YT140..RHD LARGE TYPE,BLACK,BLACK |
33504-14060-01 |
US $40.33 |
||
| replacement | |||||
|
33504F
|
33504F
33504-14040-22
Knob Sub-Assy, Shift Lever (Black)
[01.1988 - 07.1999] YT140..RHD LARGE TYPE,BLACK,BLACK |
33504-14040-22 |
— | ||
|
33506F
|
33506F
33570-22070
Retainer Sub-Assy, Control Shift Lever (For Floor Shift)
[01.1986 - 10.1991] CT141,YT140 |
33570-22070 |
— | ||
| replacement | |||||
|
33506F
|
33506F
33570-30010 Retainer Sub-Assy, Control Shift Lever (For Floor Shift)[01.1986 - 10.1991] CT141,YT140 |
33570-30010 |
US $84.36 |
||
|
33506F
|
33506F
33570-30010 Retainer Sub-Assy, Control Shift Lever (For Floor Shift)[10.1991 - 07.1999] CT141,YT140 |
33570-30010 |
US $84.36 |
||
|
33530F
|
33530F
33530-14331 Lever Assy, Shift (For Floor Shift)[06.1986 - 07.1999] CT141,YT140..RHD |
33530-14331 |
US $123.76 |
||
|
33548F
|
33548F
33548-31010 Bush, Shift Lever[08.1984 - 10.1991] CT141,RT142,YT140..MTM |
33548-31010 |
from US $3.89 |
||
|
33548F
|
33548F
33548-35010
Bush, No.1, Shift Lever (For Floor Shift)
[10.1991 - 03.1992] CT141,YT140 |
33548-35010 |
— | ||
| replacement | |||||
|
33548F
|
33548F
33548-31010 Bush, Shift Lever[10.1991 - 03.1992] CT141,YT140 |
33548-31010 |
from US $3.89 |
||
|
33555
|
33555
33555-22050 Boot, Shift Lever[08.1984 - 07.1999] CT141,RT142,YT140..MTM |
33555-22050 |
from US $8.80 |
||
|
33584G
|
33584G
33584-30010 Gasket, No.2 (For Floor Shift)[10.1991 - 07.1999] CT141,YT140 |
33584-30010 |
US $2.56 |
||
|
33599
|
33599
33584-22020 Gasket, Control Shift Lever Retainer, No.2[08.1984 - 07.1999] CT141,RT142,YT140..MTM |
33584-22020 |
from US $0.96 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.93 |
||
|
9338116012
|
9338116012
93381-16012 Screw |
93381-16012 |
US $2.24 |
||
