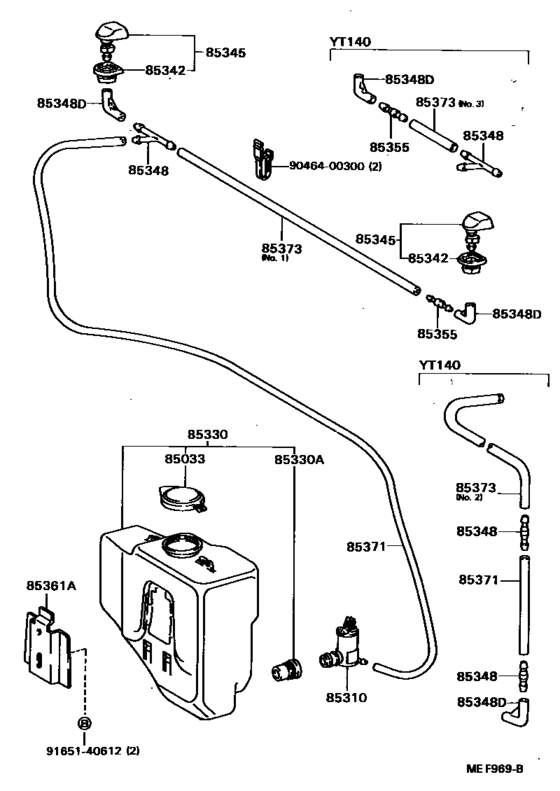

Windshield Washer ([01.1988 - ] (8508- )ST141,YT140..LHD ; (8801- )YT140.. RHD) Diagram Toyota CORONA FR
- Year
- 1988 - 1999
- Sales region
- Europe
- Frame
- YT140
- grade
- STD
- body
- SED
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 01.1988
- To
- 07.1999
- Gear Shift Type
- 4F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85033
|
85033
85316-34050 Cap Assy, Windshield Washer[12.1993 - 07.1999] YT140..RHD |
85316-34050 |
from US $1.75 |
||
|
85033
|
85033
85332-12650
Cap Assy, Windshield Washer
[03.1989 - 12.1993] YT140..RHD |
85332-12650 |
— | ||
| replacement | |||||
|
85033
|
85033
85316-34050 Cap Assy, Windshield Washer[03.1989 - 12.1993] YT140..RHD |
85316-34050 |
from US $1.75 |
||
|
85033
|
85033
85332-16010
Cap Assy, Windshield Washer
[01.1982 - 03.1989] CT14#,RT140,ST141,TT14#,YT140 |
85332-16010 |
— | ||
|
85310
|
85310
85310-22080 Motor And Pump Assy, Windshield Washer[09.1982 - 07.1999] CT14#,RT14#,ST141,TT14#,YT140 |
85310-22080 |
from US $49.97 |
||
|
85330
|
85330
85330-12100
Jar Assy, Windshield Washer
[01.1988 - 03.1989] YT140..RHD |
85330-12100 |
— | ||
|
85330
|
85330
85331-20720
Jar Assy, Windshield Washer
[03.1989 - 07.1999] YT140..RHD |
85331-20720 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[01.1982 - 07.1999] CT14#,RT14#,ST141,TT14#,YT140 |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[01.1982 - 07.1999] CT14#,RT14#,ST141,TT14#,YT140 |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[01.1982 - 07.1999] CT14#,RT14#,ST141,TT14#,YT140 |
90068-32002 |
US $7.46 |
||
|
85345
|
85345
85035-20200
Nozzle, Windshield Washer
[12.1986 - 07.1999] CT141,YT140..RHD |
85035-20200 |
— | ||
| replacement | |||||
|
85345
|
85345
85381-35040 Nozzle Sub-Assy, Washer[12.1986 - 07.1999] CT141,YT140..RHD |
85381-35040 |
from US $11.36 |
||
|
85348
|
85348
85348-12250 Joint, Windshield Washer Hose, No.1[12.1986 - 07.1999] CT141,YT140 3-WAY |
85348-12250 |
from US $0.55 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[12.1986 - 07.1999] CT141,YT140 2-WAY,NO.2 |
85349-89122 |
from US $1.25 |
||
|
85348D
|
85348D
85355-14481 Joint, Windshield Washer Elbow, No.1[04.1983 - 07.1999] CT141,ST141,YT140..RHD |
85355-14481 |
US $0.98 |
||
|
85355
|
85355
85031-12250
Valve Sub-Assy, Washer
[01.1982 - 12.1986] CT14#,RT14#,ST141,TT14# |
85031-12250 |
— | ||
|
85361A
|
85361A
85361-30013
Bracket Assy, Windshield Washer
[01.1988 - 07.1999] YT140..RHD |
85361-30013 |
— | ||
|
85371
|
85371
90446-06013 Hose, Windshield Washer (From Motor To Joint)[04.1983 - 07.1999] CT141,ST141,YT140..RHD *H,L=400 |
90446-06013 |
from US $0.70 |
||
|
85373
|
85373
90099-33299 Joint, Windshield Washer Elbow, No.2[12.1986 - 07.1999] CT141,YT140 *H,L=480,NO.2 |
90099-33299 |
from US $4.37 |
||
|
85373
|
85373
90446-06013 Hose, Windshield Washer (From Motor To Joint)[12.1986 - 07.1999] CT141,YT140 *H,L=30,NO.3,NO.1 |
90446-06013 |
from US $0.70 |
||
|
9046400300
|
9046400300
90464-00300
New Genuine Part
|
90464-00300 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
